4500 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

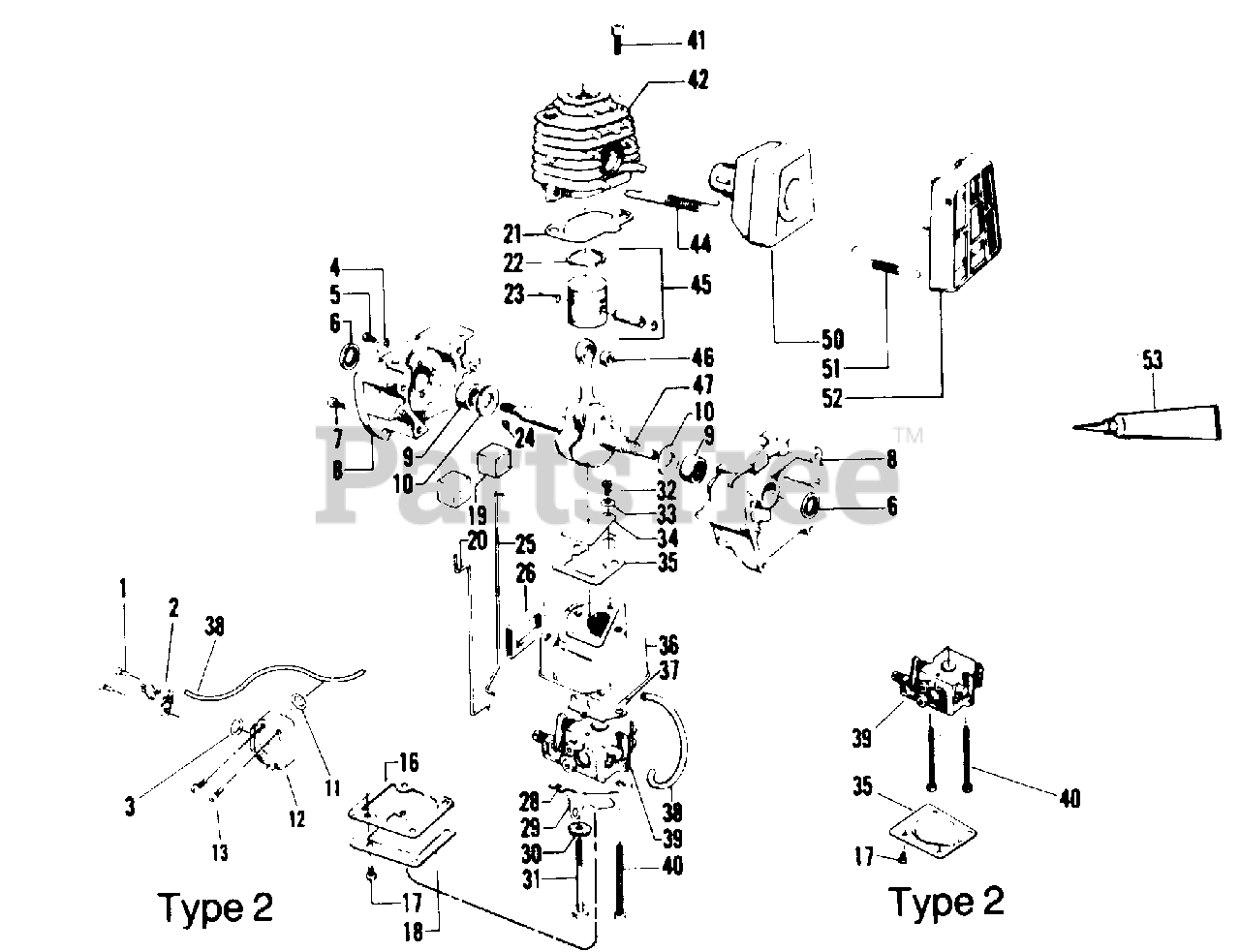

POWER UNIT Parts Diagram

  • Title

1

Poulan 530015235

Screw - Type 2 only

$

$

Not available

2

Poulan 530010677

Accumulator Cap Ass'y. - Type 2 only (Incl. Cap, Screen & O-Ring)

$

$

Not available

3

Poulan 530019128

O-Ring - Accumulator Chamber Type 2 only

$

$

Not available

4

Poulan 530024651

Choke Wire - Clamp - Type 1 only

$

$

Not available

5

Poulan 530015004

Choke Rod Clamp - Screw - #8 - 32 x 5/16" - Pan Hd. - Type 1 only

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530019059

Crankcase - Seal

$

$

Not available

7

Poulan 530015369

Screw - Crankcase #10 - 24 x 5/8" - Fil. Hd.

$

$

Not available

8

Poulan 530010757

Crankcase Assembly (Incl. #6, 9 & Qty. 4 of #7)

$

$

Not available

9

Poulan 530032029

Bearing - Crankshaft

$10.99

$

In Stock, only 4 left!

0

10

Poulan 530015351

Crankshaft Thrust - Washer

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530019131

O-Ring (Orifice) - Type 2 only

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530010651

Accumulator Ass'y. (Incl. #2, 3 & 11) Type 2 only

$

$

Not available

13

Poulan 530015565

Screw - Type 2 only

$

$

Not available

16

Poulan 530019112

Carburetor Case Cover - Gasket - Type 1 only

$

$

Not available

17

Poulan 530015235

Carburetor Case Cover - Screw #8 - 18 x 9/16" - Pan Hd.

$

$

Not available

18

Carburetor Case - Cover - See Service Ref. 4.

$

$

Not available

19

Poulan 530023373

Throttle Choke Wire Boot

$

$

Not available

19

Type 1

$

$

Not available

19

Type 2

$

$

Not available

20

Choke Wire - See Service Ref. 4. - Type 1 only

$

$

Not available

21

Poulan 530019111

Cylinder - Gasket
(Superseded to 530069219)

$

$

Not available

22

Poulan 530024302

Piston Ring

$

$

Not available

23

Poulan 530015162

Wrist Pin - Retainer

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530015126

Flywheel - Key

$3.99

$

Usually ships in 3-10 days

0

25

Throttle Wire

$

$

Not available

25

Poulan 530024902

Type 1

$

$

Not available

25

Poulan 530026177

Type 2

$

$

Not available

26

Poulan 530019105

Carburetor Case - Seal

$

$

Not available

28

Choke Wire Guide Plate - See Service Ref. 4.

$

$

Not available

29

Poulan 530024558

Choke Shutter - Type 1 only

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015254

Wave Washer - #10 - Type 1 only

$3.99

$

In Stock, only 2 left!

0

31

Poulan 530015404

Carburetor Shoulder - Screw - Type 1 only #10 - 24 x 2-1/8" - Fil. Hd.

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530015241

Reed Valve - Screw - #6 - 19 x 5/16"

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530023367

Washer - #6

$

$

Not available

34

Poulan 530024438

Reed Valve

$

$

Not available

35

Poulan 530019108

Carburetor Case to Crankcase - Gasket

$4.99

$

Usually ships in 3-10 days

0

36

Carburetor Housing

$

$

Not available

36

Poulan 530024409

Type 1

$

$

Not available

36

Poulan 530026046

Type 2

$

$

Not available

37

Poulan 530019115

Carburetor Gasket

$

$

Not available

38

Carburetor Fuel Line

$

$

Not available

38

Poulan 530021043

Type 1

$

$

Not available

38

Poulan 530021055

Type 2

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530035183

Carburetor - See Service Ref. 2.

$

$

Not available

40

Poulan 530015379

Type 1

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530015566

Type 2

$1.49

$

Usually ships in 3-10 days

0

41

Poulan 530015239

Cylinder - Screw - #1/4 - 20 x 3/4" - Socket Head

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530012190

Cylinder

$

$

Not available

44

Poulan 530024903

Muffler Attachment - Spring
(Superseded to 530036409)

$

$

Not available

45

Poulan 530022198

Piston Kit

$

$

Not available

46

Poulan 530032057

Wrist Pin Bearing

$

$

Not available

47

Poulan 530026675

Crankshaft & Rod Assembly

$121.99

$

Usually ships in 3-10 days

0

51

Poulan 530024932

Spring - Muffler Guard

$

$

Not available

52

Poulan 530024855

Muffler - Guard

$7.49

$

Usually ships in 3-10 days

0

53

Poulan 530030054

Crankcase - Sealant (Optional)

$

$

Not available
