4500 - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

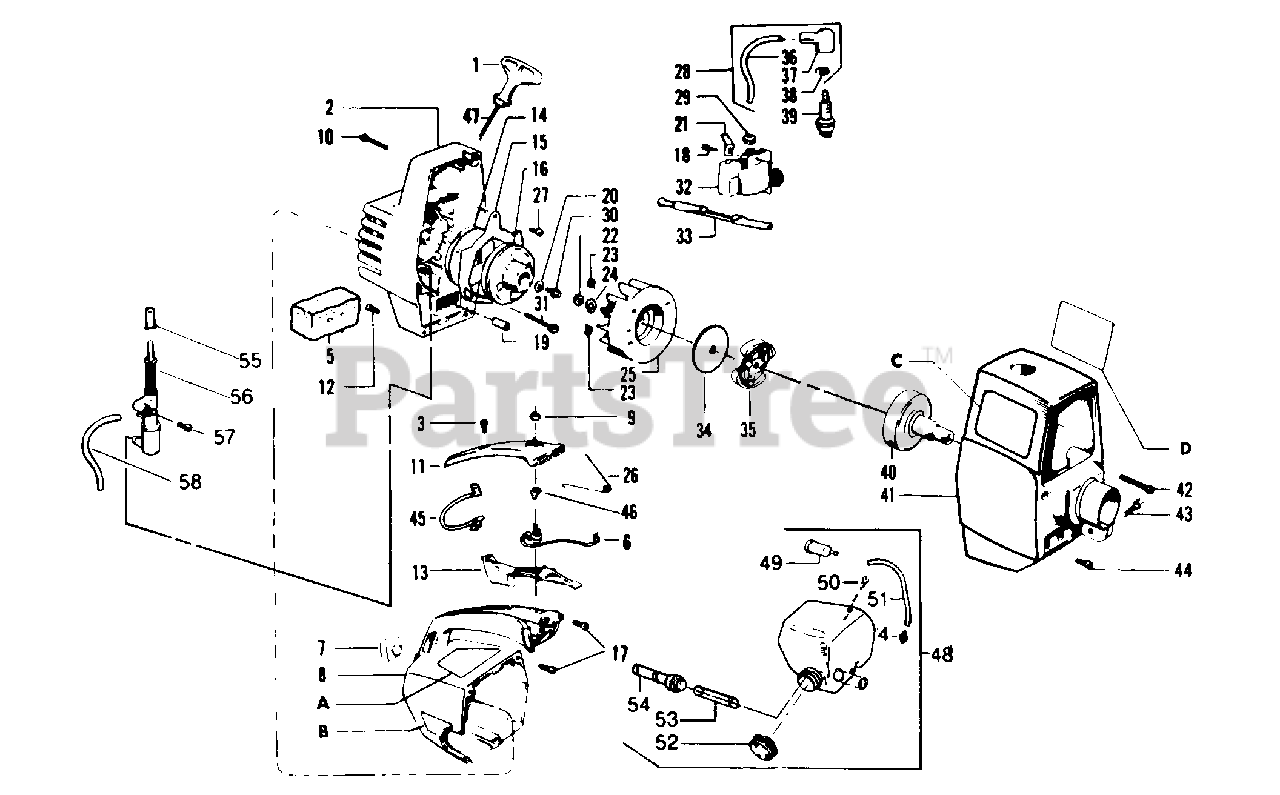

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 530026735

Starter Handle
(Superseded to 530027569)

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530069178

Fan Housing Kit (Incl. #15, 19, 27 & 31) -See Service Ref. 6.

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530015247

Screw - Handle Cover - #8 - 16 x 3/4" - Pan Head

$

$

Not available

4

Poulan 530025472

Fuel Line Fitting - Type 1 Only

$3.99

$

In Stock, only 2 left!

0

5

Poulan 530024371

Air Filter

$7.49

$

In Stock, only 1 left!

0

6

Poulan 530069182

Grounding Switch Kit (Incl. #9, 21, 45 & 46)

$

$

Not available

7

Poulan 530024436

Fuel Tank Housing - Bumper

$

$

Not available

8

Poulan 530024656

Handle & Fuel Tank Housing

$

$

Not available

9

Poulan 530023575

Grounding Switch - Nut
(Superseded to 530002582)

$

$

Not available

10

Fan Housing Top - Screw - #10 - 24 x 1-1/2" - Sems. See Service Ref. 6.

$

$

Not available

11

Poulan 530024665

Handle Cover

$

$

Not available

12

Fan Housing Bottom - Screw - #10 - 24 x 5/8" - Sems. See Service Ref. 6.

$

$

Not available

13

Poulan 530024365

Trigger - Throttle

$

$

Not available

14

Starter Recoil Spring - Type 1 - See Service Ref. 3.

$

$

Not available

14

Poulan 530042067

Type 2
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

15

Poulan 530026035

Air Baffle - (Incl. #20)

$

$

Not available

16

Starter Pulley - See Service Ref. 3.

$

$

Not available

17

Poulan 530015367

Fan Housing to Handle & Fuel Tank - Screw - #10 - 14 x 3/4" - Pan Head
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

18

Poulan 530015128

Ignition Module - Screw - #8 - 32 x 3/4" - Fil. Hd.
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530026122

Spacer - Type 1 only

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 530015123

#10 Starter Pulley - Washer

$4.99

$

In Stock, only 4 left!

0

21

Poulan 530025995

Electrical Tab 45ø

$0.99

$

Usually ships in 3-10 days

0

22

Poulan 530626605

Flywheel - Nut - #5/16 - 24" - Hex

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530042059

Starter Dog - Spring
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

24

Poulan 530015127

Flywheel - Washer

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 530039114

Flywheel Assembly (Incl. #23)

$

$

Not available

26

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

27

Air Baffle - Screw - #10 - 24 x 3/8" - Pan Hd. - See Service Ref. 6.

$

$

Not available

28

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

HIGH TENSION LEAD NLA

$

$

Not available

29

Poulan 530024435

Plug Wire - Grommet

$3.99

$

Usually ships in 3-10 days

0

30

Starter Pulley - Screw - #10 - 3/4" - Hex Washer Head - See Service Ref. 6.

$

$

Not available

31

Air Baffle - Screw - #10 - 24 x 1-3/16" - Plastite - Type 1

Note: See Service Ref. 6.

$

$

Not available

32

Poulan 530069181

Ignition Module Kit

$

$

Not available

33

Poulan 530024303

Choke Knob - Type 1 only

$

$

Not available

34

Poulan 530069196

Clutch Washer - Kit

$

$

Not available

35

Poulan 530069194

Clutch Assembly - Kit (Incl. Clutch Washer) See Service Ref. 1 & 5.

$21.99

$

Usually ships in 3-10 days

0

36

Poulan 530039082

High Tension - Lead Wire

$

$

Not available

37

Poulan 530003934

Spark Plug - Boot

$

$

Not available

38

Poulan 530003933

Spark Plug Lead - Connector
(Superseded to 507475326)

$

$

Not available

39

Poulan 530030077

Spark Plug (Champion CJ-14)

$

$

Not available

40

Poulan 530010797

Clutch & Drive Adaptor - Drum

$

$

Not available

41

Poulan 530011778

Shroud

$

$

Not available

42

Poulan 530015376

Shroud - Screw Top - #10 - 24 x 1-1/3" - Fil. Head

$

$

Not available

43

Poulan 530093802

Pinch Clamp - Bolt - #1/4 - 20 x 1" - Hex Cap

$

$

Not available

44

Poulan 530015168

Shroud - Screw Bottom - #10 - 24 x 5/8" - Fil. Head

$

$

Not available

45

Poulan 530039122

Grounding Switch - Lead Wire

$3.99

$

Usually ships in 3-10 days

0

46

Grounding Switch Washer

$

$

Not available

46

Poulan 530024569

Type 1

$

$

Not available

46

Poulan 530015412

Type 2

$

$

Not available

47

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

48

Fuel Tank Ass'y.

$

$

Not available

48

Poulan 530010776

Type 1

$

$

Not available

48

Poulan 530010773

Type 2

$

$

Not available

49

Poulan 530091878

Fuel Pick-up Ass'y.

$

$

Not available

50

Poulan 530026119

Duck Bill Valve

$4.49

$

In Stock, Qty 19

0

51

Fuel Line

$

$

Not available

51

Poulan 530021042

Type 1

$

$

Not available

51

Poulan 530021054

Type 2

$

$

Not available

52

Poulan 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

53

Poulan 530021052

Fuel Inlet Line

$

$

Not available

54

Poulan 530026109

Fuel Filter (Inlet Line)

$

$

Not available

55

Poulan 530026032

Injector Button

$

$

Not available

56

Poulan 530010738

Pump Ass'y. (Incl. #58)

$

$

Not available

57

Poulan 530015563

Screw

$

$

Not available

58

Poulan 530021053

Pump to Accumulator Line

$

$

Not available

A

Starting Instruction Decal

$

$

Not available

A

Poulan 530026511

Type 1

$

$

Not available

A

Poulan 530026145

Type 2

$

$

Not available

B

Poulan 530025303

Decal - Warning - Fuel Cap

$

$

Not available

C

Poulan 530025269

Decal - Shroud (Right) (Not a serviceable part)

$

$

Not available

D

Poulan 530025271

Decal - Shroud (Left) (Not a serviceable part)

$

$

Not available
