Parts Home > Gravely > Other Equipment > 45000 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start > FRAME

45000 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

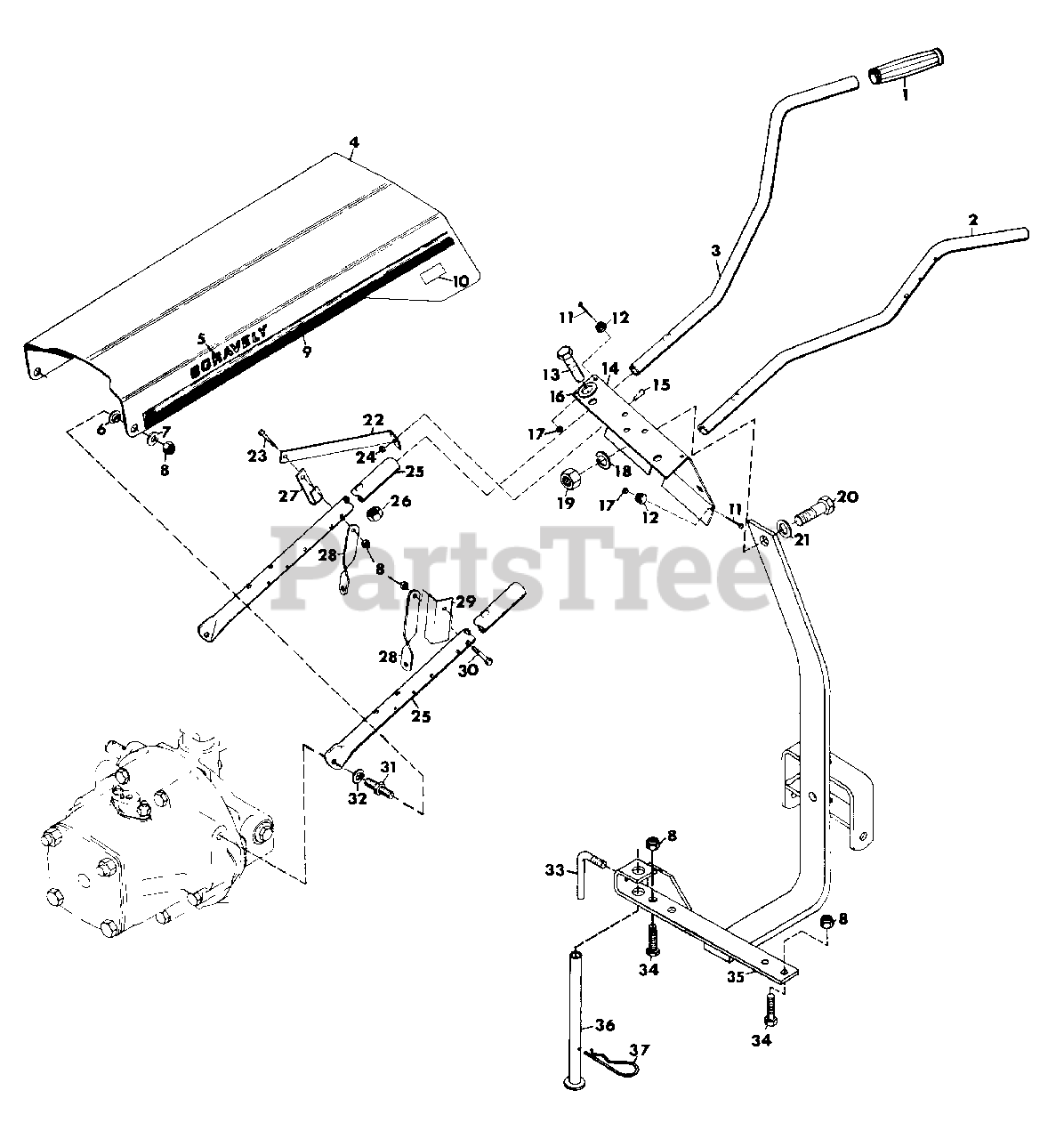

45000 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start > Parts Diagrams (8) > FRAME

  • Title
010671

1

GRIP, HAND

Part# 010671 (Superseded to 20046100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

010658

2

BAR, LEFT HANDLE

Part# 010658 (Superseded to 20045500)

OEM Warranty Repair Part for Gravely

Not available

011982

3

BAR, RIGHT HANDLE

Part# 011982 (Superseded to 21366300)

OEM Warranty Repair Part for Gravely

Not available

021027

4

HOOD

Part# 021027 (Superseded to 21134600)

OEM Warranty Repair Part for Gravely

Not available

024588

5

DECAL, GRAVELY LOGO

Part# 024588 (Superseded to 05201500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

024815

6

BUSHING

Part# 024815 (Superseded to 05515800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

120394

7

WASHER, FLAT .406X.812X.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

456004

8

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

032184

9

DECAL, SIDE STRIPE

Part# 032184 (Superseded to 20563900)

OEM Warranty Repair Part for Gravely

Not available

024579

10

DECAL, MODEL 5200

Part# 024579 (Superseded to 20413000)

OEM Warranty Repair Part for Gravely

Not available

024580

DECAL, MODEL 5240

Part# 024580 (Superseded to 20413100)

OEM Warranty Repair Part for Gravely

Not available

159341

11

SCREW, MACH. 6-32X5/8 PHD

Part# 159341 (Superseded to 06110700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.31

018183

12

BUMPER

Part# 018183 (Superseded to 07017400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

181705

13

BOLT, HEX 1/2-20X2

Part# 181705 (Superseded to 21060300)

OEM Warranty Repair Part for Gravely

Not available

024751

14

PANEL, INSTRUMENT MANUAL START

Part# 024751 (Superseded to 58501800)

OEM Warranty Repair Part for Gravely

Not available

180018

15

BOLT, HEX 1/4-20X.625

Part# 180018 (Superseded to 05932000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120396

16

WASHER, FLAT .531X1.062X.095

Part# 120396 (Superseded to 06441900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

427254

17

NUT, MACH. LOCK 6-32

Part# 427254 (Superseded to 06538900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

121574

18

WASHER, LOCK 5/8 SP

Part# 121574 (Superseded to 06309500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

124589

19

NUT, HEX 5/8-11

Part# 124589 (Superseded to 06535600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

271547

20

BOLT, HEX 5/8-11X1.50

Part# 271547 (Superseded to 05968700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.06

421879

21

WASHER, FLAT .656X1.250X.100

Part# 421879 (Superseded to 06430300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

010996

22

BRACE, INSTRUMENT PANEL

Part# 010996 (Superseded to 21335500)

OEM Warranty Repair Part for Gravely

Not available

180134

23

BOLT, HEX 3/8-16X2.50

Part# 180134 (Superseded to 05958400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

419454

24

NUT, LOCK 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

040402

25

TUBE, SUPPORT

Part# 040402 (Superseded to 21253400)

OEM Warranty Repair Part for Gravely

Not available

120371

26

NUT, HEX 1/2-20

Part# 120371 (Superseded to 21050100)

OEM Warranty Repair Part for Gravely

Not available

010684

27

RETAINER, 2-SPEED CONTROL

Part# 010684 (Superseded to 21333600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

010655

28

BRACE, HANDLE

Part# 010655 (Superseded to 21333100)

OEM Warranty Repair Part for Gravely

Not available

010933

29

STOP, ROD

Part# 010933 (Superseded to 21335000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

180132

30

BOLT, HEX 3/8-16X2.25

Part# 180132 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

021028

31

STUD, HOOD

Part# 021028 (Superseded to 20315500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

120382

32

WASHER, LOCK 3/8 REG.

Part# 120382 (Superseded to 06308800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

013457

33

HANDLE, ADJUSTING

Part# 013457 (Superseded to 08597900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $39.07

180126

34

BOLT, HEX 3/8-16X1.50

Part# 180126 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

024844

35

HITCH, WELDMENT 8 H.P.

Part# 024844 (Superseded to 08544400)

OEM Warranty Repair Part for Gravely

Not available

034062

36

KICK STAND

Part# 034062 (Superseded to 08536500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

010405

37

PIN, HAIR

Part# 010405 (Superseded to 06714000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

040046

NS

DECAL, AMERICA

Part# 040046 (Superseded to 03327700)

OEM Warranty Repair Part for Gravely

Not available
