451 (190-451-100) - Cub Cadet 45" Snow Thrower Attachment Carriage Bracket and Pivot Assembly Parts Diagram

45" Snow Thrower Attachment

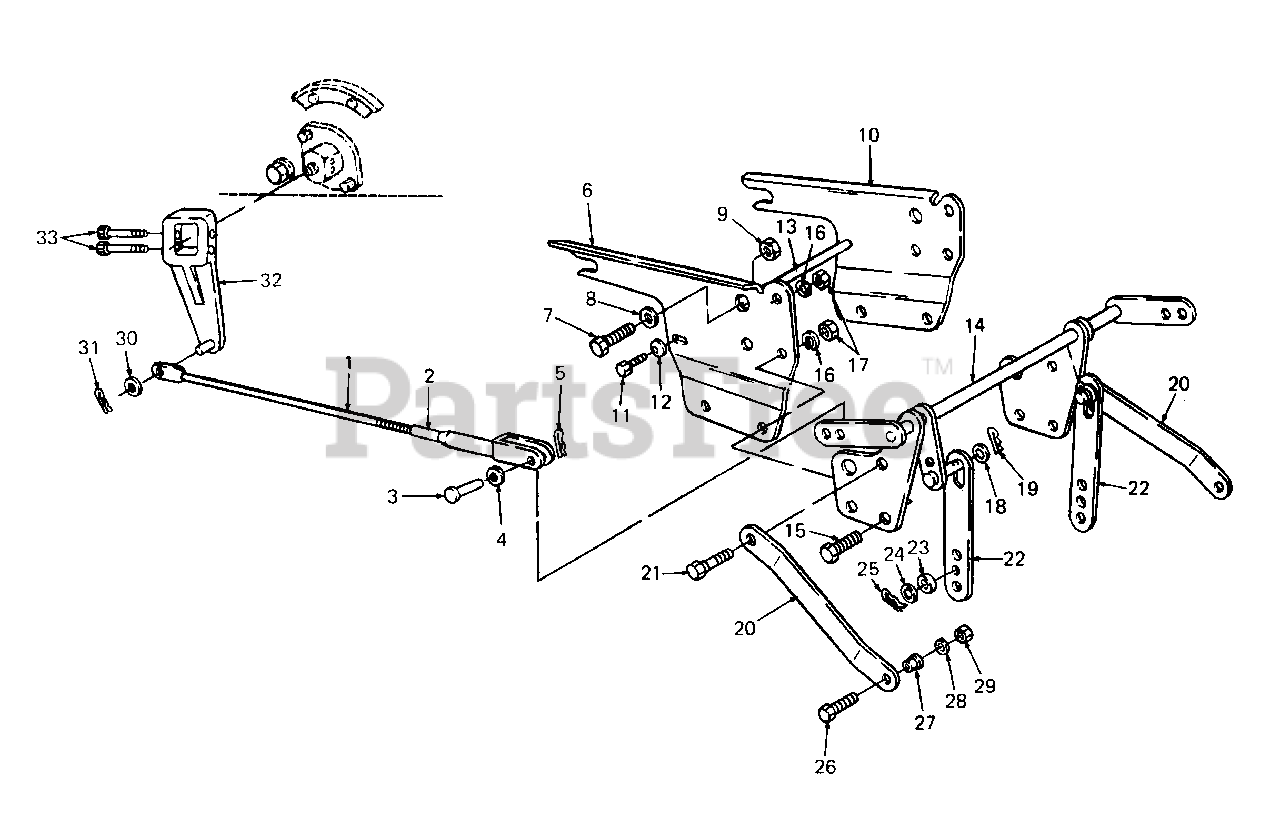

Carriage Bracket and Pivot Assembly Parts Diagram

  • Title

1

Cub Cadet 747-0564

Rod, Lift Handle, .75 Dia X 29.0 Lg

$93.99

$

In Stock, only 2 left!

0

2

Cub Cadet 10991

Clevis Assy, Adj
(Superseded to 10991-0637)

Variations

Cub Cadet 10991-0637

Clevis Assembly Adj - POWDER BLACK (0637)

$128.99

$

In Stock, only 1 left!

0

$128.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0654

Pin, Clevis

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 714-0147

Pin, Hitch Clip

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 784-5402

Carriage Brkt - RH

$

$

Not available

7

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0253

Washer, Belleville, .505 X 1.0 X .075 Thk

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0231

Nut, Pilot Weld, 1/2-13

$

$

Not available

10

Cub Cadet 784-5403

Carriage Brkt - LH

$

$

Not available

11

Cub Cadet 710-0117

Screw, Hex Cap, 5/16-24 X 1.0 Lg
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet 736-0242

Washer, Belleville,.345 X .88 X .060 Thk

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 747-0543

Rod, Carriage Brkt, Support

$

$

Not available

14

Cub Cadet 784-5249A

Pivot Assy

$

$

Currently unavailable

15

Cub Cadet 710-0504

Screw, Hex Cap, 1/2-20 X 1.25 Lg

$

$

Not available

16

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 6

0

18

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0147

Pin, Hitch Clip

$4.49

$

In Stock, Qty 12

0

20

Cub Cadet 784-5413

Pivot Link, 15.5 Lg

$

$

Not available

21

Cub Cadet 738-0744

Bolt, Shoulder, .625 Dia X .36 Lg

$

$

Not available

22

Cub Cadet 784-5247

Lift Link, 12.91 Lg

$

$

Not available

23

Cub Cadet 748-0273

Spacer, .635 X .885 X .33 Lg

$

$

Not available

24

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.49

$

In Stock, Qty 20+

0

25

Cub Cadet 714-0147

Pin, Hitch Clip

$4.49

$

In Stock, Qty 12

0

26

Cub Cadet 710-0191

Screw, Hex Cap, 3/8-24 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 8

0

27

Cub Cadet 748-0241

Spacer, Shoulder, .38 ID

$

$

Not available

28

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0116

Nut, Hex Insert Lock, 3/8-24

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 714-0145

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 603-0027

Arm, Lift

$

$

Not available

33

Cub Cadet 710-3250

Screw, Socket Hd

$4.99

$

Usually ships in 3-6 days

0
