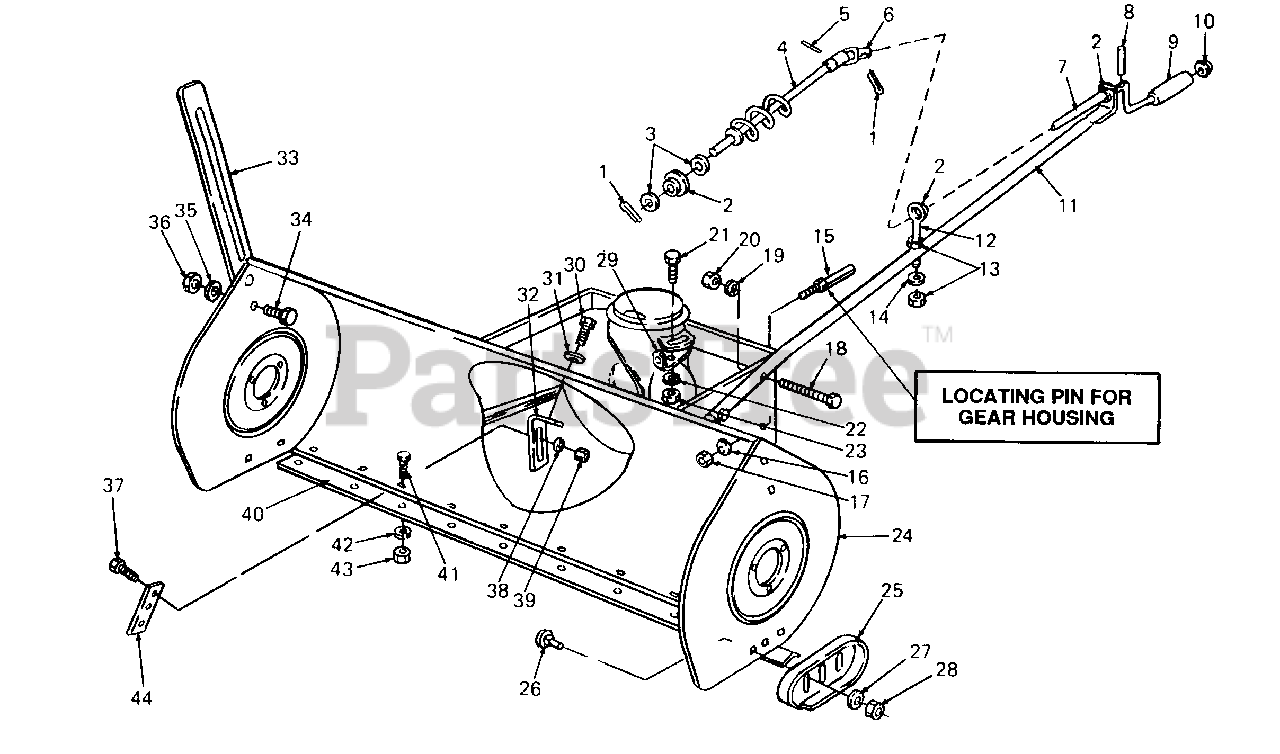

451 (190-451-100) - Cub Cadet 45" Snow Thrower Attachment Housing Assembly Parts Diagram

45" Snow Thrower Attachment

Housing Assembly Parts Diagram

  • Title

1

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0140

Washer, Flat, .385 X .62 X .063

$7.49

$

In Stock, Qty 12

0

4

Cub Cadet 784-5401

Spiral, Chute Crank
(Superseded to 784-5401A)

$

$

Not available

5

Cub Cadet 715-0129

Pin, Spiral Spring, 1/8 Dia X .812 Lg

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 784-5149

Block Assy, Joint
(Superseded to 684-04350)

$30.99

$

In Stock, only 3 left!

0

7

Cub Cadet 747-0551

Crank, Chute
(Superseded to 747-0931A)

$28.99

$

In Stock, only 2 left!

0

8

Cub Cadet 715-0138

Pin, Roll, 1/8 Dia X .63 Lg
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet 720-0201A

Knob, Chute Crank

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet 726-0100

Pushnut, Rod, 3/8

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 749-0724

Support Tube, Chute Crank

Variations

749-0724-0637

Cub Cadet 749-0724-0637

TUBING-CHUTE CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 747-0481A

Bolt, Eye, 5/16-18 X 3.0 Lg

$

$

Not available

13

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0640

Stud, Locating

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0160

Washer, Flat, .531 X .930 X .050 Thk

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0191

Screw, Hex Cap, 3/8-24 X 1.25 Lg GR5

$4.99

$

In Stock, Qty 7

0

19

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0116

Nut, Hex Insert Lock, 3/8-24

$4.99

$

In Stock, only 3 left!

0

21

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 784-5036B

Housing Assy

$

$

Currently unavailable

Cub Cadet 777-5785

Label, Cut Foot

$

$

Currently unavailable

Cub Cadet 777-7451A

Label, Warning

$

$

Currently unavailable

Cub Cadet 779-3538

Label, Warning

$

$

Not available

25

Cub Cadet 784-5038A

Shoe, Slide
(Superseded to 784-5038B-0637)

$29.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-0790

Bolt, Carriage, 3/8-16 X .62 Lg
(Superseded to 710-0389)

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0160

Washer, Flat, .531 X .930 X .050 Thk

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0342

Nut, Hex, 3/8-16
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

29

Cub Cadet 784-5123

Bracket, Chute Crank
(Superseded to 784-5123-0637)

Variations

784-5123-0637

Cub Cadet 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0726

Screw, Hex Wash AB Tapp

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 784-5076

Bracket, Gear Hsg Support
(Superseded to 784-5076-0637)

Variations

784-5076-0637

Cub Cadet 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 05139A

Cutter, Drift
(Superseded to 790-00181-0637)

Variations

05139A-0498

Cub Cadet 05139A-0498

USE 790-00181-0637 BLADE-GUID - OLD CUB YELLOW (0498)

$45.99

$

Usually ships in 3-6 days

0

05139A-0637

Cub Cadet 05139A-0637

USE 790-00181-0637 BLADE-GUID - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

05139A-0638

Cub Cadet 05139A-0638

USE 790-00181-0637 BLADE-GUID - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

05139A-0662

Cub Cadet 05139A-0662

USE 790-00181-0637 BLADE-GUID - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

0

05139A-0665

Cub Cadet 05139A-0665

USE 790-00181-0637 BLADE-GUID - YARDMAN GREEN (0665)

$45.99

$

Usually ships in 3-6 days

0

05139A-0674

Cub Cadet 05139A-0674

USE 790-00181-0637 BLADE-GUID - YARDMAN YELLOW (0674)

$45.99

$

Usually ships in 3-6 days

0

05139A-0716

Cub Cadet 05139A-0716

USE 790-00181-0637 BLADE-GUID - CUB YELLOW-99 (0716)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg GR5

$5.99

$

In Stock, Qty 8

0

38

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$7.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 05598

Plate, Shave
(Superseded to 05598-0637)

Variations

05598-0637

Cub Cadet 05598-0637

Shave Plate, Black - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 X 1.0 Lg

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 784-5075

Plate, Gear Hsg Support

$

$

Not available
