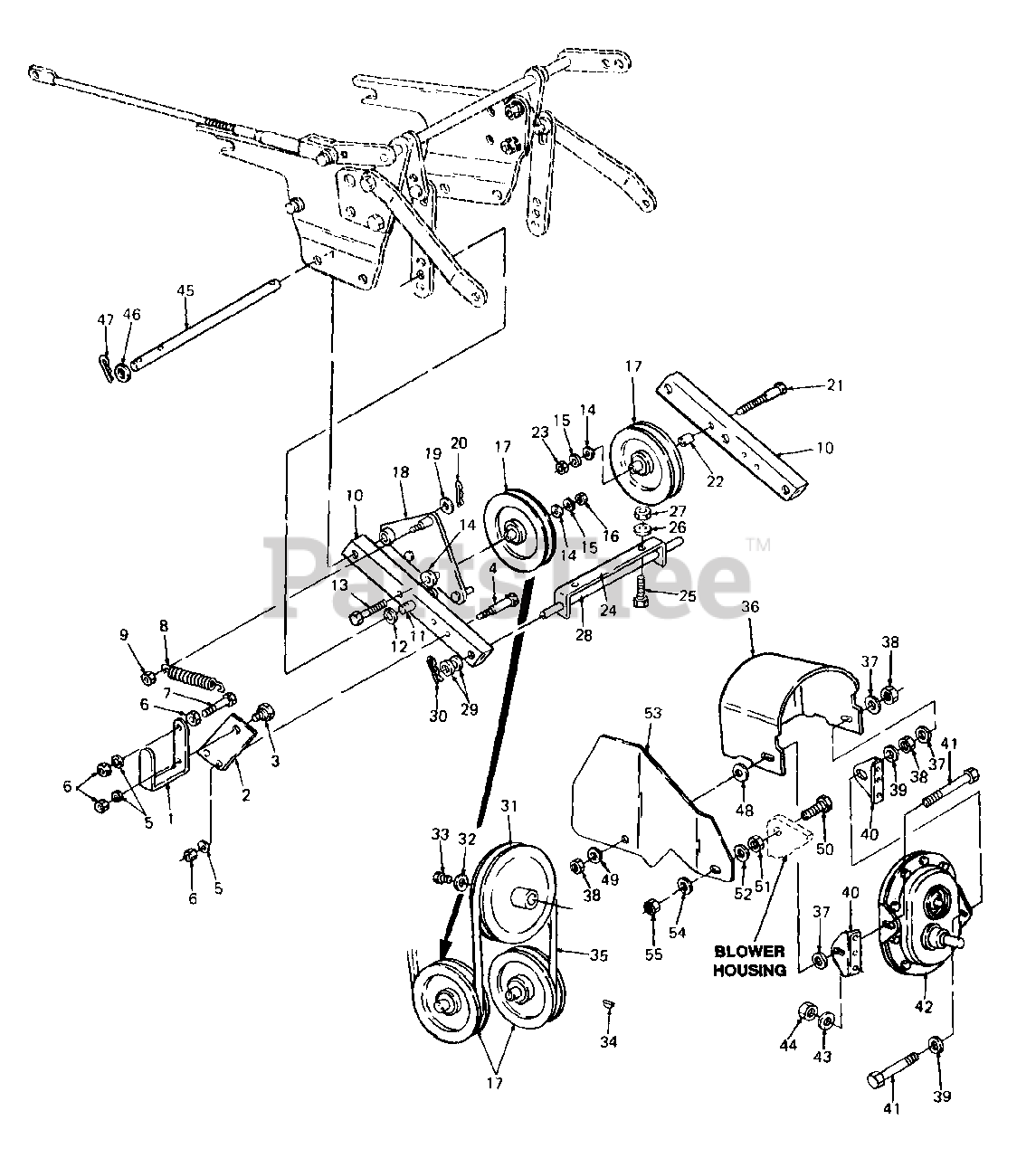

451 (190-451-100) - Cub Cadet 45" Snow Thrower Attachment Undercarriage Drive Parts Diagram

45" Snow Thrower Attachment

Undercarriage Drive Parts Diagram

  • Title

1

Cub Cadet 784-5410

Bracket, Spring

Variations

784-5410-0637

Cub Cadet 784-5410-0637

BRACKET-SPRING - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 784-5411

Support, Spring Brkt

$

$

Not available

3

Cub Cadet 738-0322

Bolt, Shoulder, .625 Dia X .217 Lg
(Superseded to 738-0322A)

$7.49

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0194

Screw, Hex Cap, 3/8-16 X 3.0 Lg

$

$

Not available

5

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 11

0

6

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0756

Screw, Hex Cap, 3/8-16 X 2.25 Lg

$

$

Not available

8

Cub Cadet 732-0262

Spring, Extension
(Superseded to 932-0262)

$

$

Not available

9

Cub Cadet 712-0116

Nut, Hex Insert Lock, 3/8-24

$4.99

$

In Stock, only 3 left!

0

10

Cub Cadet 750-0701

Tubing, Square

$

$

Not available

11

Cub Cadet 711-0577

Pin, Clevis

$

$

Not available

12

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$7.49

$

In Stock, only 4 left!

0

13

Cub Cadet 710-0489

Screw, Hex Cap, 1/2-13 X 2.0 Lg

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0326

Washer, Flat, .510 X 1.0 X .12 Thk

$4.99

$

In Stock, Qty 5

0

15

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 9

0

16

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 756-0507

Pulley, Idler, .50 ID X 6.0 OD

$82.99

$

In Stock, only 1 left!

0

18

Cub Cadet 784-5408

Bracket Assy, Idler

Variations

784-5408-0637

Cub Cadet 784-5408-0637

IDLER BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$7.49

$

In Stock, only 4 left!

0

20

Cub Cadet 714-0147

Pin, Hitch Clip

$5.49

$

In Stock, Qty 6

0

21

Cub Cadet 710-0465

Screw, Hex Cap, 1/2-20 X 4.5 Lg GR5

$12.99

$

In Stock, only 1 left!

0

22

Cub Cadet 750-0499

Spacer, .50 X .75 X .780 Lg

$25.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0333

Nut, Hex,1/2-20
(Superseded to 912-0333)

$

$

Not available

24

Cub Cadet 784-5414

Pivot Brkt, Blower Hsg

$

$

Not available

25

Cub Cadet 710-0504

Screw, Hex Cap, 1/2-20 X 1.25 Lg

$

$

Not available

26

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 9

0

27

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$7.49

$

In Stock, Qty 8

0

28

Cub Cadet 747-0544

Rod, 12.5 Lg

$

$

Not available

29

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$7.49

$

In Stock, only 4 left!

0

30

Cub Cadet 714-0147

Pin, Hitch Clip

$5.49

$

In Stock, Qty 6

0

31

Cub Cadet 756-0506

Pulley, 1.0 ID X 7.0 OD

Variations

756-0506-0637

Cub Cadet 756-0506-0637

V-PULLEY 7 IN. OD - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X .157 Thk HDN

$10.99

$

In Stock, Qty 10

0

33

Cub Cadet 710-0591

Screw, Hex Patch, 3/8-24 X 1.0 Lg GR5

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 714-0154

Key, Hi-Pro, 1/4 X 3/4

$

$

Not available

35

Cub Cadet 754-0340

Belt, 5/8 X IC 84.0 Lg
(Superseded to 954-0340)

$70.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 731-0870A

Cover, Belt

$

$

Not available

37

Cub Cadet 736-0159

Washer, Flat, .344 X .88 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0242

Washer, Belleville, .345 X .88 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 05607

Bracket, Gear Box Support

$

$

Not available

41

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 X 1.25 Lg GR5

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 618-3053

Gear Box Assy

Note: (Refer to gearbox assy for components)

$

$

Not available

43

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

44

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 747-0544

Rod, 12.5 Lg

$

$

Not available

46

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$7.49

$

In Stock, only 4 left!

0

47

Cub Cadet 714-0147

Pin, Hitch Clip

$5.49

$

In Stock, Qty 6

0

48

Cub Cadet 736-0343

Washer, Flat, .330 X 1.25 X .120 Thk

$4.99

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0425

Washer, Belleville, .325 X .930

$4.99

$

In Stock, Qty 13

0

50

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16

$4.99

$

In Stock, Qty 12

0

52

Cub Cadet 736-0300

Washer, Flat, .385 X .87 X .06 Thk

$4.99

$

In Stock, Qty 18

0

53

Cub Cadet 703-2351

Deflector, Exhaust

$

$

Not available

54

Cub Cadet 736-0105

Washer,Belleville, .38O X .88 X .062 Thk

$4.99

$

In Stock, Qty 6

0

55

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, only 2 left!

0
