45149 - Gravely 36" Snow Blower for 1100 & 1200 Series Tractor BELT DRIVE Parts Diagram

36" Snow Blower for 1100 & 1200 Series Tractor

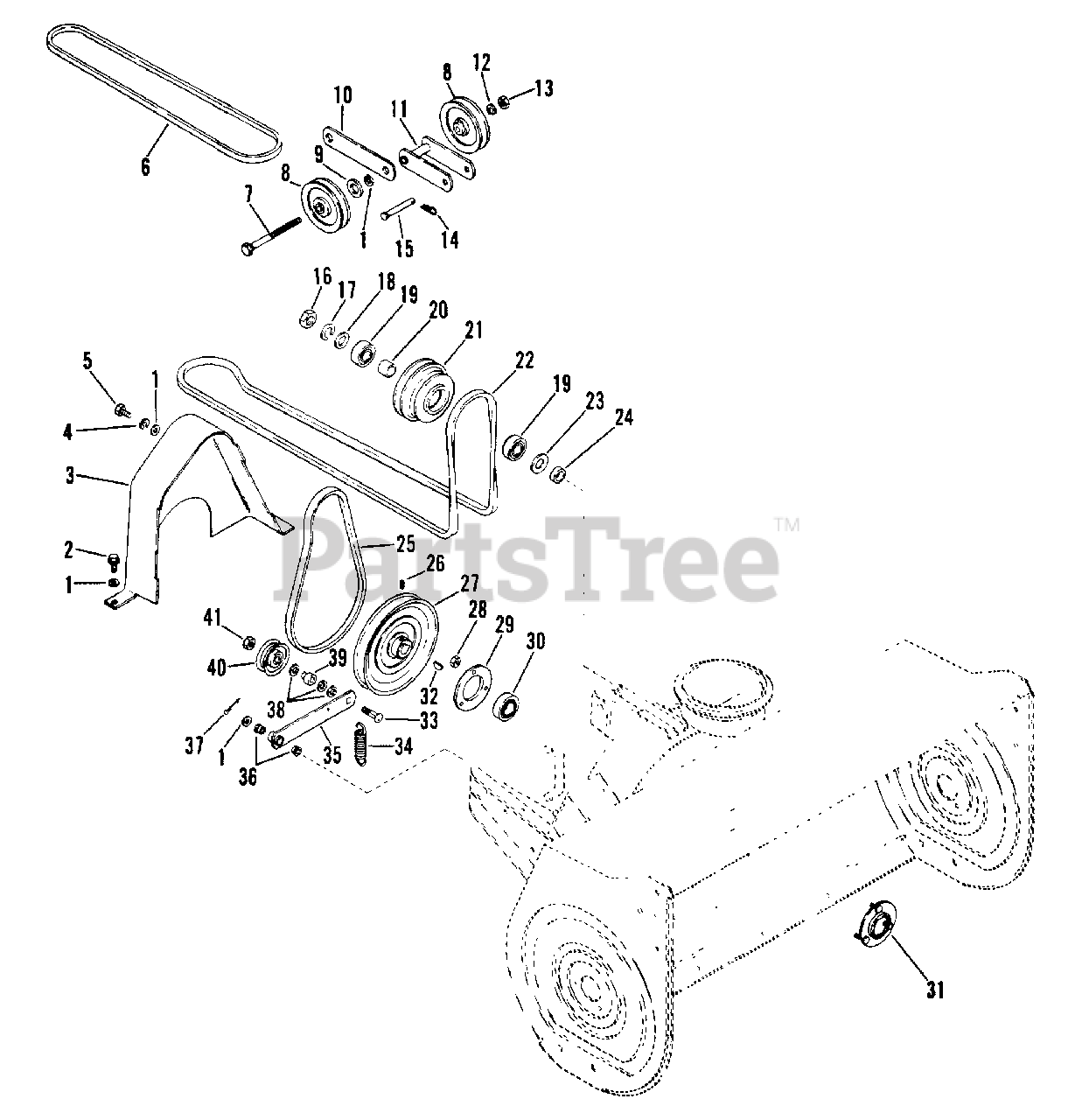

BELT DRIVE Parts Diagram

  • Title

1

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 036905

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 036904

BELT GUARD
(Superseded to 03520000)

$

$

Not available

4

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

5

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 036004

V-BELT, 4L-RAW EDGE
(Superseded to 07211800)

$29.99

$

In Stock, only 3 left!

0

7

Gravely 189306

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 036844

SHV, .38"ID X 4.00"OD V-IDLER
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

9

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 036842

STRAP
(Superseded to 03339543)

$

$

Not available

11

Gravely 036843

IDLER BRACKET
(Superseded to 03518500)

$

$

Not available

12

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

15

Gravely 036845

CLEVIS PIN 3/8X3.0 YWZC
(Superseded to 03518600)

$

$

Not available

16

Gravely 426897

NUT-JAM .75-10 YWZC
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 036225

STAR WASHER
(Superseded to 03559000)

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 036918

WSHR-FL-STL .765X1.250X.062
(Superseded to 06416700)

$

$

Not available

19

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

20

Gravely 036915

SPACER 1.00 X .770/.760 X .813
(Superseded to 03519000)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 036914

SHEAVE
(Superseded to 03518900)

$

$

Not available

22

Gravely 036879

V-BELT, HA-WRAPPED
(Superseded to 07212000)

$

$

Not available

23

Gravely 036917

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 036916

SPACER 1.00 X .770/.760 X .375
(Superseded to 03519100)

$

$

Not available

25

Gravely 049115

V-BELT, 4L-COGGED
(Superseded to 07214200)

$27.99

$

In Stock, only 2 left!

0

26

Gravely 039925

SCR-SET .32-18X.50 SKH
(Superseded to 06003200)

$

$

Not available

27

Gravely 036877

PLY-V 7.50 X .75 W/KEY SALEM
(Superseded to 07309400)

$

$

Not available

28

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 036874

BEARING FLANGE
(Superseded to 03185900)

$23.99

$

In Stock, only 3 left!

0

30

Gravely 036876

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

31

Gravely 036875

BEARING FLANGE
(Superseded to 03186000)

$46.99

$

Usually ships in 4-12 days

0

32

Gravely 120502

KEY-WDRF .188X.875 HRDN #11
(Superseded to 06608200)

$3.99

$

In Stock, only 1 left!

0

33

Gravely 126411

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

34

Gravely 036850

SG-TENS .090X.75X3.50 WLD 34
(Superseded to 08312200)

$35.99

$

Usually ships in 4-12 days

0

35

Gravely 036847

IDLER ARM
(Superseded to 03518800)

$

$

Not available

36

Gravely 036241

BSHG-FLG .372X.500X.312X.625NY
(Superseded to 05503600)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 177923

PIN-CTR .12X.75 EXTPRSQCT YWZ
(Superseded to 06707300)

$0.99

$

In Stock, Qty 6

0

38

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

40

Gravely 049114

KIT, FLAT IDLER

$

$

Not available

41

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
