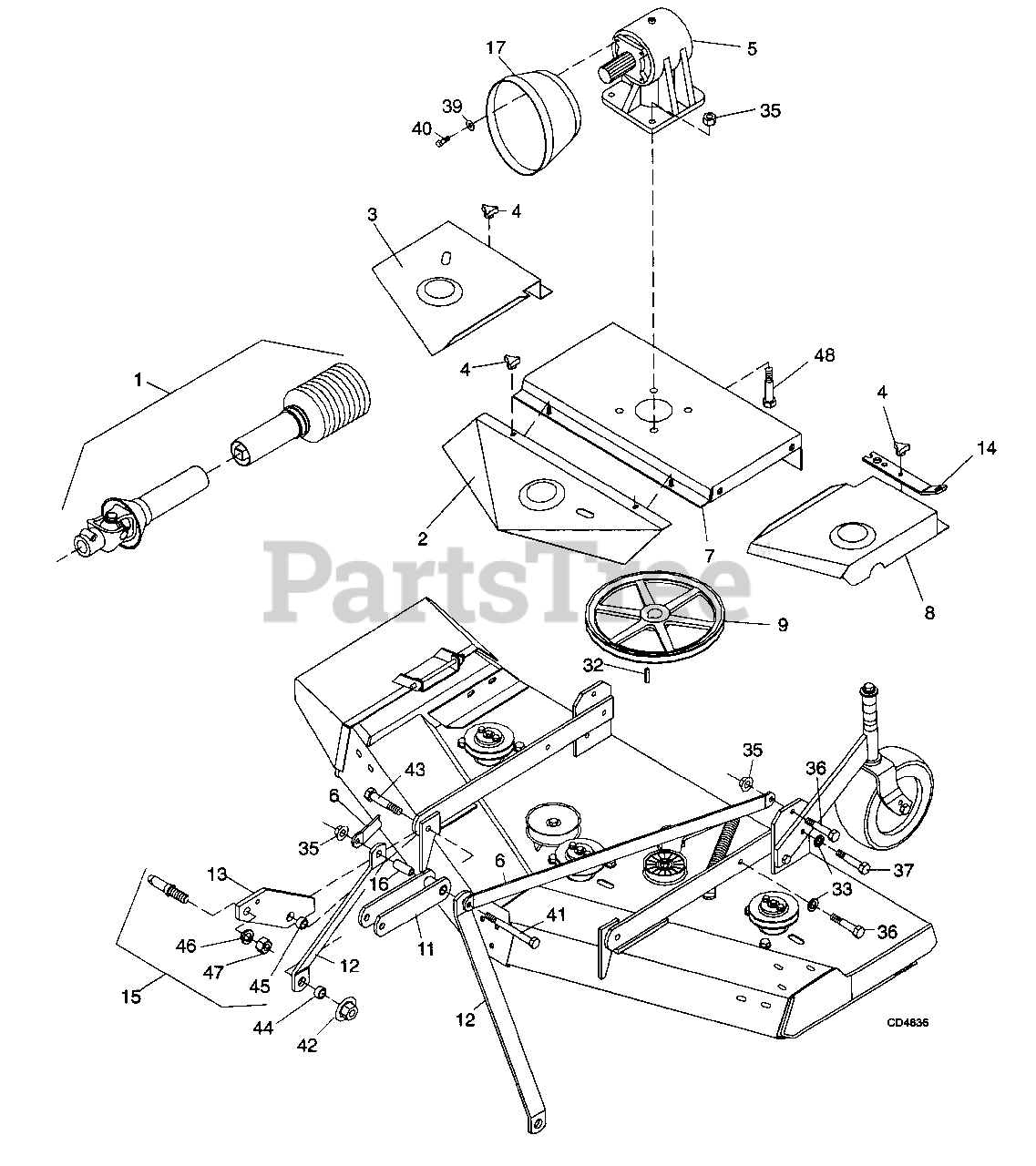

453 (590-453-100) - Cub Cadet Mower Deck, Rear Mount att Mounting Parts Diagram

Mower Deck, Rear Mount

Mounting Parts Diagram

  • Title

1

Cub Cadet WM-51772

Front and rear drives
(Superseded to WM-40551)

Note: (See "Front Drive" and "Rear Drive" illustrations and parts lists)

$

$

Not available

2

Cub Cadet WM-20633

Shield, front belt

$

$

Not available

3

Cub Cadet WM-20634

Shield, right belt

$

$

Not available

4

Cub Cadet WM-66840

Knob, 3-prong 3/8 NC

$

$

Not available

5

Cub Cadet WM-65193

Gearbox, CW 1:1.76

$

$

Not available

6

Cub Cadet WM-19056

Link, offset .25 x 1.50 x 38.12

$

$

Not available

7

Cub Cadet WM-65195

Gearbox stand

$

$

Not available

8

Cub Cadet WM-20635

Shield, left belt

$

$

Not available

9

Cub Cadet WM-65197

1 BK 13.4 H Sheave, keyed

$

$

Not available

11

Cub Cadet WM-19605

U-Link, .38 x 2.5 x 7.13

$

$

Not available

12

Cub Cadet WM-19579

Link, offset .38 x 2 x 25.88

$

$

Not available

13

Cub Cadet WM-67310

Mounting lug

$

$

Not available

14

Cub Cadet WM-20669

Blade spindle wrench

$

$

Not available

15

Cub Cadet WM-33661

Category 1 mounting pin with nuts and lockwasher

$

$

Not available

16

Cub Cadet WM-64814

Pipe, 1/2 schedule 40 x 2.75

$

$

Not available

17

Cub Cadet WM-51849

Shield

$

$

Not available

?30

.05 x 1.38 External snap ring

Note: Not used on this model

$

$

Not available

32

Cub Cadet WM-29792

1/4 x 1/4 x 1-1/4 Key

$

$

Not available

33

Cub Cadet WM-855

1/2 Extra-heavy lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.99

$

In Stock, Qty 9

0

35

Cub Cadet WM-11900

1/2 NC Flanged hex locknut

Note: Obtain Locally

$5.99

$

Usually ships in 3-6 days

0

36

Cub Cadet WM-24576

1/2 NC x 2-1/4 Hex head cap screw GR5

$

$

Not available

37

Cub Cadet WM-25474

1/2 NC x 2-1/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

39

Cub Cadet WM-5336

1/4 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

40

Cub Cadet WM-24801

8mm x 1.25P x 20mm Hex head cap screw

$

$

Not available

41

Cub Cadet WM-29561

1/2 NC x 4-3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

42

Cub Cadet WM-19025

5/8 NC Hex locknut, flanged

Note: Obtain Locally

$

$

Not available

43

Cub Cadet WM-34473

5/8 NC x 3 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

44

Cub Cadet WM-484

5/8 x 1 7/16 HT Sleeve

$

$

Not available

45

Cub Cadet WM-1791

5/8 x 1 x 9/16 HT Sleeve

$

$

Not available

46

Cub Cadet WM-30008

7/8 Lockwasher
(Superseded to 936-0171)

Note: Obtain Locally

$4.99

$

In Stock, only 4 left!

0

47

Cub Cadet WM-30007

7/8 NF Hex nut

Note: Obtain Locally

$

$

Currently unavailable

48

Cub Cadet WM-19024

5/8 x 1-3/4 Hex head cap screw, flanged

Note: Obtain Locally

$

$

Not available
