45405 - Gravely 60" Deck for Gear Drive Pro-Master Mower Mower Drive Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

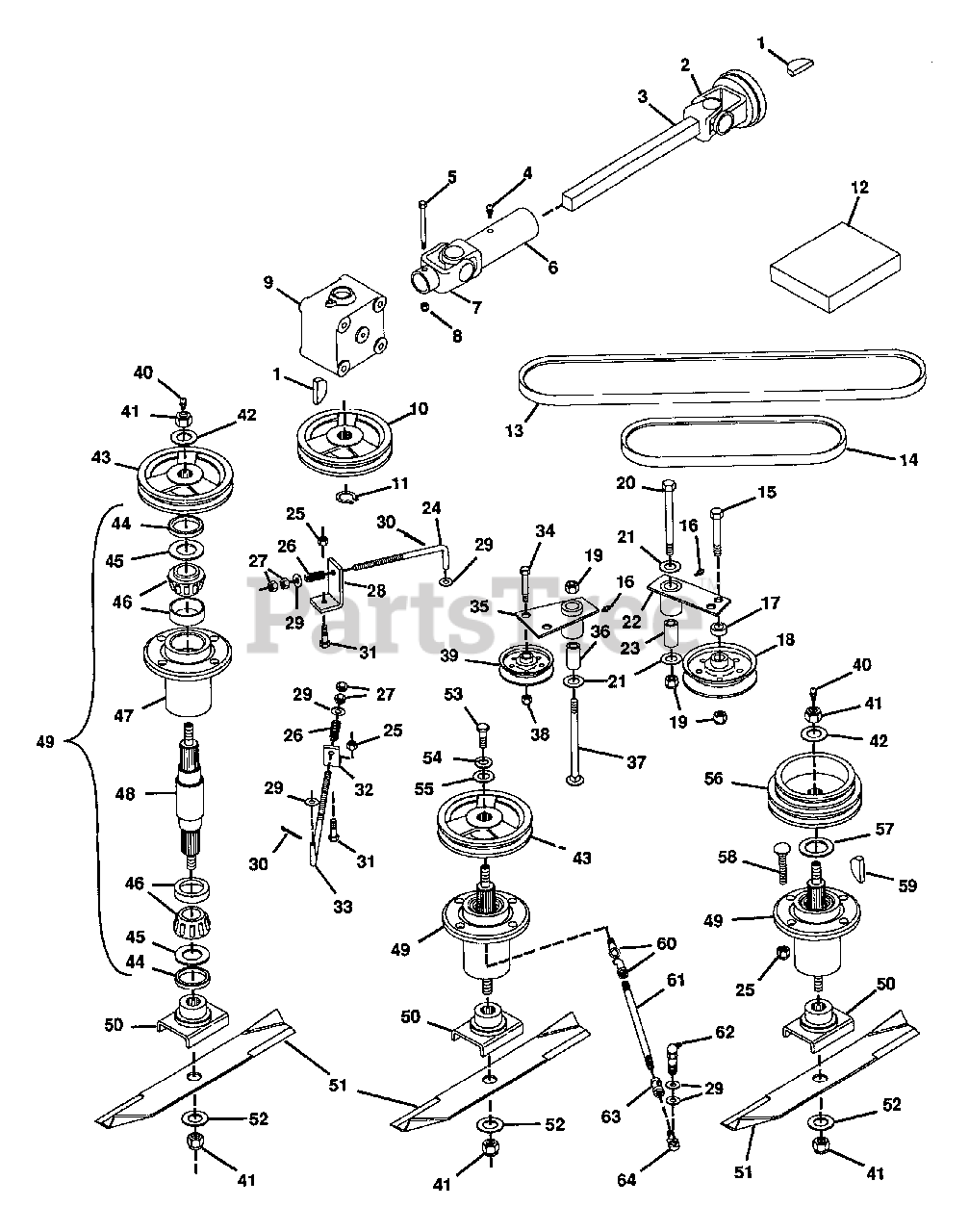

Mower Drive Parts Diagram

  • Title

1

Gravely 124551

Key, Woodruff .250x.875 Hard #A
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 45954

Yoke

$

$

Currently unavailable

3

Gravely 31389

Shaft, Prop. Sq. Bar

$

$

Currently unavailable

4

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

5

Gravely 180089

Bolt, Hex 5/16-18x2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 5

0

6

Gravely 35418

Assembly, U-Joint

$

$

Currently unavailable

7

Gravely 45955

Yoke

$

$

Currently unavailable

8

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 44961

Gearbox, Right Angle

$

$

Currently unavailable

10

Gravely 35417

Pulley, Gearbox

$

$

Currently unavailable

11

Gravely 22080

Ring, Retaining .875 Shaft

$

$

Currently unavailable

12

Gravely 24560

Kit, Repair Universal Shaft

$

$

Currently unavailable

13

Gravely 31369

Belt, "A"

$

$

Currently unavailable

14

Gravely 31383

Belt, "B"

$

$

Currently unavailable

15

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 14406

Fitting, Lube 1/4-28

$

$

Currently unavailable

17

Gravely 31368

Spacer, .516x.875x.300

$

$

Currently unavailable

18

Gravely 22063

Pulley, Flat Idler

$

$

Currently unavailable

19

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 180193

Bolt, Hex 1/2-13x3.75
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

21

Gravely 120389

Washer, Flat .500x1 .250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

22

Gravely 31360

Weldment, Idler Pivot "B"

$

$

Currently unavailable

23

Gravely 31363

Spacer, .850x.546x2.50

$

$

Currently unavailable

24

Gravely 21111

Rod, Idler

$

$

Currently unavailable

25

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

26

Gravely 11779

Spring, Compression

$

$

Currently unavailable

27

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 31346

Support, Spring "B"

$

$

Currently unavailable

29

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

31

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 31345

Support, Spring "A"

$

$

Currently unavailable

33

Gravely 21112

Rod, Idler

$

$

Currently unavailable

34

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

35

Gravely 31364

Weldment, Idler Pivot "A"

$

$

Currently unavailable

36

Gravely 31367

Spacer, .850x.546x2.18

$

$

Currently unavailable

37

Gravely 126808

Bolt, 1/2-13x3.75 Rd Hd Sq Nk
(Superseded to 06218600)

$7.99

$

Usually ships in 4-12 days

0

38

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 21060

Sheave, Idler

$

$

Currently unavailable

40

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

41

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

42

Gravely 33845

Washer, Flat .687x1.312x.122

$

$

Currently unavailable

43

Gravely 31359

Pulley

$

$

Currently unavailable

44

Gravely 21211

Seal, Steel

Note: (Center & Right Spindle - Qty 2), (Left Spindle - Qty 1)

$

$

Currently unavailable

45

Gravely 20743

Washer, Flat .975x1.970x.030

Note: (Center & Right Spindle - Qty 2), (Left Spindle - Qty 1)

$

$

Currently unavailable

46

Gravely 38199

Assembly, Bearing Cup and Cone

$

$

Currently unavailable

47

Gravely 21218

Housing, Bearing Mower

Note: (Center Spindle)

$

$

Currently unavailable

47

21215

Housing, Bearing

Note: (Left & Right Spindle)

$

$

Not available

48

Gravely 21216

Shaft, Spindle (Right)

Note: (Right)

$

$

Currently unavailable

48

31356

Shaft, Spindle (Center)

Note: (Center)

$

$

Not available

48

34603

Shaft, Spindle (Left)

Note: (Left)

$

$

Not available

49

Gravely 21306

Assembly, Spindle (Right)

Note: (Right)

$

$

Currently unavailable

49

35646

Assembly, Spindle (Center)

Note: (Center)

$

$

Not available

49

34605

Assembly, Spindle (Left)

Note: (Left)

$

$

Not available

50

Gravely 23026

Weldment, Blade Cradle

$

$

Currently unavailable

51

Gravely 25124

Blade

$

$

Currently unavailable

52

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

53

Gravely 22065

Bolt, Hex Spec. 1/2-13x1.34

$

$

Currently unavailable

54

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

55

Gravely 37842

Washer, Flat 1.38x.56 Hard

$

$

Currently unavailable

56

Gravely 35015

Pulley, Drive

$

$

Currently unavailable

57

Gravely 19340

Race, Bearing Thrust

$

$

Currently unavailable

58

Gravely 126406

Bolt, 3/8-16x1.375 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

59

Gravely 124553

Key, Woodruff .250x1.00 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

60

Gravely 144117

El, Street 1/8-27
(Superseded to 07024800)

$13.99

$

Usually ships in 4-12 days

0

61

Gravely 31357

Nipple, Pipe 6.30

$

$

Currently unavailable

62

Gravely 273351

Fitting, Lube 65 Degree
(Superseded to 07025400)

$

$

Not available

63

Gravely 144067

Coupling, Pipe 1/8-27
(Superseded to 07024600)

$

$

Not available

64

Gravely 191759

El, Adaptor 90 Degree
(Superseded to 07012300)

$17.99

$

Usually ships in 4-12 days

0

Gravely 36799

Spring

Note: NS

$

$

Currently unavailable

Gravely 36800

Collar, Locking

Note: NS

$

$

Currently unavailable

Gravely 36801

Ring, Snap

Note: NS

$

$

Currently unavailable

Gravely 145643

Ball, Detent
(Superseded to 05429800)

Note: NS

$3.49

$

Usually ships in 4-12 days

0
