45405 - Gravely 60" Deck for Gear Drive Pro-Master Mower Mower Frame Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

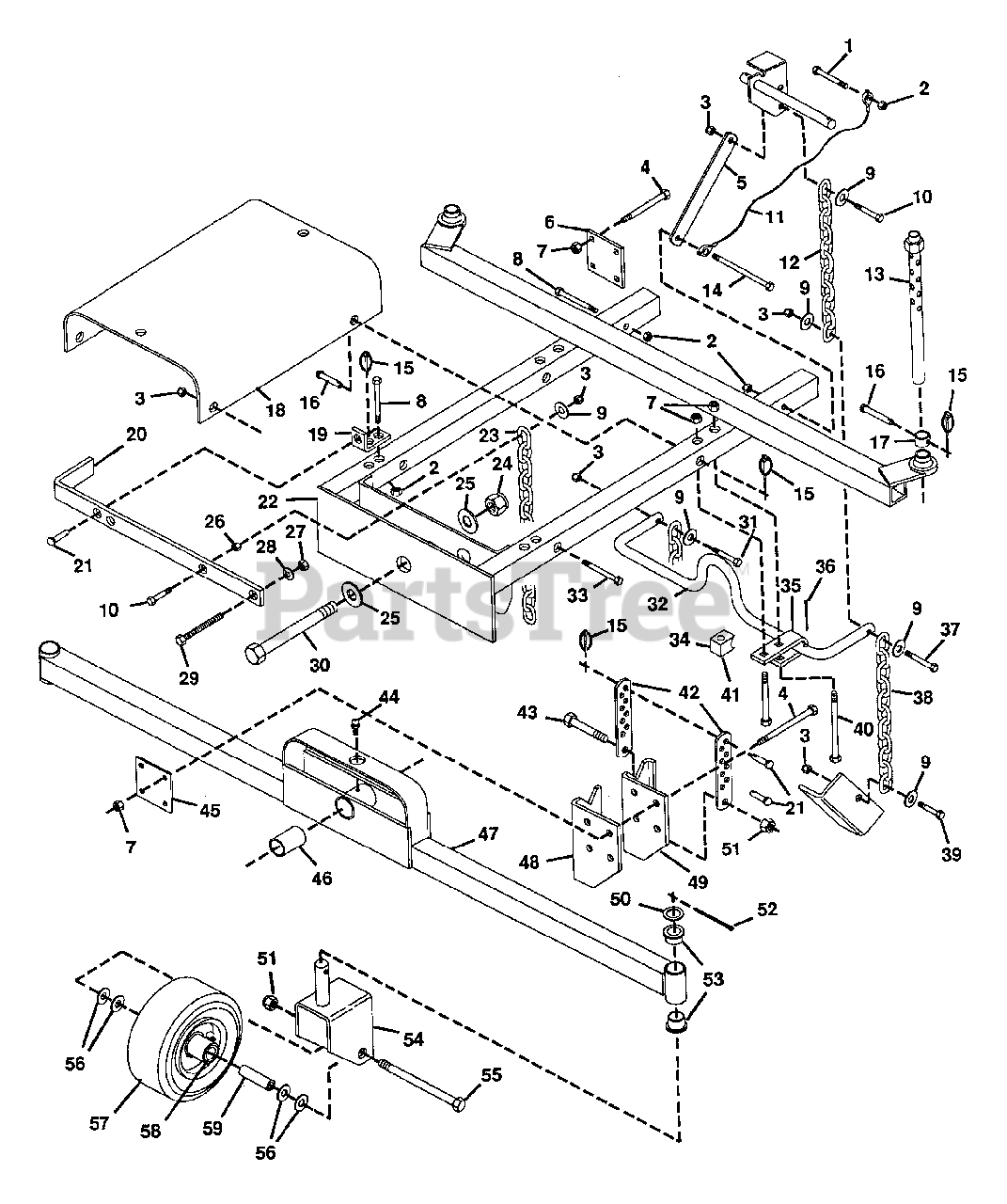

Mower Frame Parts Diagram

  • Title

1

Gravely 181621

Bolt, Hex 5/16-24x2.25
(Superseded to 05937100)

$

$

Not available

2

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 189304

Bolt, Hex 3/8-16x3.25
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

5

35659

Bar, Deck Lift

$

$

Not available

6

35628

Plate, Attachment Clamp

$

$

Not available

7

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 181623

Bolt, Hex 5/16-24x2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

11

35517

Cable, Stop

$

$

Not available

12

37041

Chain, Lift

$

$

Not available

13

35545

Weldment, Height Adjustment Rod

$

$

Not available

14

Gravely 189323

Bolt, Hex 5/16-24x3.5
(Superseded to 05938700)

$

$

Not available

15

23468

Klik Pin

$

$

Not available

16

22113

Pin, Clevis 3/8x2.62

$

$

Not available

17

35647

Spacer, Height Adjustment

$

$

Not available

18

35447

Guard, PTO Shaft

$

$

Not available

19

35685

Bracket, Lift Pivot

$

$

Not available

20

35684

Bar, Lift

$

$

Not available

21

35683

Pin, Clevis

$

$

Not available

22

44634

Weldment, Mower Frame

$

$

Not available

23

38255

Chain, Height Adjustment

$

$

Not available

24

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

25

35640

Washer, Flat .812x1.469x.130

$

$

Not available

26

Gravely 124824

Nut, Jam 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

27

Gravely 124829

Nut, Jam 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

28

Gravely 120382

Washer, Lock 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

29

14718

Bolt, Hex 3/8-16x3.00 Special

$

$

Not available

30

Gravely 271781

Bolt, Hex 3/4-10x4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

31

Gravely 180083

Bolt, Hex 5/16-18x1.50
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

32

35656

Arm, Pivot

$

$

Not available

33

Gravely 180091

Bolt, Hex 5/16-18x2.50
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

34

11260

Stop, Nylon

$

$

Not available

35

11264

Bracket, Axle Support

$

$

Not available

36

Gravely 120123

Pin, Cotter 1/8x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

37

Gravely 180085

Bolt, Hex 5/16-18x1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

38

35663

Chain, Lift

$

$

Not available

39

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

40

Gravely 191163

Bolt, Hex 3/8-16x4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 180138

Bolt, Hex 3/8-16x3.00
(Superseded to 05901814)

$2.49

$

In Stock, only 1 left!

0

42

35686

Strap, Adjustment

$

$

Not available

43

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

44

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

45

35497

Plate, Adjustment Clamp

$

$

Not available

46

34920

Tube, Pivot

$

$

Not available

47

44633

Weldment, Axle

$

$

Not available

48

35698

Plate, Height Adjustment-L.H.

$

$

Not available

48

35697

Plate, Height Adjustment-R.H.

$

$

Not available

49

35696

Plate, Height Adjustment-L.H.

$

$

Not available

49

35695

Plate, Height Adjustment-R.H.

$

$

Not available

50

Gravely 19340

Race, Bearing Thrust

$

$

Currently unavailable

51

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

52

Gravely 137253

Pin, Cotter .187x1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

53

18355

Bushing, Pivot

$

$

Not available

54

45523

Weldment, Caster Fork

$

$

Not available

55

Gravely 433163

Bolt, Hex 1/2-13x5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

56

Gravely 415543

Washer, Flat .531 x 1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

57

45205

Wheel, Gauge

$

$

Not available

58

37823

Bearing, Gauge Wheel

$

$

Not available

59

11950

Bushing, Wheel .520x.750x3.312

$

$

Not available

38549

Decal, Pro Master-60

Note: NS

$

$

Not available
