45446 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start FUEL AND EXHAUST SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start

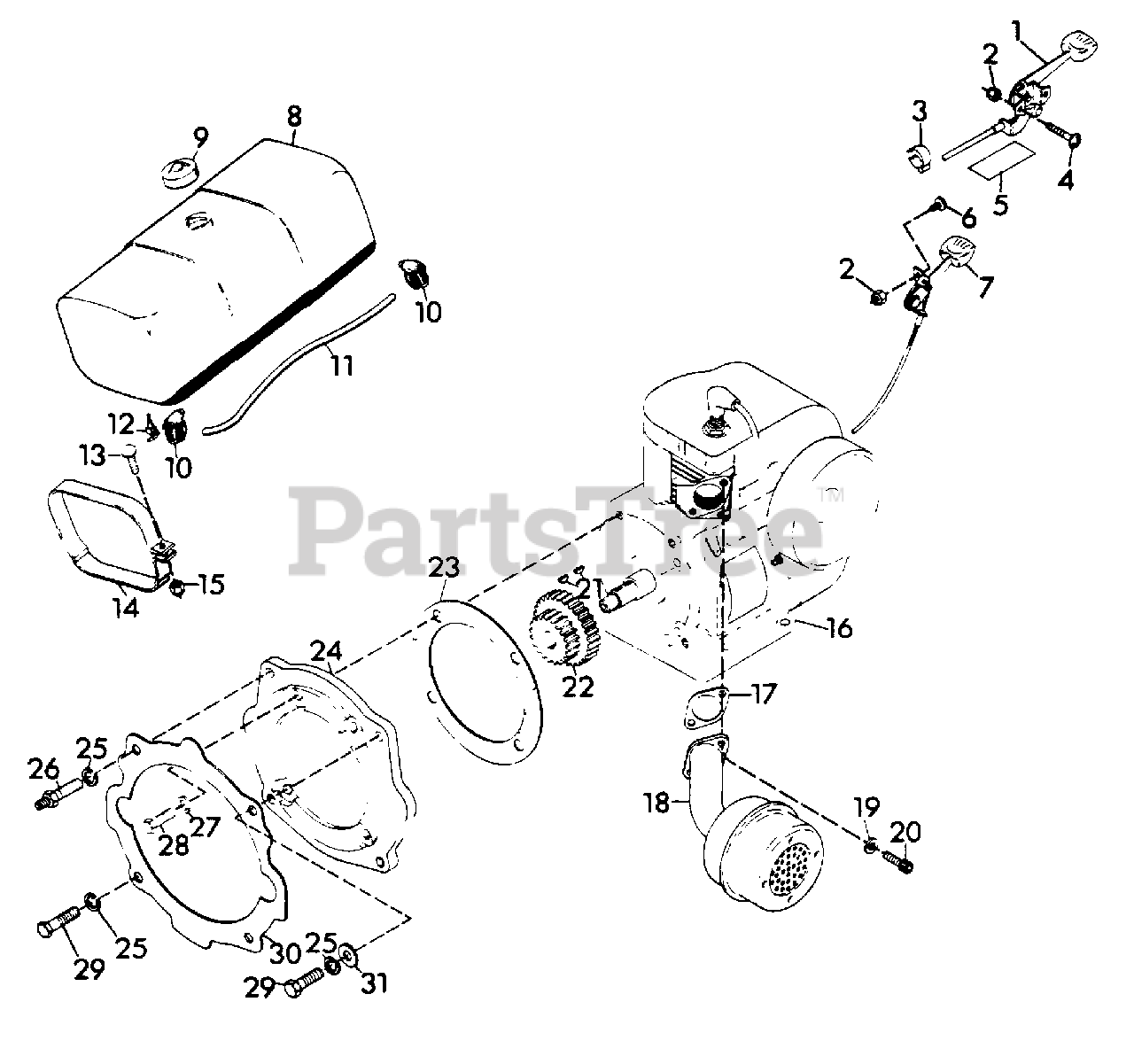

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 041394

LEVER, THROTTLE CONTROL
(Superseded to 20692600)

$44.66

$

In Stock, only 2 left!

0

1

Gravely 043429

LEVER, THROTTLE CONTROL
(Superseded to 06926900)

$

$

Not available

1

Gravely 021103

LEVER, THROTTLE CONTROL
(Superseded to 06921900)

$73.73

$

Usually ships in 4-12 days

0

2

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$1.96

$

In Stock, Qty 20+

0

3

Gravely 008260

CLIP, CONDUIT
(Superseded to 06901200)

$4.76

$

In Stock, only 1 left!

0

4

Gravely 436738

SCREW, MACH. 10-24X1.50 PHD
(Superseded to 06118300)

$2.12

$

In Stock, only 4 left!

0

5

Gravely 021092

DECAL, THROTTLE
(Superseded to 05201200)

$21.07

$

Usually ships in 4-12 days

0

6

Gravely 159920

SCREW, MACH. 10-24X.50 PHD
(Superseded to 06113000)

$1.68

$

In Stock, Qty 5

0

7

Gravely 041560

LEVER, CHOKE CONTROL
(Superseded to 21260400)

$

$

Not available

7

Gravely 041561

LEVER, CHOKE CONTROL
(Superseded to 21260500)

$

$

Not available

8

Gravely 010636

ASSEMBLY, FUEL TANK
(Superseded to 08575100)

$305.98

$

In Stock, only 1 left!

0

9

Gravely 010756

CAP, GAS TANK
(Superseded to 08582100)

$38.05

$

Usually ships in 4-12 days

0

10

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.65

$

Usually ships in 4-12 days

0

11

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$0.56

$

In Stock, Qty 20+

0

12

Gravely 007354

VALVE AND STRAINER
(Superseded to 08860200)

$8.89

$

In Stock, only 2 left!

0

13

Gravely 126342

BOLT, 1/4-20X1.75 RD.HD.SQ.NECK
(Superseded to 06220000)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 010640

STRAP, FUEL TANK
(Superseded to 08581800)

$40.53

$

Usually ships in 4-12 days

0

15

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$2.24

$

Usually ships in 4-12 days

0

16

Gravely 041645

ENGINE, 12 HP ELECTRIC

$

$

Not available

16

Gravely 041646

ENGINE, 12 HP MANUAL

$

$

Not available

16

Gravely 041960

ENGINE, 10 HP ELECTRIC

$

$

Not available

16

Gravely 041643

ENGINE, 8 HP ELECTRIC

$

$

Not available

16

Gravely 041644

ENGINE, 8 HP MANUAL

$

$

Not available

17

Gravely 011202

GASKET, EXHAUST
(Superseded to 08824700)

$10.01

$

In Stock, Qty 7

0

18

Gravely 040868

MUFFLER
(Superseded to 08545400)

$248.36

$

Usually ships in 4-12 days

0

19

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$2.52

$

In Stock, Qty 20+

0

20

Gravely 421705

SCREW, CAP 5/16-18X.75 SHD
(Superseded to 05901827)

$2.80

$

In Stock, Qty 20+

0

21

Gravely 124546

KEY, WOODRUFF 5/32X5/8 HARD #6
(Superseded to 06608500)

$2.12

$

Usually ships in 4-12 days

0

22

Gravely 017838

GEAR, 10/12 DP 21/30 TEETH
(Superseded to 08505300)

$

$

Not available

23

Gravely 010732

GASKET, ENGINE TO ADAPTOR
(Superseded to 08602700)

$9.34

$

Usually ships in 4-12 days

0

23

Gravely 015718

GASKET, ENGINE TO ADAPTOR
(Superseded to 08500400)

$9.34

$

Usually ships in 4-12 days

0

24

Gravely 010731

ADAPTOR, ENGINE
(Superseded to 09022100)

$

$

Not available

24

Gravely 014938

ADAPTOR, ENGINE
(Superseded to 08503200)

$

$

Not available

25

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.74

$

Usually ships in 4-12 days

0

26

Gravely 040404

STUD
(Superseded to 08541700)

$

$

Not available

27

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$2.24

$

Usually ships in 4-12 days

0

28

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$2.80

$

Usually ships in 4-12 days

0

29

Gravely 180147

BOLT, HEX 7/16-14X1.25
(Superseded to 05964800)

$2.52

$

Usually ships in 4-12 days

0

30

Gravely 010635

GASKET, CHASSIS TO ADAPTOR
(Superseded to 08602800)

$15.60

$

In Stock, only 3 left!

0

31

Gravely 120395

WASHER, FLAT .469X.938X.065
(Superseded to 06429400)

$

$

Not available
