455 E - Hayter 21" Heavy-Duty Walk-Behind Mower, Canada (SN: 455E280000001 - 455E280999999) (2008) ENGINE AND TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Walk-Behind Mower, Canada

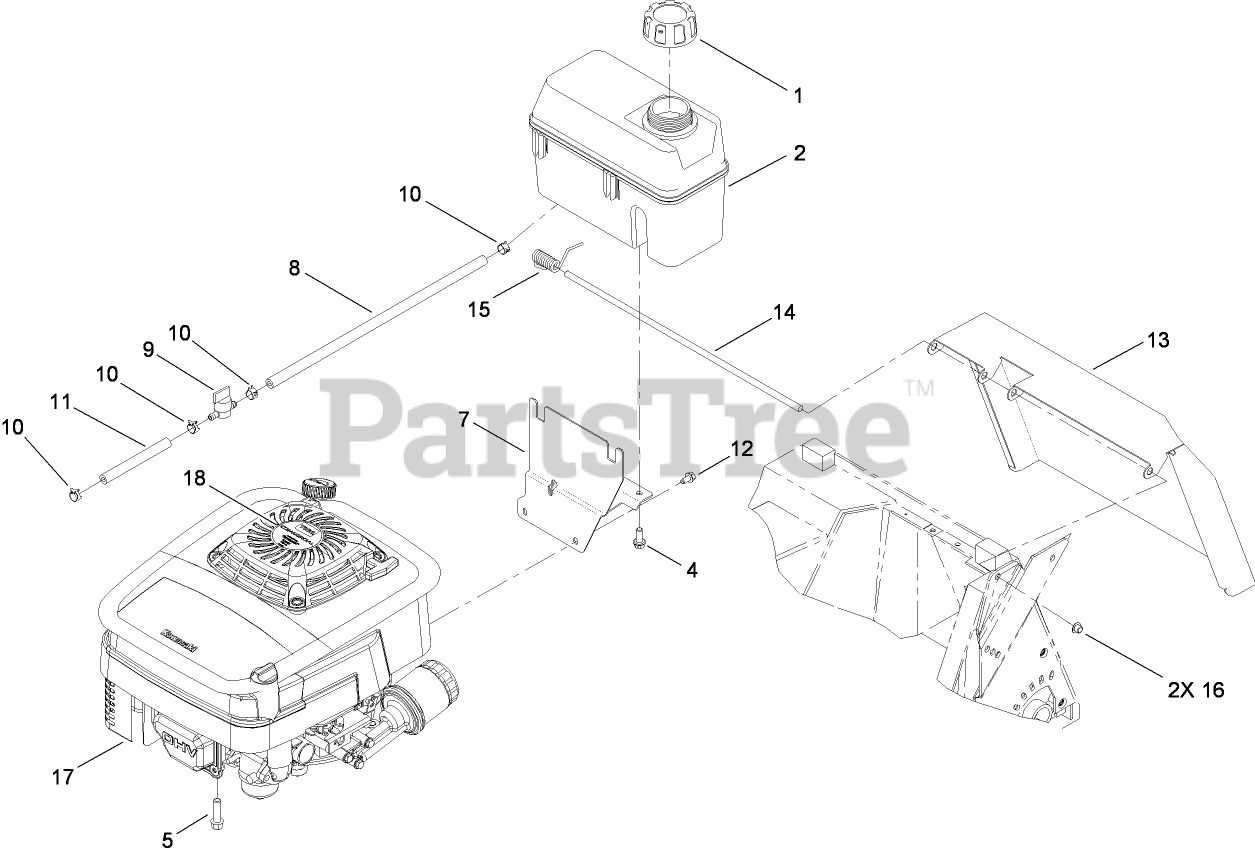

ENGINE AND TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7198

CAP-GAS

$17.99

$

Usually ships in 3-6 days

0

2

Toro 106-0625

Tank-Fuel
(Superseded to 117-3510)

$100.99

$

In Stock, only 2 left!

0

4

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

5

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 115-0954-03

MOUNT-TANK

$45.99

$

In Stock, only 3 left!

0

8

Toro 109-0296

HOSE-FUEL

$11.99

$

In Stock, only 2 left!

0

9

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 14

0

10

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

11

Toro 109-0650

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

12

Toro 104-2628

SCREW-HWH

$1.99

$

In Stock, Qty 7

0

13

Toro 114-3445-03

DOOR-DISCHARGE, REAR

$107.99

$

Usually ships in 3-6 days

0

14

Toro 107-4286

ROD-DOOR

$19.99

$

Usually ships in 3-6 days

0

15

Toro 110-5005

SPRING-TORSION, DOOR

$12.99

$

Usually ships in 3-6 days

0

16

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

17

Engine ASM

Note: Not serviced separately

$

$

Not available

18

Toro 111-1918

DECAL

$

$

Currently unavailable
