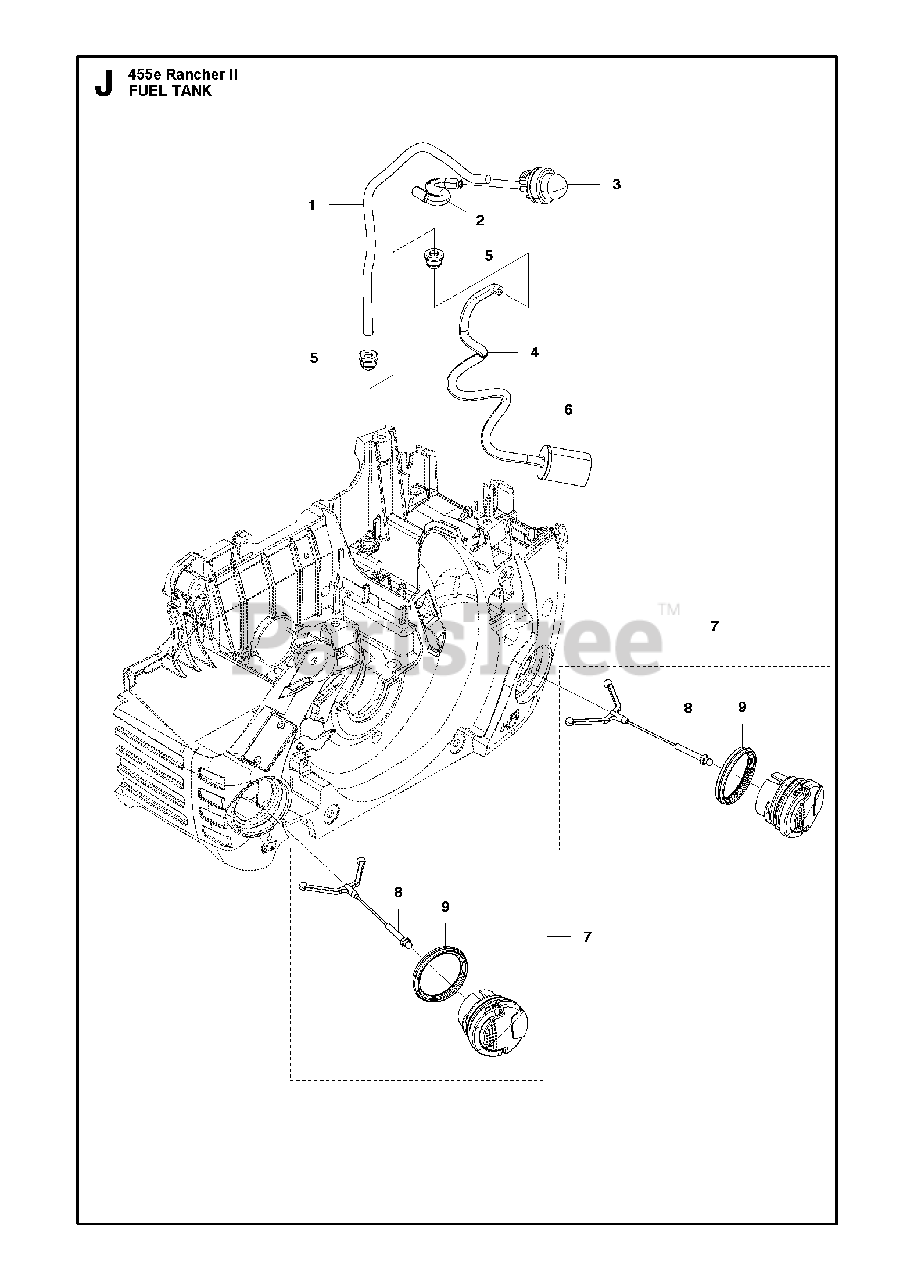

455 e RANCHER II - Husqvarna Chainsaw (2012-06) FUEL TANK Parts Diagram

Chainsaw

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 537042405

FUEL HOSE

$6.99

$

In Stock, only 1 left!

0

2

Husqvarna 523056801

FUEL HOSE

$5.99

$

In Stock, only 1 left!

0

3

Husqvarna 503936601

AIR PURGE BUBBLE

$24.99

$

In Stock, Qty 20+

0

4

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 9

0

5

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$1.49

$

In Stock, Qty 20+

0

6

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

7

Husqvarna 522620001

TANK CAP ASSY
(Superseded to 522620003)

$9.49

$

In Stock, Qty 6

0

8

Husqvarna 503578903

HOLDER
(Superseded to 503578901)

Note: . 7

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 537215001

SEALING
(Superseded to 589241101)

Note: . 7

$6.99

$

In Stock, Qty 5

0
