455 RANCHER - Husqvarna Chainsaw (2009-10) Clutch & Oil Pump Parts Diagram

Chainsaw

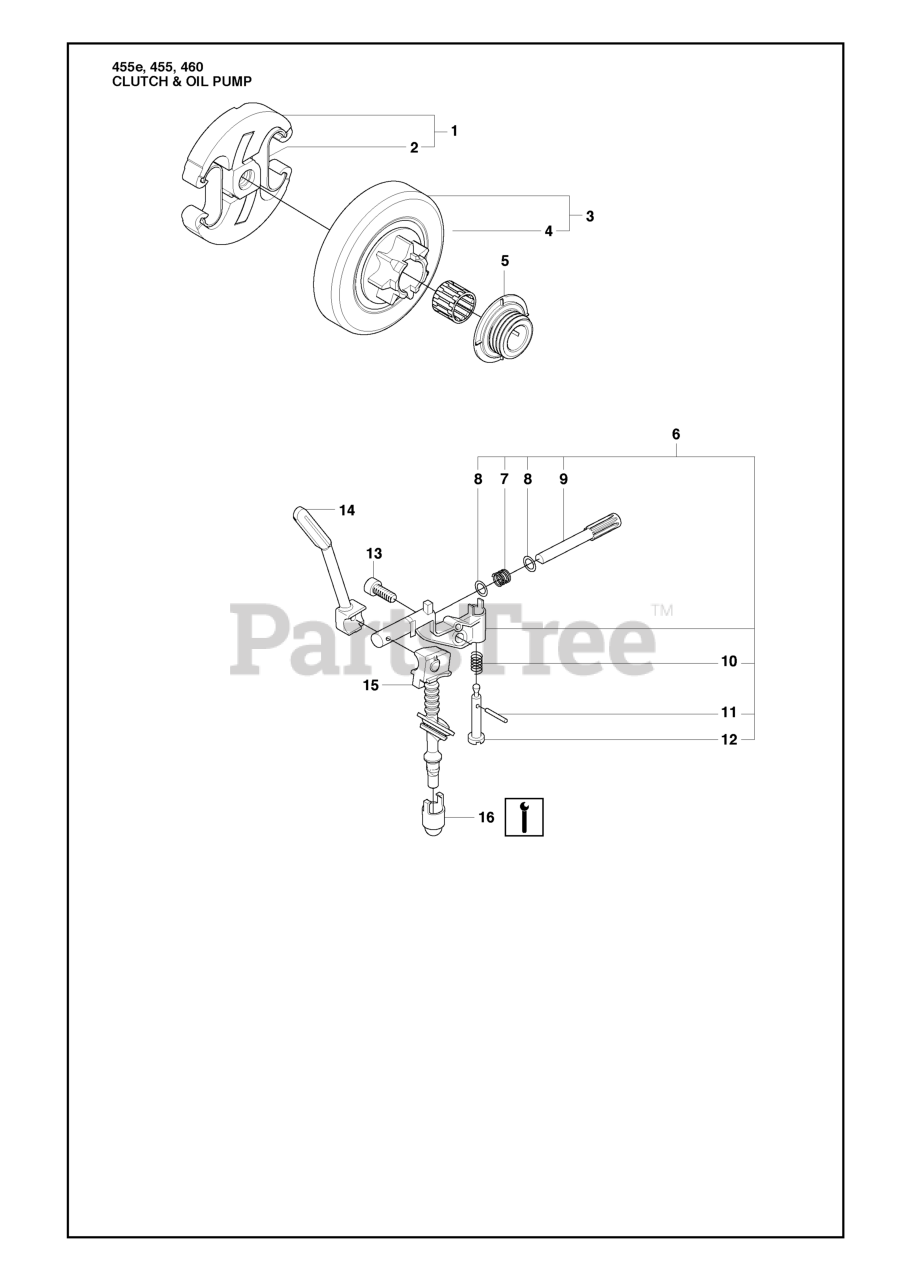

Clutch & Oil Pump Parts Diagram

  • Title

1

Husqvarna 537110503

CLUTCH

$45.99

$

In Stock, Qty 17

0

2

Husqvarna 537359101

SPRING

$7.49

$

In Stock, Qty 8

0

3

Husqvarna 537291702

CLUTCH DRUM

Note: .325"x7 SPUR

$33.99

$

In Stock, only 1 left!

0

3

Husqvarna 537291602

CLUTCH DRUM
(Superseded to 537291604)

Note: 3/8"x7 SPUR

$35.99

$

In Stock, Qty 5

0

4

Husqvarna 503255201

NEEDLE BEARING

$

$

Not available

5

Husqvarna 537252601

GEAR WORM OILER
(Superseded to 598718301)

$14.99

$

In Stock, Qty 6

0

6

Husqvarna 544180104

OIL PUMP ASSY

$45.99

$

In Stock, only 3 left!

0

7

Husqvarna 503891601

SPRING

$8.49

$

In Stock, only 3 left!

0

8

Husqvarna 503230060

WASHER

$2.49

$

In Stock, only 1 left!

0

9

Husqvarna 537069302

PUMP PISTON

$20.99

$

In Stock, only 2 left!

0

10

Husqvarna 503891501

SPRING

$5.99

$

In Stock, Qty 7

0

11

Husqvarna 721116430

PIN

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 537027101

ADJUSTER

$9.99

$

In Stock, only 1 left!

0

13

Husqvarna 503217416

SCREW

$4.99

$

In Stock, Qty 6

0

14

Husqvarna 537261501

OIL HOSE

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537261401

RP OIL HOSE
(Superseded to 537261402)

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 510044301

OIL SCREEN

$5.99

$

Usually ships in 3-10 days

0
