45666 - Gravely Front Mount for 2-Wheel Tractor FRONT MOUNT KIT Parts Diagram

Front Mount for 2-Wheel Tractor

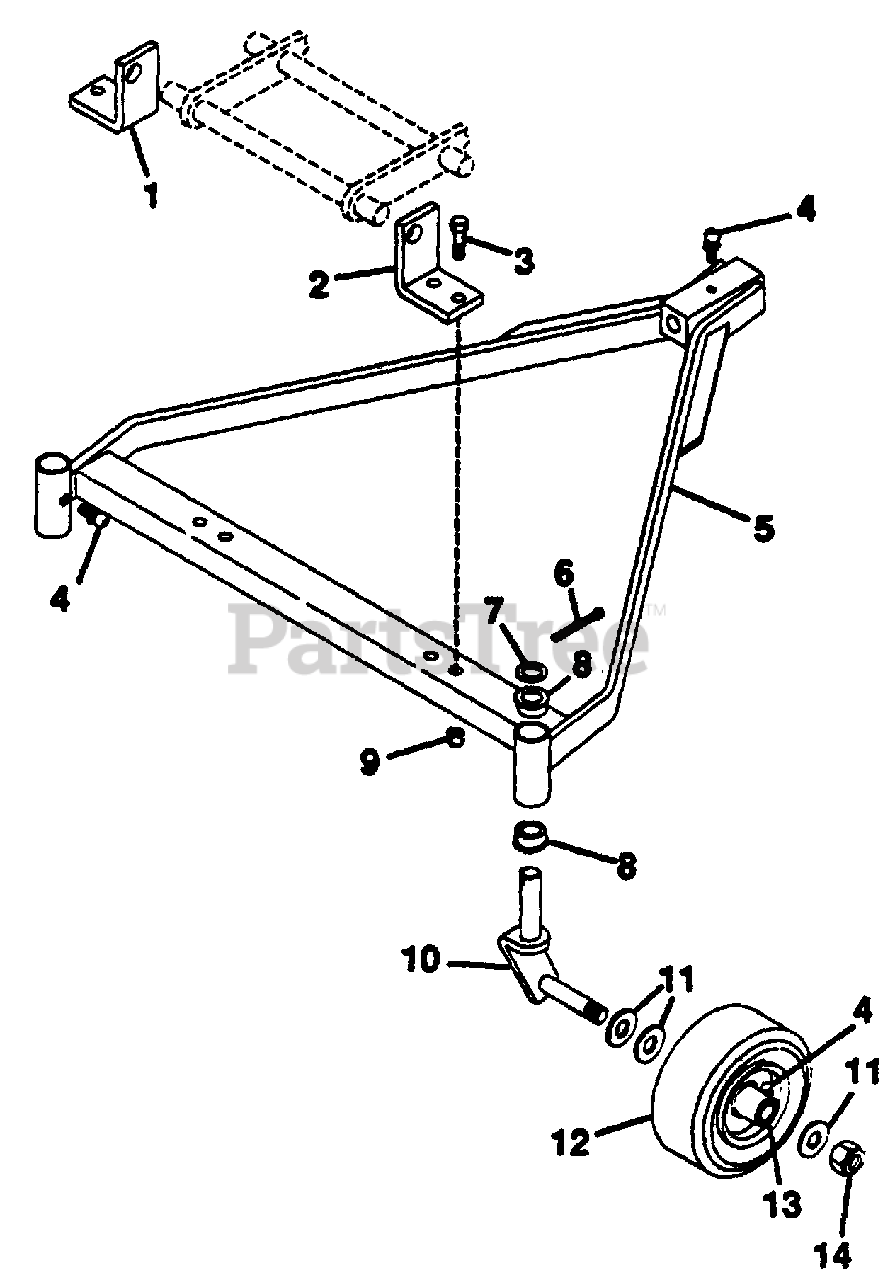

FRONT MOUNT KIT Parts Diagram

  • Title

1

Gravely 040838

Support, Pivot Arm R.H.
(Superseded to 08544700)

$

$

Not available

2

Gravely 040839

Support, Pivot Arm L.H.
(Superseded to 08544800)

$

$

Not available

3

Gravely 180124

Bolt, Hex 3/8-16x1.25
(Superseded to 05901724)

$1.99

$

In Stock, only 3 left!

0

4

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

5

Gravely 045544

Weldment, Frame
(Superseded to 08560400)

$

$

Not available

6

Gravely 137253

Pin, Cotter .187x1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$5.49

$

In Stock, Qty 10

0

8

Gravely 018355

Bushing, Pivot
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 044680

Weldment, Caster Fork
(Superseded to 08954653)

$230.99

$

Usually ships in 4-12 days

0

11

Gravely 131017

Washer, Flat .812x1.496x.134
(Superseded to 06426000)

$1.99

$

In Stock, Qty 16

0

12

Gravely 045205

Wheel, Gauge
(Superseded to 07130100)

$119.99

$

In Stock, only 4 left!

0

13

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$20.99

$

In Stock, only 3 left!

0

14

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$6.99

$

In Stock, Qty 6

0
