457 (590-457-000) - Cub Cadet Backhoe att Console Valve 457 Backhoe Parts Diagram

Backhoe

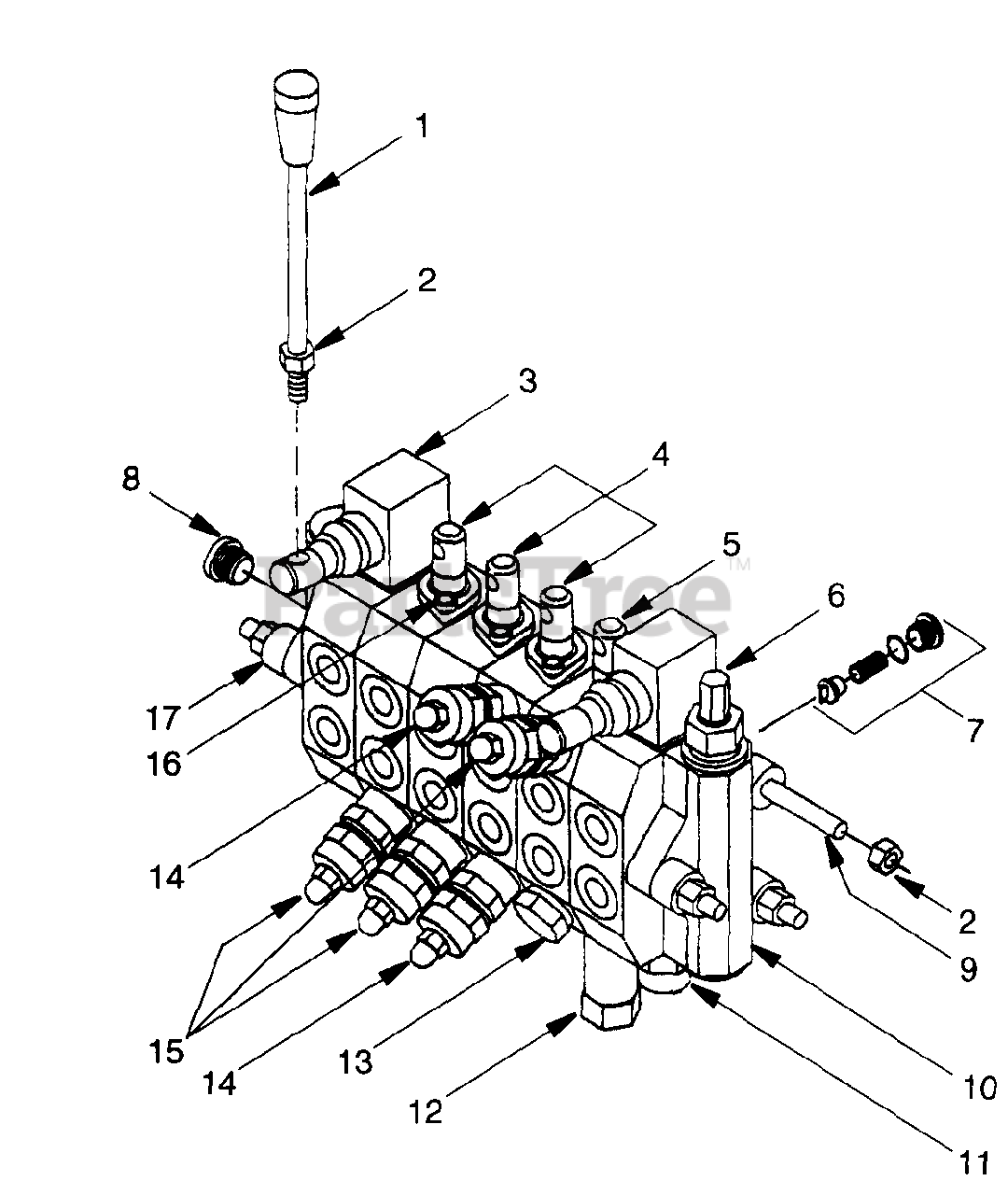

Console Valve 457 Backhoe Parts Diagram

  • Title

1

Cub Cadet WM-38629

Stabilizer Control Handle

$

$

Not available

2

Cub Cadet WM-30515

Hex Nut, 8mm x 1.25P
(Superseded to 712-3077)

$

$

Not available

3

Cub Cadet WM-38628-1

Stabilizer Control Assy

$

$

Not available

4

Cub Cadet WM-38625

Valve Spool Section w/Out Relief

$

$

Not available

5

Cub Cadet WM-38624

Boom Section w/Relief

$

$

Not available

6

Cub Cadet WM-34368

Relief Valve Assy

$

$

Not available

7

Cub Cadet WM-33339

Check Valve Assy

$

$

Not available

8

Cub Cadet WM-38632

Plug, 3/4 SAE M w/O-ring
(Superseded to WM-38632-1)

$

$

Not available

9

Cub Cadet WM-33440

Hex Hd Cap Scrw, 8mm x1.25P x 276mm

$

$

Not available

10

Cub Cadet WM-38622

Valve Inlet Section

$

$

Not available

11

Cub Cadet WM-33345

Spool Position Control Assy

$

$

Not available

12

Cub Cadet WM-33343

Spool Position Control Assy

$

$

Not available

13

Cub Cadet WM-38631-1

Plug, Port Relief Cavity

$

$

Not available

14

Cub Cadet WM-38630

Port Relief Valve/Anit-Cav 2100psi

$

$

Not available

15

Cub Cadet WM-33341

Shock Dampening Valve, 2500psi

$336.99

$

In Stock, only 1 left!

0

16

Cub Cadet WM-37524

Hex Hd Cap Screw, 5mm x.8P x 12mm

$

$

Not available

17

Cub Cadet WM-38623

Valve Outlet Section

$

$

Not available

Cub Cadet WM-33338

Section Seal Repair Kit

$

$

Not available

Cub Cadet WM-33346

Spool Repair Kit

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet WM-37560

Complete Valve, 6 Spool, 2100psi

$

$

Not available
