457 (590-457-000) - Cub Cadet Backhoe Dipperstick Assembly 457 Backhoe Parts Diagram

Backhoe

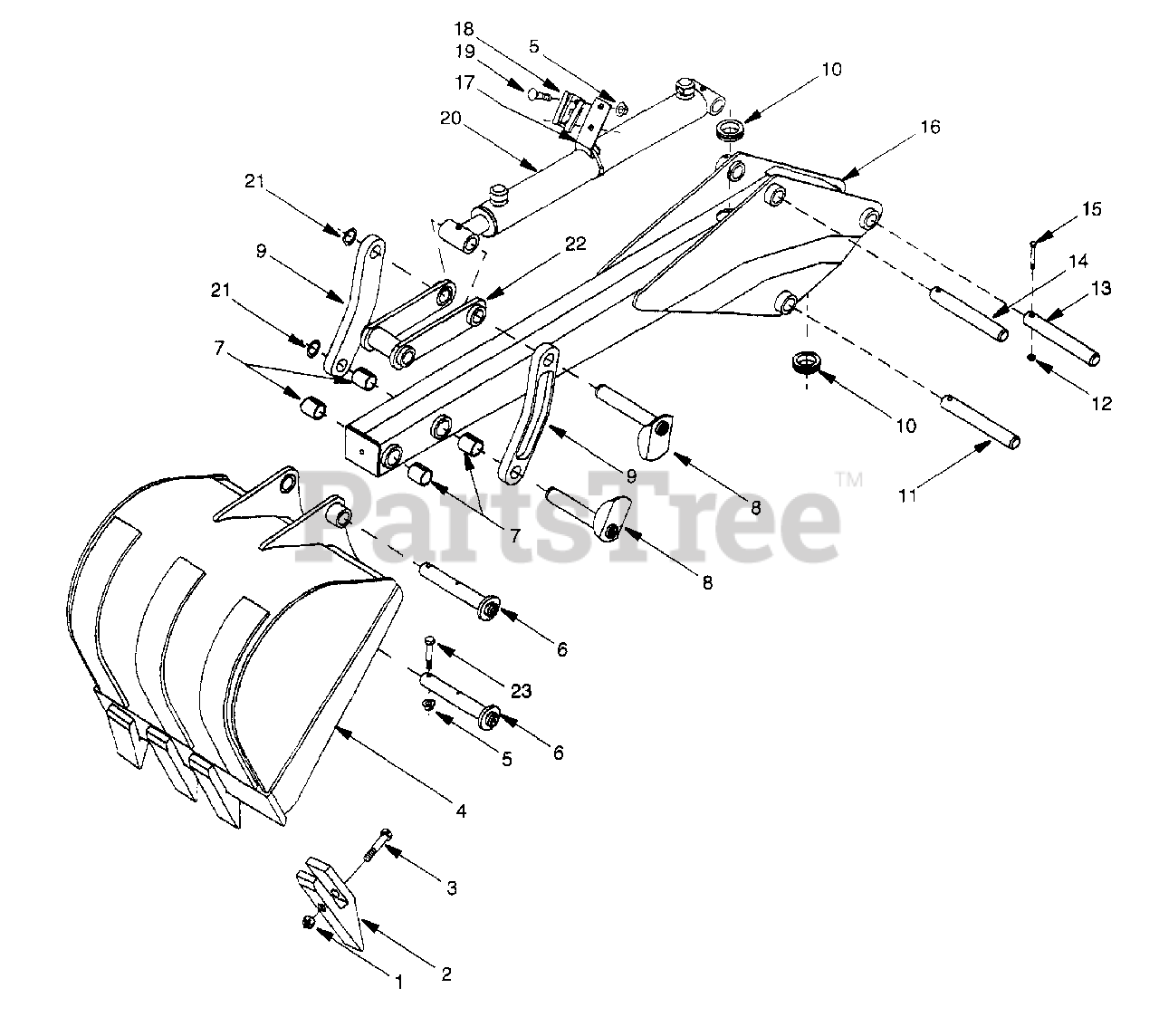

Dipperstick Assembly 457 Backhoe Parts Diagram

  • Title

1

Hex Locknut, 7/16 NC

Note: Purchase Locally

$

$

Not available

2

Cub Cadet WM-D1070

Shank, 7.5 x 1.9375

$

$

Not available

3

Hex Hd Cap Screw, 7/16 NC x 1.75 GR5

Note: Purchase Locally

$

$

Not available

4

Cub Cadet WM-37708

8" Bucket, BH7500

$

$

Not available

Cub Cadet WM-37712

12" Bucket, BH7500

$

$

Not available

Cub Cadet WM-37716

16" Bucket, BH7500

$

$

Not available

Cub Cadet WM-37718

18" Bucket, BH7500

$

$

Not available

Cub Cadet WM-37724

24" Bucket, BH7500

$

$

Not available

5

Cub Cadet WM-14139

Flange Hex Locknut, 5/16 NC

$

$

Not available

6

Cub Cadet WM-37625

Clevis Pin, 1.0 x 5.77

$

$

Not available

7

Cub Cadet WM-34017

Tension Bushing, 1 x 1.25 x 1.5

$

$

Not available

8

Cub Cadet WM-37624

Clevis Pin, 1.0 x 5.81

$

$

Not available

9

Cub Cadet WM-37768

Guide Link, 1.00 Dia. x 9.00

$

$

Not available

10

Cub Cadet WM-37626

Grommet, .19 x 1.5 x 1.75

$

$

Not available

11

Cub Cadet WM-37690

Pin, 1.0 x 7.3 x 7.69

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55230

Pin, 1.0 x 7.21 x 7.8

Note: (S# 10120 & After)

$

$

Not available

12

Cub Cadet WM-6128

Hex Locknut, 1/4 NC
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet WM-37692

Pin, 1.0 x 4.86 x 5.31

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55242

Pin, 1.0 x 5.15 x 5.69

Note: (S# 10120 & After)

$

$

Not available

14

Cub Cadet WM-37691

Pin, 1.0 x 5.23 x 5.69

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55242

Pin, 1.0 x 5.15 x 5.69

Note: (S# 10120 & After)

$

$

Not available

15

Cub Cadet WM-37531

Hex Hd Cap Screw, 1/4 NC x 2.5 GR8

$

$

Not available

16

Cub Cadet WM-38670

Dipperstick

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55233

Dipperstick

Note: (S# 10120 & After)

$

$

Not available

17

Cub Cadet WM-62263

Bracket Socket, SMV

$

$

Not available

18

Cub Cadet WM-62484

Socket, SMV Emblem

$

$

Not available

19

Cub Cadet WM-62532

Carriage Bolt, 5/16 NC x 1/2
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet WM-37592

Hyd Cylinder, Double Acting 2 x 16.75
(Superseded to WM-37592P)

$

$

Not available

21

Cub Cadet WM-62102

External Retaining Ring, .042 x .925

$

$

Not available

22

Cub Cadet WM-37602

Bucket Link

$

$

Not available

23

Cub Cadet WM-10509

Hex Hd Cap Screw, 5/16 x 2.5 GR5
(Superseded to 710-0378)

$4.49

$

In Stock, only 3 left!

0
