457 (590-457-000) - Cub Cadet Backhoe Swing Cylinder 457 Backhoe Parts Diagram

Backhoe

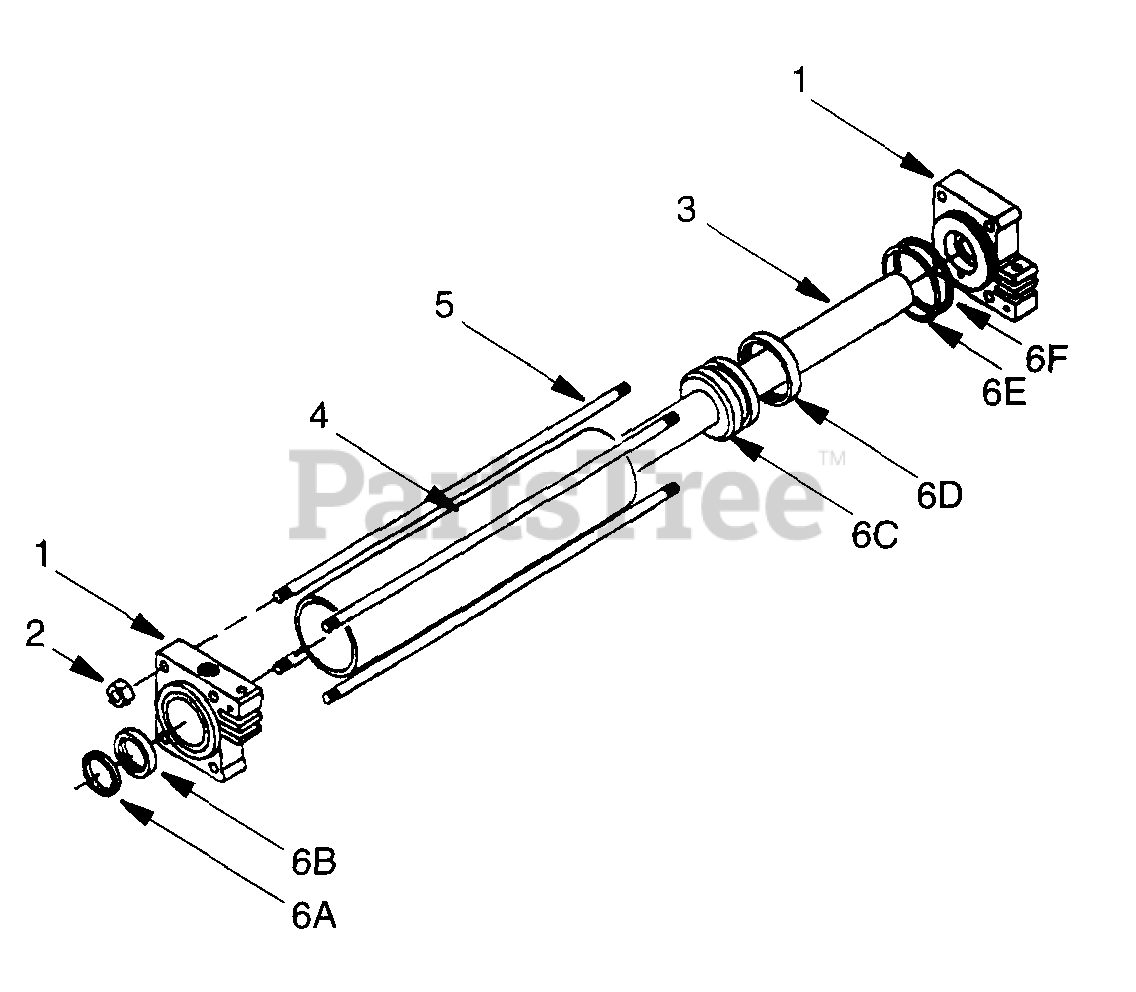

Swing Cylinder 457 Backhoe Parts Diagram

  • Title

1

Cub Cadet WM-37875

Guide, 2.5 OD x 1.25 ID

$

$

Not available

2

Cub Cadet WM-29685

Hex Nut, 7/16 NC

$

$

Not available

3

Cub Cadet WM-37874

Piston Rod Assy, 1.25 x 2.5

$

$

Not available

4

Cyl Tube,

Note: (Not Available Separately)

$

$

Not available

5

Cub Cadet WM-64873

Tie Rod, .385 Dia x 16

$

$

Not available

?6

Cub Cadet WM-37873

Seal Kit

Note: (Incl Ref # 6A-6F)

$

$

Not available

6A

Rod Wiper, 1.25 ID x 1.5 OD

$

$

Not available

6B

U-Cup Seal, 1 1/4 x 1 5/8 x 5/16

$

$

Not available

6C

O-ring, 3/4 x 7/8

$

$

Not available

6D

Piston Seal, 2.5

$

$

Not available

6E

O-ring, 2.25 x 2.5

$

$

Not available

6F

Back-up Ring, 2.25 x 2.5

$

$

Not available

Cub Cadet WM-37594

Hyd Cylinder Complete 2 1/2 x 10 5/8

$

$

Not available
