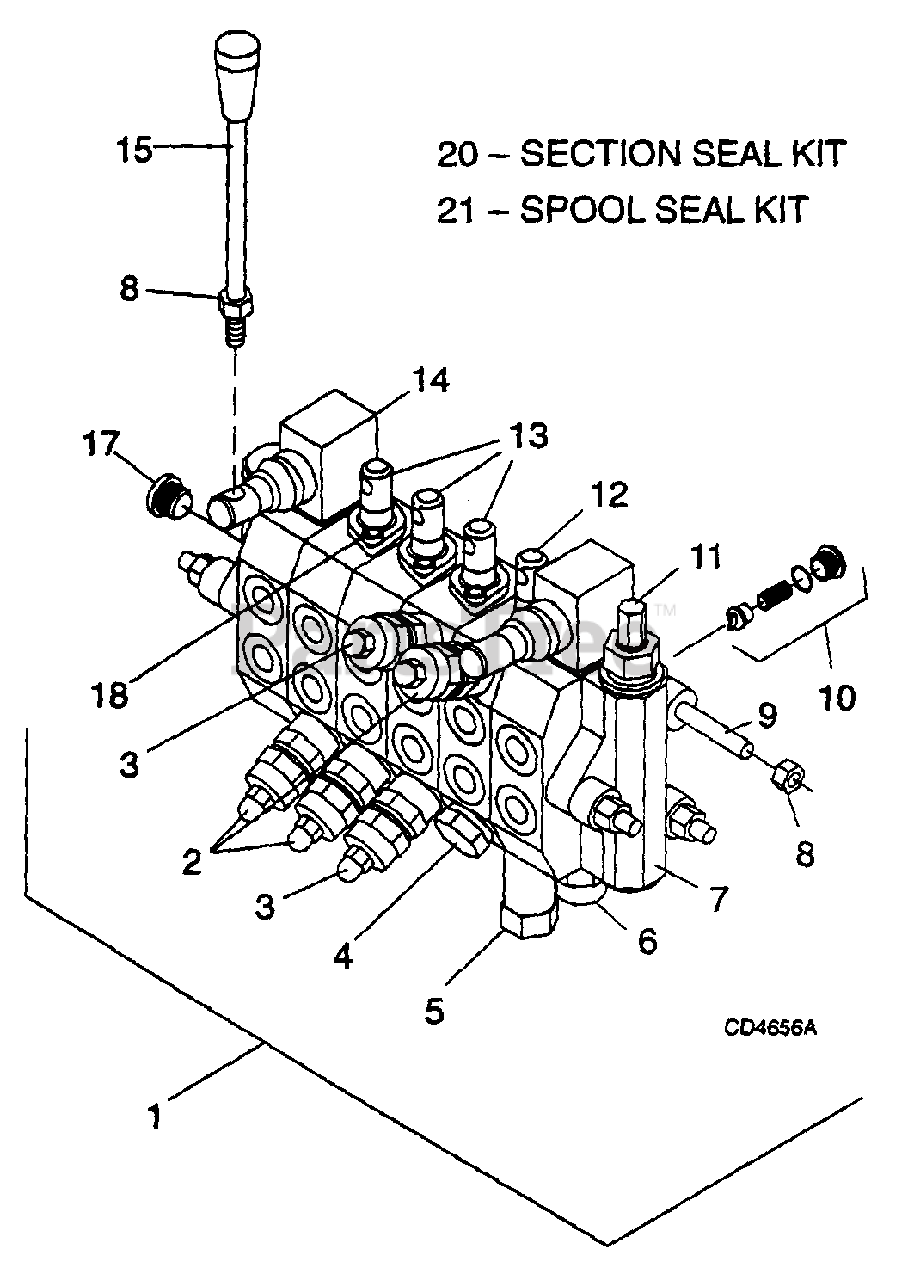

458 (590-458-100) - Cub Cadet Backhoe Console Valve Parts Diagram

Backhoe

Console Valve Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

Cub Cadet WM-33341

Shock/dampening valve 2500 psi

$336.99

$

In Stock, only 1 left!

0

3

Cub Cadet WM-38630

Port relief valve/anit-cav 2100 psi

$

$

Not available

4

Cub Cadet WM-38631

Plug, Port relief cavity
(Superseded to WM-38631-1)

$

$

Not available

5

Cub Cadet WM-33343

Spool position control assembly

$

$

Not available

6

Cub Cadet WM-33345

Spool position control assembly

$

$

Not available

7

Cub Cadet WM-38622

Valve inlet section

$

$

Not available

8

Cub Cadet WM-30515

8mm x 1.25P Hex nut
(Superseded to 712-3077)

$

$

Not available

9

Cub Cadet WM-33440

8mm x 1.25P x 276mm Hex head cap screw

$

$

Not available

10

Cub Cadet WM-33339

Check valve assembly

$

$

Not available

11

Cub Cadet WM-34368

Relief valve assembly

$

$

Not available

12

Cub Cadet WM-38624

Boom section with relief

$

$

Not available

13

Cub Cadet WM-38625

Valve spool section without relief

$

$

Not available

14

Cub Cadet WM-38628

Control assembly - Stabilizer
(Superseded to WM-38628-1)

$

$

Not available

15

Cub Cadet WM-38629

Control handle - Stabilizer

$

$

Not available

17

Cub Cadet WM-38632

Plug, 3/4 SAE M with O-ring
(Superseded to WM-38632-1)

$

$

Not available

18

Cub Cadet WM-37524

5mm x .8P x 12mm Hex head cap screw

$

$

Not available

20

Cub Cadet WM-33338

Section seal repair kit

Note: (Not shown)

$

$

Not available

21

Cub Cadet WM-33346

Spool repair kit

Note: (Not shown)

$56.99

$

Usually ships in 3-6 days

0
