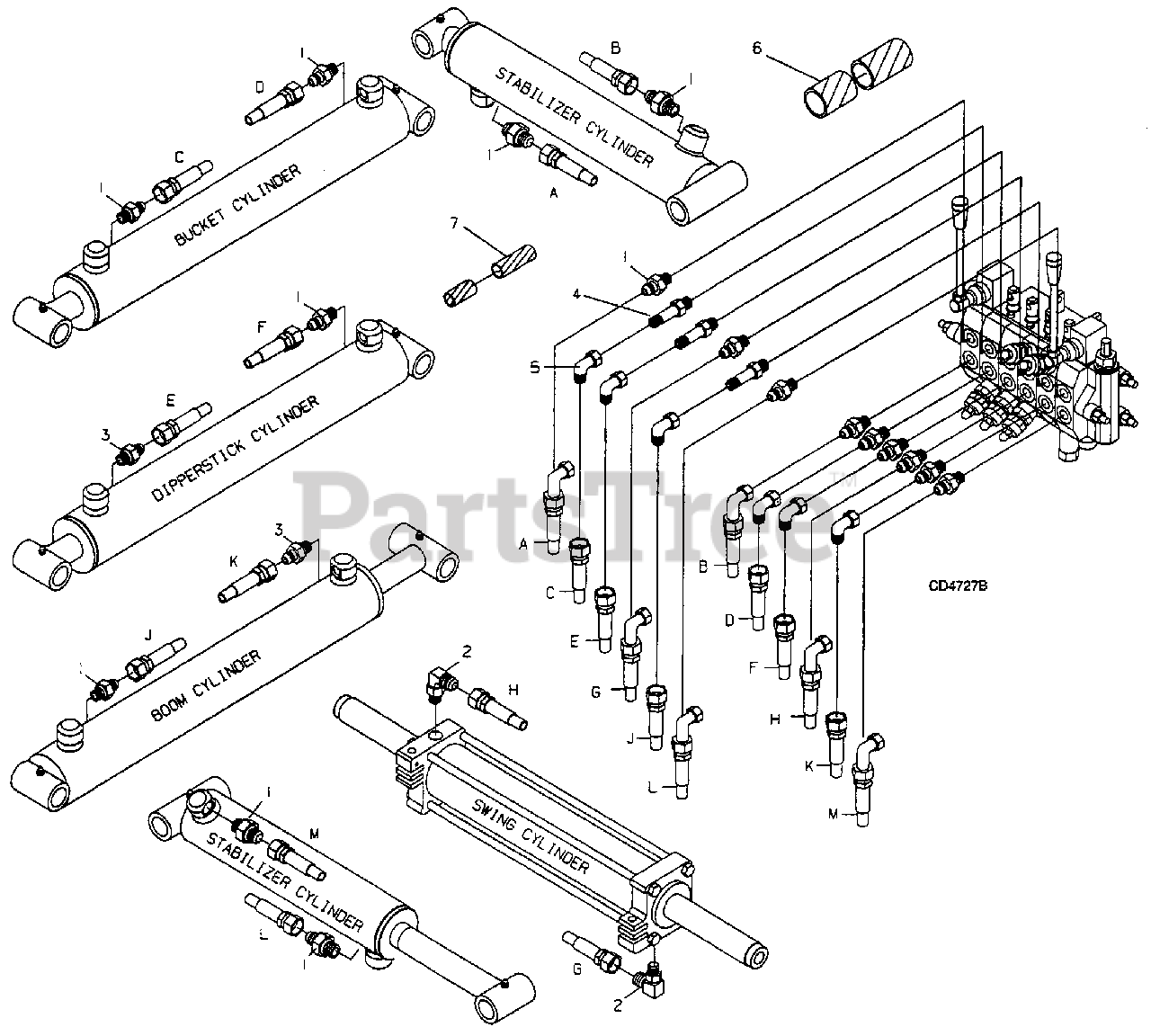

458 (590-458-100) - Cub Cadet Backhoe Hoses & Fittings Parts Diagram

Backhoe

Hoses & Fittings Parts Diagram

  • Title

1

Cub Cadet WM-62367

9/16 - 18 To O-Ring connector

$

$

Not available

2

Cub Cadet WM-63558

9/16 x 9/16 Swivel elbow

$

$

Not available

3

Cub Cadet WM-37508

9/16 JIC M x 9/16 SAE M Adapter with 3/32 restrictor

$

$

Not available

4

Cub Cadet WM-38605

Adapter, Straight 9/16-18 x 1.9

$

$

Not available

5

Cub Cadet WM-38604

Elbow, 9/16-18 swivel x 9/16-18 tube

$

$

Not available

6

Cub Cadet WM-37864

4" DIA x 34" Sleeve

$

$

Not available

7

Cub Cadet WM-37988

1" DIA x 15" Sleeve

$

$

Currently unavailable

A

Cub Cadet WM-37860

Hose - 1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available

B

Cub Cadet WM-37860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 45

$

$

Not available

C

Cub Cadet WM-38673

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 94

$

$

Not available

D

Cub Cadet WM-38673

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 94

$

$

Not available

E

Cub Cadet WM-62860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 72

$

$

Not available

F

Cub Cadet WM-62860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 72

$

$

Not available

G

Cub Cadet WM-37860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 45

$

$

Not available

H

Cub Cadet WM-37860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 45

$

$

Not available

J

Cub Cadet WM-38606

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 57

$

$

Not available

K

Cub Cadet WM-38606

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 57

$

$

Not available

L

Cub Cadet WM-37860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 45

$

$

Not available

M

Cub Cadet WM-37860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 45

$

$

Not available

M

Cub Cadet WM-37860

Hose - 1/4 X 9/16 JICF x 9/16 JICF x 45

$

$

Not available
