458 (590-458-100) - Cub Cadet Backhoe

Backhoe

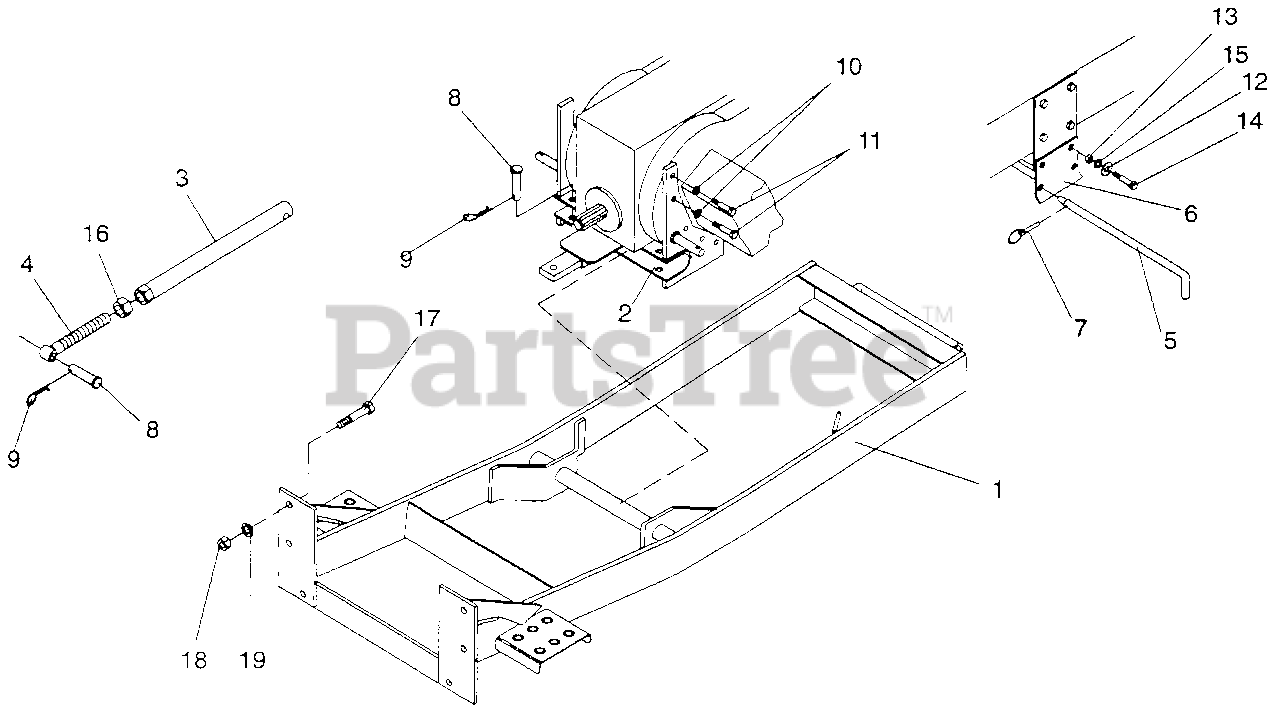

458 (590-458-100) - Cub Cadet Backhoe > Parts Diagrams (12) > Sub-Frame & Mounting Brackets

  • Title
WM-55038-1

1

Backhoe sub-frame 24.4 x 74 assembly

Part# WM-55038-1

OEM Warranty Repair Part for Cub Cadet

Not available

WM-55026

2

Rear mounting bracket assembly

Part# WM-55026

OEM Warranty Repair Part for Cub Cadet

Not available

WM-62540

3

Outer link assembly, 19.5

Part# WM-62540

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.60

WM-2688

4

Inner top link assembly

Part# WM-2688

OEM Warranty Repair Part for Cub Cadet

Currently unavailable

WM-55041

5

3/4 x 17.75 Lock pin

Part# WM-55041

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $133.79

WM-62674

6

Front mounting bracket assembly

Part# WM-62674

OEM Warranty Repair Part for Cub Cadet

Not available

WM-1450

7

1/4 x 1-3/4 Klik pin

Part# WM-1450 (Superseded to 712-3107)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.44

WM-64954

8

3/4 x 3-1/4 Clevis pin

Part# WM-64954

OEM Warranty Repair Part for Cub Cadet

Not available

WM-735

9

1/8 Hairpin cotter

Part# WM-735

OEM Warranty Repair Part for Cub Cadet

Currently unavailable

WM-2522

10

9/16 Standard lockwasher

Part# WM-2522 (Superseded to 936-0364)

OEM Warranty Repair Part for Cub Cadet

Not available

WM-30-7208

11

10 mm x 1.5P x 85 mm Hex head cap screw

Part# WM-30-7208

OEM Warranty Repair Part for Cub Cadet

Not available

WM-854

12

1/2 Washer

Part# WM-854

OEM Warranty Repair Part for Cub Cadet

Not available

WM-15031

13

1/2 Locknut

Part# WM-15031

OEM Warranty Repair Part for Cub Cadet

Not available

WM-3379

14

1/2 NC x 1-1/2 Hex head cap screw

Part# WM-3379

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.48

WM-855

15

1/2 Lockwasher

Part# WM-855 (Superseded to 936-0921)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.89

WM-3132

16

1 Hex nut

Part# WM-3132

Note: Obtain Locally

OEM Warranty Repair Part for Cub Cadet

Not available

WM-735

17

3/4 NC x 2 Hex head cap screw

Part# WM-735

Note: Obtain Locally

OEM Warranty Repair Part for Cub Cadet

Currently unavailable

WM-1450

18

3/4 NC Nut

Part# WM-1450 (Superseded to 712-3107)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.44

WM-2522

19

3/4 Lockwasher

Part# WM-2522 (Superseded to 936-0364)

OEM Warranty Repair Part for Cub Cadet

Not available
