458 A (190-458A-100) - Cub Cadet 15 Cubic Feet Utility Cart att Dump Cart Parts Diagram

15 Cubic Feet Utility Cart

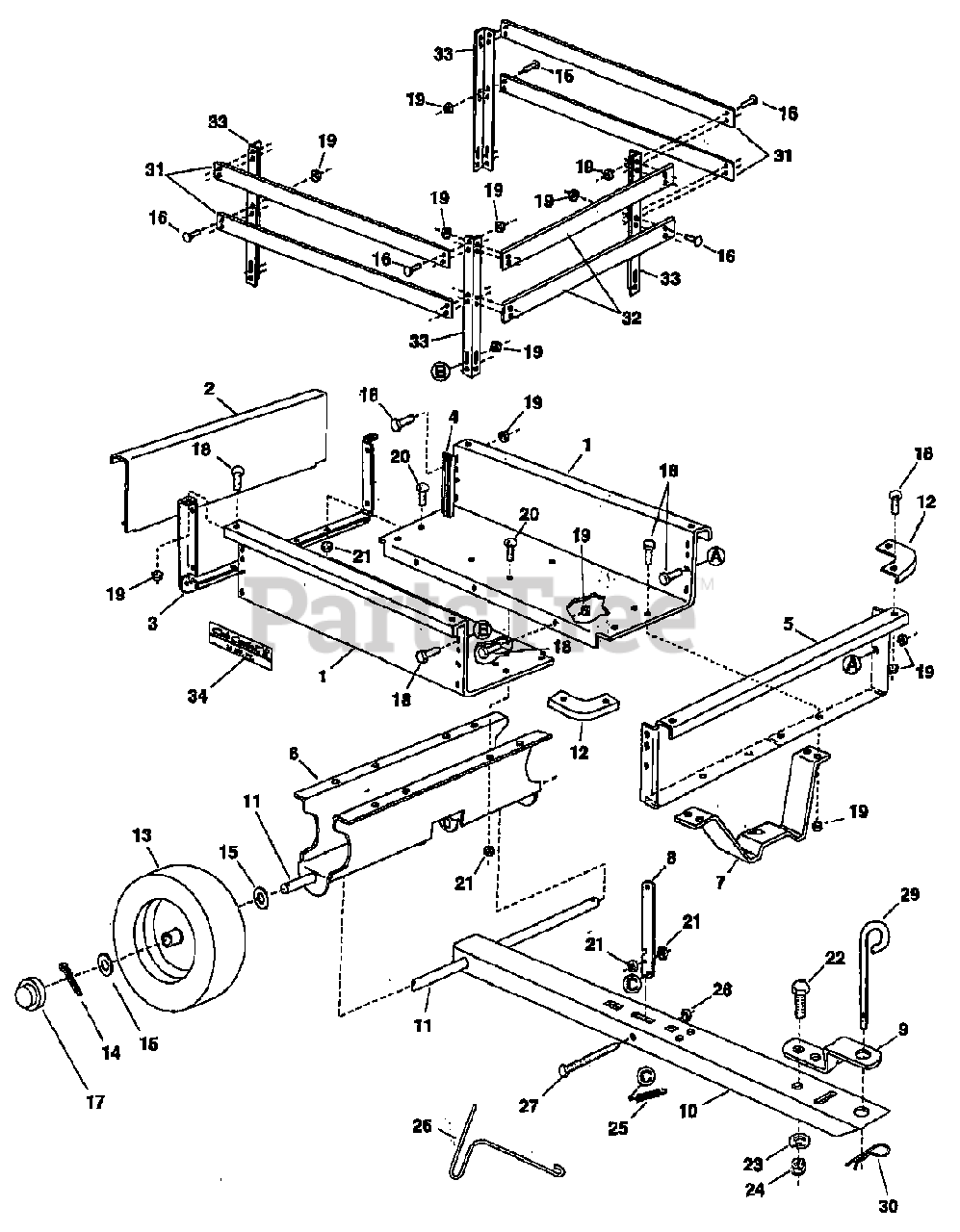

Dump Cart Parts Diagram

  • Title

1

Cub Cadet AF-23985

Cart Body

Variations

Cub Cadet AF-23985-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23985-0650

CART BODY - RED METALLIC (0650)

$

$

Not available

$

$

2

~NLA

Tailgate

$

$

Not available

3

Cub Cadet AF-62458

Tailgate Reinforcement Bracket

Variations

Cub Cadet AF-62458-0637

ANGLE ASSEMBLY-REAR POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet AF-23548

Guide, Tailgate

$

$

Not available

5

Cub Cadet AF-23492

Front Panel

Variations

Cub Cadet AF-23492-0498

PANEL-FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23492-0499

PANEL-FRONT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23492-0650

FRONT PANEL - RED METALLIC (0650)

$

$

Not available

$

$

6

Cub Cadet AF-23506

Wheel Support
(Superseded to AF-23506-0637)

Variations

Cub Cadet AF-23506-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet AF-24497

Latch Stand Bracket
(Superseded to AF-24497-0637)

Variations

Cub Cadet AF-24497-0637

BRACKET-LATCH STAN - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-24498

Latch Lock Lever
(Superseded to AF-24498BL1)

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet AF-23014

Hitch Bracket
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-24749

Draw Bar Tongue

$

$

Not available

11

Cub Cadet AF-24896

Axle, Wheel 3/4" Dia.

$

$

Not available

12

Cub Cadet AF-23484

Cap, Front Corner

Variations

Cub Cadet AF-23484-0498

CAP-FRONT CORNER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23484-0499

FRONT CORNER CAP (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23484-0650

CAP-FRONT CORNER - RED METALLIC (0650)

$

$

Not available

$

$

13

Cub Cadet AF-48709

Wheel

$

$

Not available

14

Cub Cadet 917-0470

Cotter Pin, 1/8" Dia. x 1"

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

15

Washer, Flat 3/4"

Note: Purchase Common Hardware Locally

$

$

Not available

16

Carriage Bolt, 1/4-20 x 1"

Note: Purchase Common Hardware Locally

$

$

Not available

17

Cub Cadet 931-0484A

Hub Cap

$6.99

$

In Stock, Qty 20+

0

18

Hex Bolt, 1/4-20 x 1/2"

Note: Purchase Common Hardware Locally

$

$

Not available

19

Hex Nut, 1/4-20 (SEMS)

Note: Purchase Common Hardware Locally

$

$

Not available

20

Cub Cadet AF-43814

Truss Hd. Bolt, 5/16-18 x 3/4" Lg.

Note: Purchase Common Hardware Locally

$

$

Not available

21

Cub Cadet AF-46980

Hex Nut, 5/16-18 (SEMS)
(Superseded to 712-0265)

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 910-0253

Hex Bolt, 3/8-16 x 1" Lg.
(Superseded to 710-0514)

Note: Purchase Common Hardware Locally

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 936-0169

Look Washer, 3/8"
(Superseded to 736-0169)

Note: Purchase Common Hardware Locally

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 912-0798

Hex nut, 3/8-16
(Superseded to 712-0798)

Note: Purchase Common Hardware Locally

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet AF-47408

Extension Spring

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet AF-47622

Spring Puller

$3.99

$

In Stock, Qty 20+

0

27

Flex Bolt, 5/16-18 x 3-3/4

Note: Purchase Common Hardware Locally

$

$

Not available

28

Cub Cadet 912-0158

Hex Lock Nut, 5/16-18

Note: Purchase Common Hardware Locally

$3.49

$

In Stock, Qty 14

0

29

Cub Cadet AF-23353

Hitch Pin

$41.99

$

Usually ships in 3-6 days

0

30

Cub Cadet AF-43343

Hair Cotter Pin, 1/8" (#4)

Note: Purchase Common Hardware Locally

$13.99

$

Usually ships in 3-6 days

0

31

Cub Cadet AF-23088

Side Board

$

$

Not available

32

Cub Cadet AF-23089

Front Board

$

$

Not available

33

Cub Cadet AF-23086

Angle Bracket

$

$

Not available

34

Cub Cadet AF-48522

Decal

$

$

Not available
