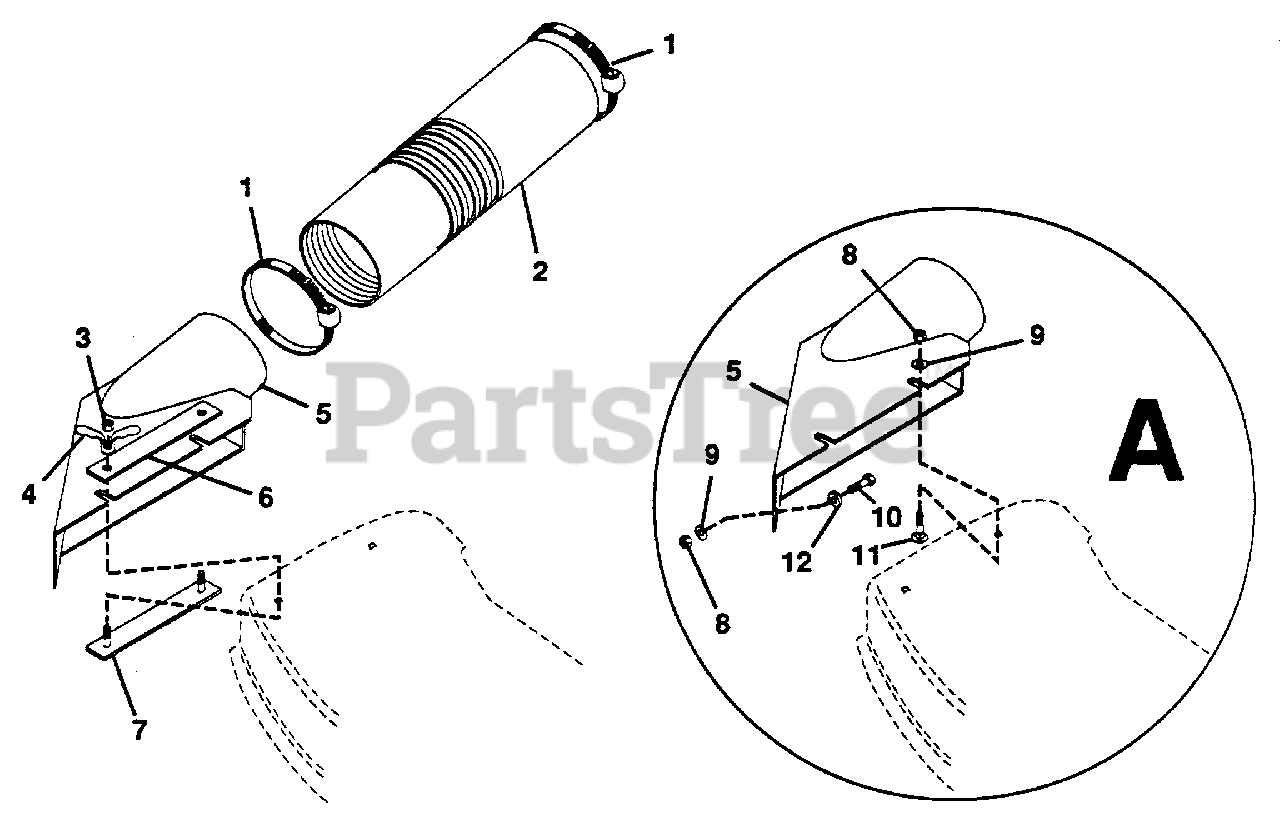

45817 - Gravely 40" Grass Bagger Boot for 4-Wheel Tractor BOOT KIT Parts Diagram

40" Grass Bagger Boot for 4-Wheel Tractor

BOOT KIT Parts Diagram

  • Title
1

Gravely 036996

Clamp
(Superseded to 03022400)

$16.71

$

Usually ships in 4-12 days

0

2

Gravely 036986

Hose, Mower to Blower
(Superseded to 08706300)

$

$

Not available

3

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

4

Gravely 045673

Nut, Wing 3/8-16
(Superseded to 07500109)

$3.52

$

In Stock, Qty 6

0

5

Gravely 037841

Boot, 40"
(Superseded to 08739853)

$

$

Not available

Gravely 037840

Boot, 50"
(Superseded to 08925953)

$

$

Not available

6

Gravely 045626

Plate, 40" Boot
(Superseded to 08769300)

$

$

Not available

Gravely 045627

Plate, 50" Boot
(Superseded to 08970900)

$

$

Not available

7

Gravely 045628

Weldment, 40" Boot Clamp
(Superseded to 08769400)

$

$

Not available

Gravely 045629

Weldment, 50" Boot Clamp
(Superseded to 08971000)

$

$

Not available

8

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.24

$

In Stock, Qty 17

0

9

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 11

0

10

Gravely 180122

Bolt, Hex 3/8-16x1.00(50" Mower Only)
(Superseded to 05901711)

Note: (50" Mower Only)

$2.80

$

In Stock, Qty 20+

0

Gravely 180124

Bolt, Hex 3/8-16x1.25(40" Mower Only)
(Superseded to 05901724)

Note: (40" Mower Only)

$2.18

$

In Stock, Qty 11

0

11

Gravely 126227

Bolt, Carriage 3/8-16x.75
(Superseded to 06200312)

$2.24

$

In Stock, only 2 left!

0

12

Gravely 012657

Bushing(40" Mower Only)
(Superseded to 08536300)

Note: (40" Mower Only)

$13.92

$

Usually ships in 4-12 days

0
