45926 - Gravely 60" Deck for Pro-Master 300 Mower MOWER FRAME Parts Diagram

60" Deck for Pro-Master 300 Mower

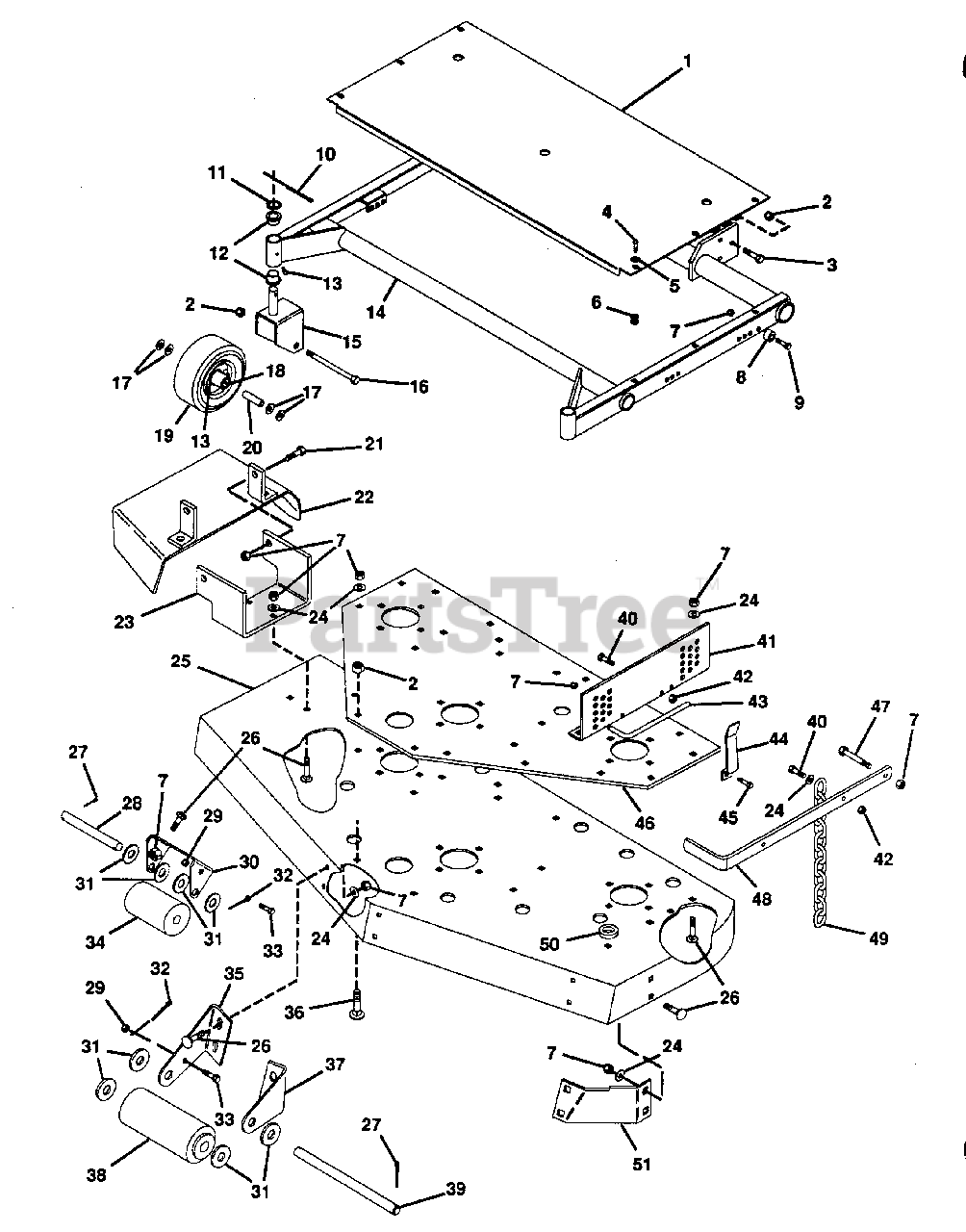

MOWER FRAME Parts Diagram

  • Title

1

Gravely 045929

GUARD, BELT 60" PM 18-H MOWER
(Superseded to 08960500)

$147.99

$

Usually ships in 4-12 days

0

2

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 160536

SCREW, MACH. 1/4-20X.625 RD HD
(Superseded to 06113400)

$

$

Not available

5

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

6

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 11

0

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 021076

BUSHING .391X.622X.670
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

9

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

10

Gravely 137253

PIN, COTTER .187X1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

12

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

13

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

14

Gravely 045591

WELDMENT, MOWER FRAME
(Superseded to 21275700)

$

$

Not available

15

Gravely 045523

WELDMENT, CASTER FORK
(Superseded to 08969153)

$341.99

$

Usually ships in 4-12 days

0

16

Gravely 445608

BOLT, HEX 1/2-13X5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 415543

WASHER, FLAT .531 X 1.25 X .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

18

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, Qty 7

0

19

Gravely 045205

WHEEL, GAUGE
(Superseded to 07130100)

$108.99

$

In Stock, Qty 5

0

20

Gravely 011950

BUSHING, WHEEL .520X.750X3.312
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

21

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 035668

WELDMENT, DISCHARGE CHUTE
(Superseded to 09090300)

$

$

Not available

23

Gravely 045381

BRACKET, DISCHARGE CHUTE
(Superseded to 08968300)

$

$

Not available

24

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 045546

WELDMENT, 60" MOWER
(Superseded to 08969400)

$

$

Not available

26

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

27

Gravely 179128

PIN, COTTER .25X1.0
(Superseded to 06713000)

$1.49

$

In Stock, only 3 left!

0

28

Gravely 045211

ROD
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

29

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

30

Gravely 045210

BRACKET, ROLLER
(Superseded to 08966853)

$

$

Not available

31

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 103422

PIN, COTTER .25X2.0
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

34

Gravely 015351

ROLLER, GAGE
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

35

Gravely 045568

BRACKET, ROLLER R.H.
(Superseded to 08970153)

$51.99

$

Usually ships in 4-12 days

0

36

Gravely 126475

BOLT, 1/2-13X1.00 RD HD SQ NK
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

37

Gravely 045567

BRACKET, ROLLER L.H.
(Superseded to 08970000)

$34.99

$

Usually ships in 4-12 days

0

38

Gravely 031390

ROLLER, GAUGE
(Superseded to 08803300)

$37.99

$

In Stock, only 3 left!

0

39

Gravely 024795

SHAFT, CENTER ROLLER
(Superseded to 08598800)

$60.99

$

In Stock, only 2 left!

0

40

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

41

Gravely 038516

BRACKET, MOWER SUPPORT L.H.
(Superseded to 08927953)

$103.99

$

Usually ships in 4-12 days

0

41

Gravely 038515

BRACKET, MOWER SUPPORT R.H.
(Superseded to 08927853)

$103.99

$

Usually ships in 4-12 days

0

42

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

43

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$17.99

$

In Stock, only 4 left!

0

44

Gravely 041201

SPRING, PIN
(Superseded to 08876100)

$

$

Not available

45

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

46

Gravely 040536

PLATE, SUPPORT
(Superseded to 08936300)

$159.99

$

Usually ships in 4-12 days

0

47

Gravely 034402

BOLT, HEX 3/8-16X2.00
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

48

Gravely 035684

BAR, LIFT
(Superseded to 08923700)

$

$

Not available

49

Gravely 038620

CHAIN, HEIGHT ADJUSTMENT
(Superseded to 08867400)

$

$

Not available

50

Gravely 014672

SPACER, IDLER .406X.750X.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

51

Gravely 031354

BAFFLE, FRONT
(Superseded to 08905253)

$

$

Not available

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$11.99

$

Usually ships in 4-12 days

0

NS

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

NS

Gravely 040190

DECAL, LUBE
(Superseded to 20666100)

$

$

Not available

NS

Gravely 043003

DECAL, GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available
