4600 BP (UT-26110) - Green Machine Blower Carburetor Parts Diagram

Blower

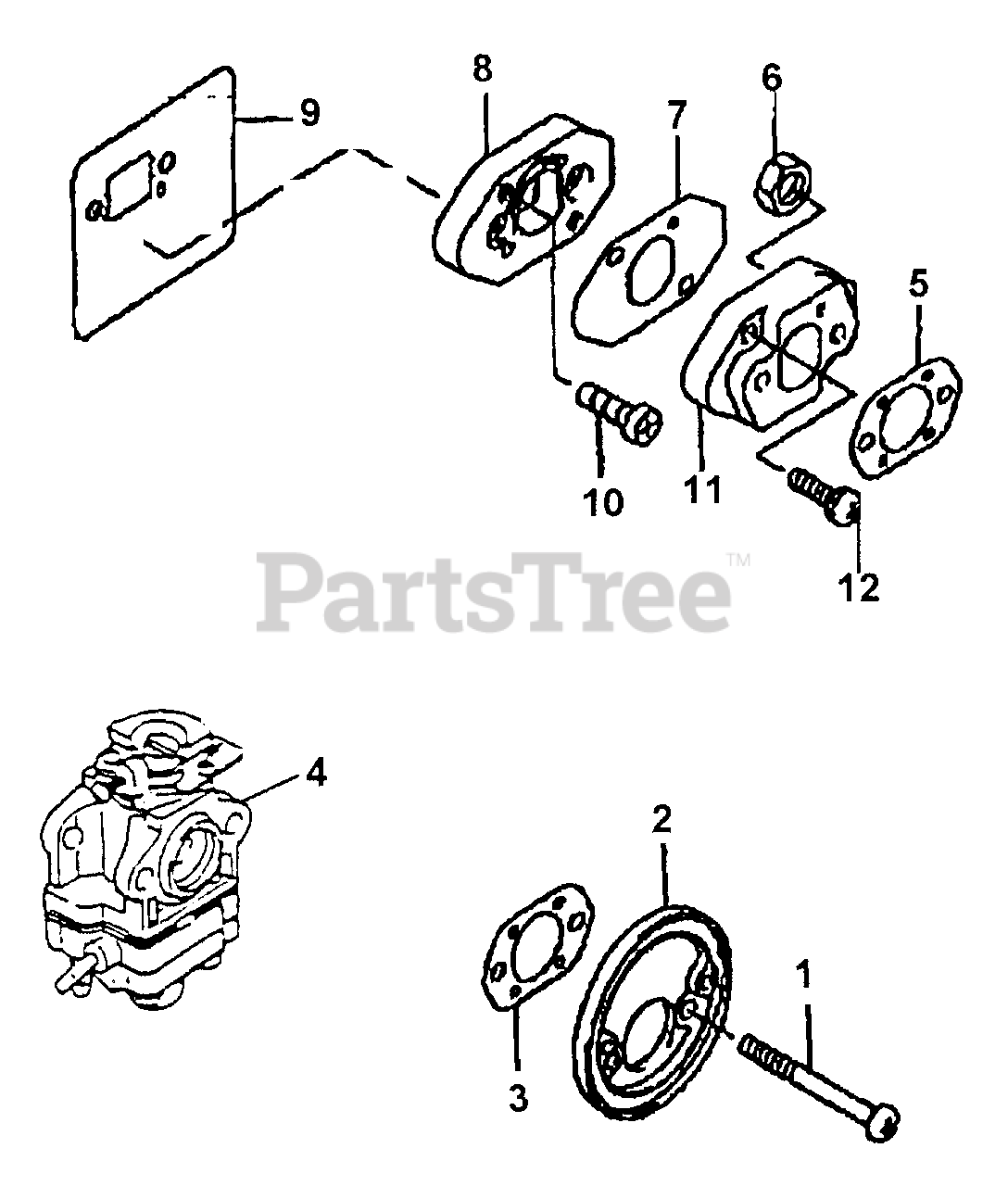

Carburetor Parts Diagram

  • Title

1

Homelite GM467268

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.9-4.0 Nm

$

$

Not available

2

Homelite GM467259

BASE, AIR CLEANER

$

$

Not available

3

Homelite GM467238

GASKET

$

$

Not available

4

Homelite A0789619

CARBURETOR

$

$

Not available

5

Homelite GM467238

GASKET

$

$

Not available

6

Homelite 0789620

NUT

$

$

Not available

7

Homelite 0789621

GASKET

$

$

Not available

8

Homelite GM467258

ADAPTER, INSULATOR

$

$

Not available

9

Homelite GM467240

GASKET

$

$

Not available

10

Homelite GM467278

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.9-4.0 Nm

$

$

Not available

11

Homelite GM467255

INSULATOR

$

$

Not available

12

Homelite GM467279

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.9-4.0 Nm

$

$

Not available
