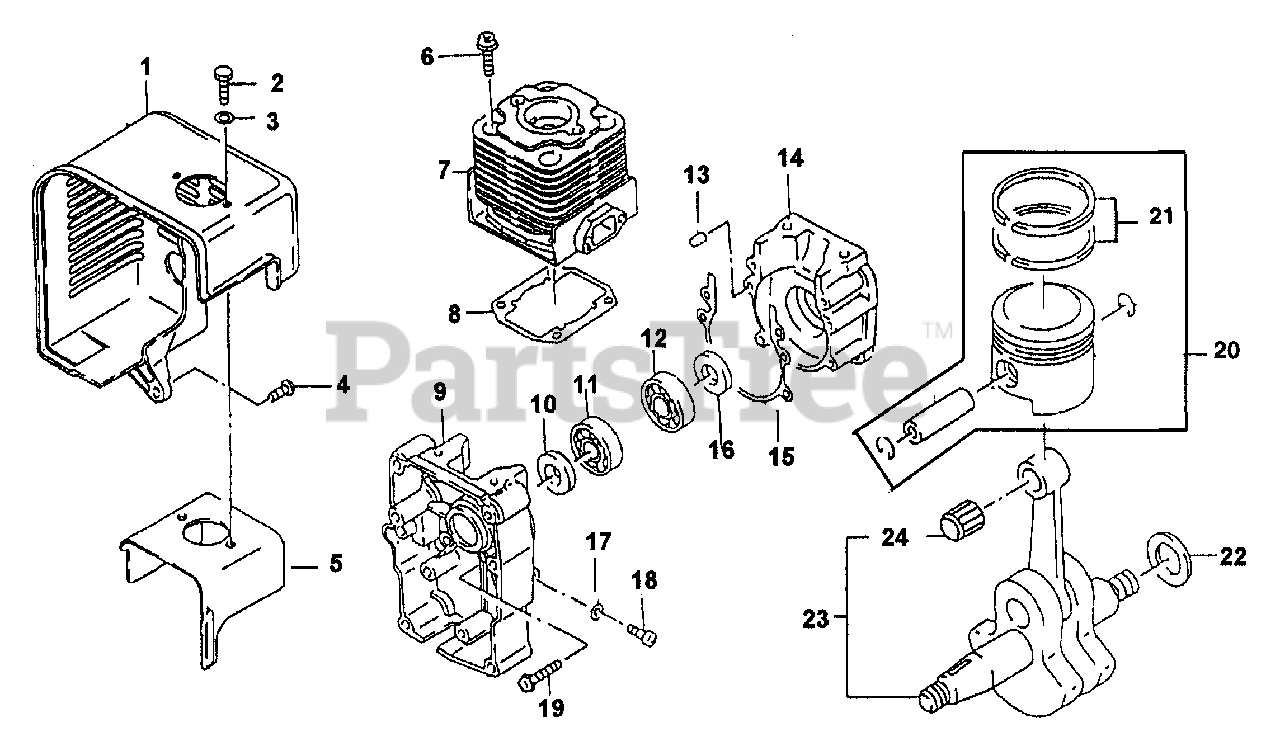

4600 BP (UT-26110) - Green Machine Blower Engine Internal Parts Diagram

Blower

Engine Internal Parts Diagram

  • Title

1

Homelite GM465242

SHROUD, ENGINE

$

$

Currently unavailable

2

Homelite GM030110

BOLT

Note: Torque Specs: 10-20 In/Lbs; 1.1-2.3 Nm

$

$

Not available

3

Homelite GM040128

WASHER

$

$

Not available

4

Homelite GM011005

SCREW

Note: Torque Specs: 10-20 In/Lbs; 1.1-2.3 Nm

$

$

Not available

5

Homelite GM465241

SHROUD, ENGINE

$

$

Not available

6

Homelite 0789601

BOLT

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Not available

7

Homelite A0789641

CYLINDER

$

$

Not available

8

Homelite GM467412

GASKET, CYLINDER

$3.99

$

Usually ships in 3-7 days

0

9

Homelite GM460221

CRANKCASE

$

$

Not available

10

Homelite 0789602

SEAL

$

$

Not available

11

Homelite 0789603

BEARING

$

$

Not available

12

Homelite 0789603

BEARING

$

$

Not available

13

Homelite GM101003

PIN DOWEL

$

$

Currently unavailable

14

Homelite GM460220

CRANKCASE

$

$

Not available

15

Homelite GM467411

GASKET, CRANKCASE

$

$

Not available

16

Homelite 0789602

SEAL

$

$

Not available

17

Homelite GM467413

GASKET

$

$

Currently unavailable

18

Homelite GM011003

SCREW

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

19

Homelite GM011004

SCREW

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Currently unavailable

20

Homelite A09104

PISTON, ASSY.

$

$

Not available

21

Homelite GM466710

RING SET, PISTON

$

$

Not available

22

Homelite 0789607

SHIM T=0.10

$

$

Not available

Homelite 0789608

SHIM T=0.20

$

$

Not available

Homelite 0789609

SHIM T=0.60

$

$

Not available

23

Homelite A09090

CRANKSHAFT ASSY.

$

$

Not available

24

Homelite 0789611

BEARING

$

$

Not available
