4600 BP (UT-26110) - Green Machine Blower Ignition Parts Diagram

Blower

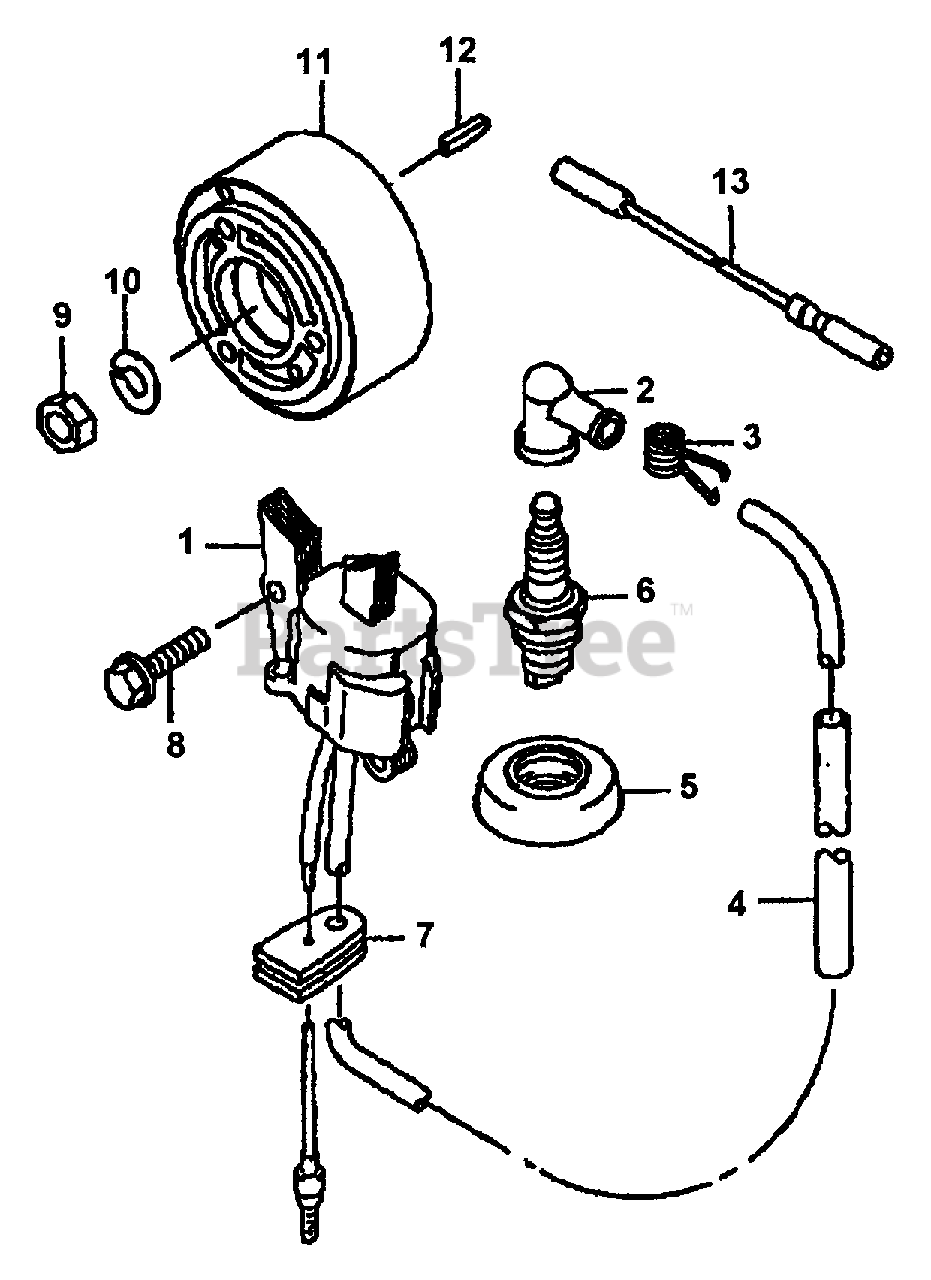

Ignition Parts Diagram

  • Title

1

Homelite A09105

COIL ASSY.
(Superseded to UP06872)

$

$

Not available

2

Homelite 0789615

CAP, BOOT

$

$

Not available

3

Homelite 0789614

TERMINAL

$

$

Not available

4

Homelite GM464018

TUBE, WIRE

$2.99

$

Usually ships in 3-7 days

0

5

Homelite GM464017

BOOT

$

$

Currently unavailable

6

Homelite GM273901

SPARK PLUG

$

$

Not available

7

Homelite 0789617

GROMMET

$

$

Currently unavailable

8

Homelite GM030111

BOLT

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.5 Nm

$

$

Currently unavailable

9

Homelite GM050078

NUT

Note: Torque Specs: 100-120 In/Lbs; 11.5-13.8 Nm

$

$

Not available

10

Homelite 0789612

WASHER

$

$

Currently unavailable

11

Homelite 0789613

FLYWHEEL

$

$

Not available

12

Homelite GM467608

KEY

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 0789616

LEAD WIRE

$

$

Currently unavailable
