4600 BP (UT-26110) - Green Machine Blower Starter Parts Diagram

Blower

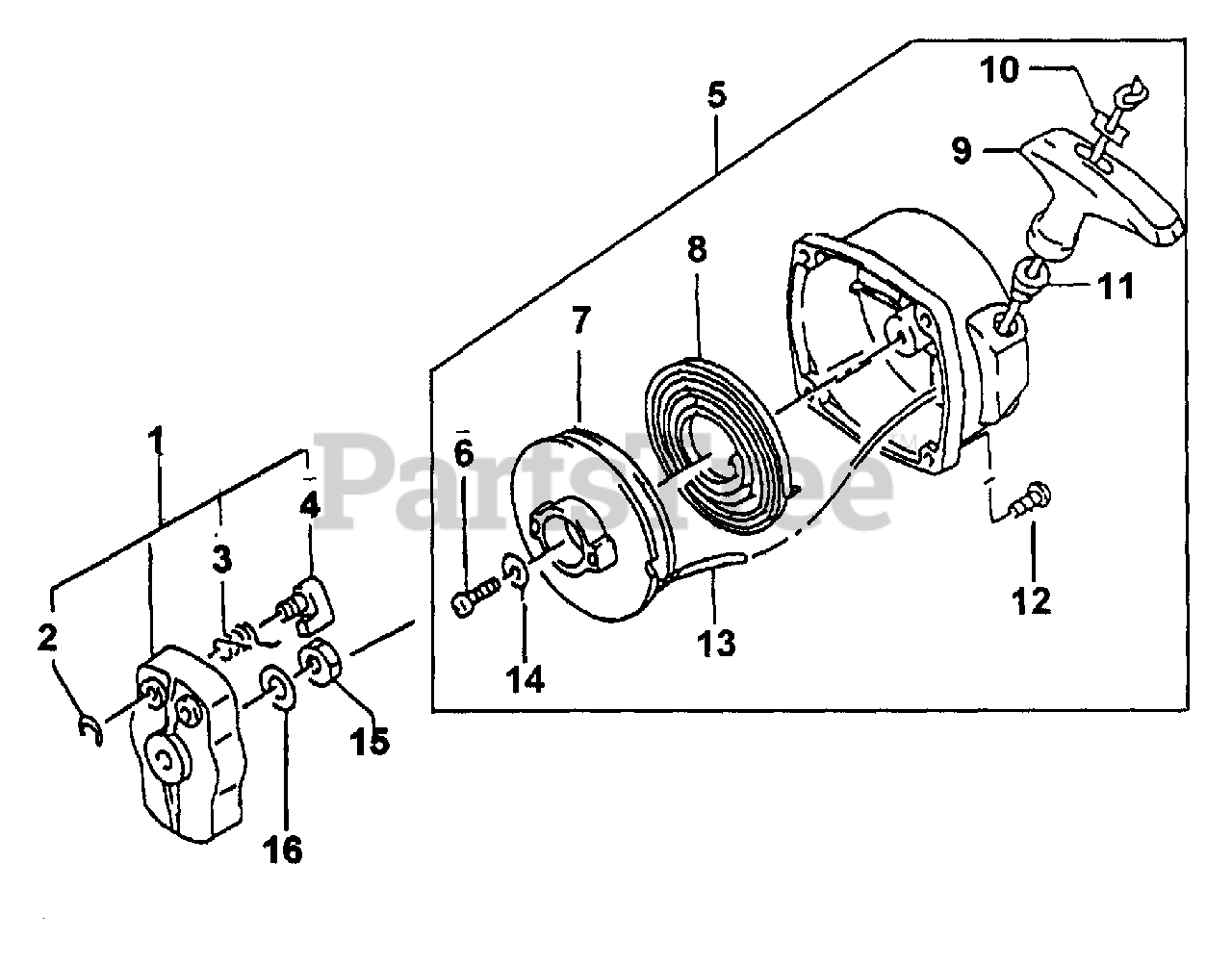

Starter Parts Diagram

  • Title

1

Homelite GM467315

PULLEY ASSY.
(Superseded to UP04879)

$

$

Not available

2

Homelite 0789623

SNAP RING

$

$

Not available

3

Homelite GM467324

SPRING, RETURN

$

$

Not available

4

Homelite GM467311

PAWL

$

$

Not available

5

Homelite GM467317

STARTER ASSY.

$

$

Not available

6

Homelite GM467321

SCREW

$

$

Not available

7

Homelite GM467318

STARTER REEL

$

$

Not available

8

Homelite GM467323

SPRING, RECOIL

$

$

Not available

9

Homelite GM467314

GRIP

$

$

Not available

10

Homelite GM467312

PLATE, ROPE

$

$

Not available

11

Homelite GM467310

ROPE GUIDE

$

$

Currently unavailable

12

Homelite GM467326

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.9-4.0 Nm

$

$

Not available

13

Homelite GM467319

ROPE

$

$

Not available

14

Homelite GM467325

WASHER

$2.99

$

Usually ships in 3-7 days

0

15

Homelite GM467327

NUT

Note: Torque Specs: 100-120 In/Lbs; 11.5-13.8 Nm

$

$

Not available

16

Homelite GM467238

WASHER

$

$

Not available
