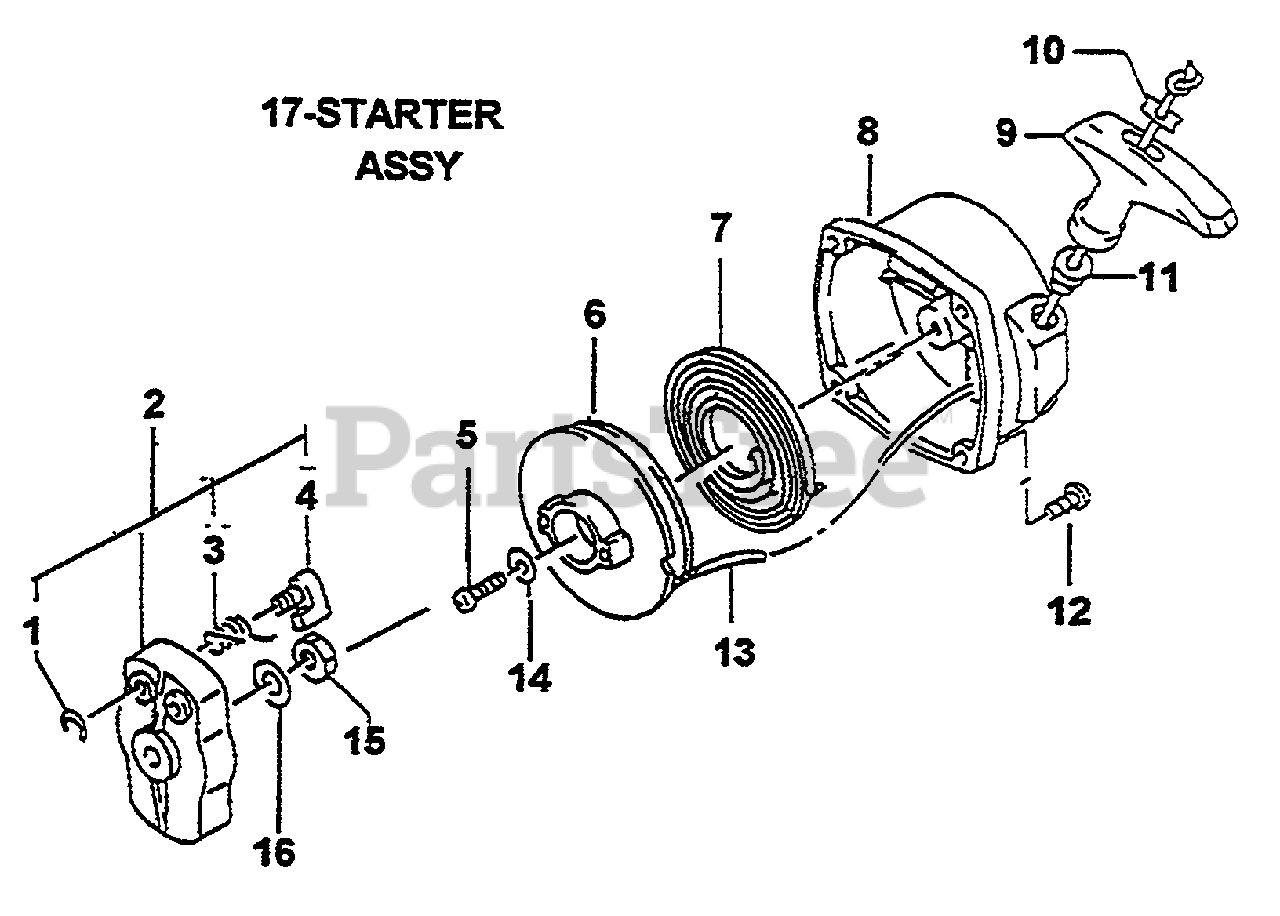

4600 K - Green Machine Blower Starter For 4600K Parts Diagram

Blower

Starter For 4600K Parts Diagram

  • Title

1

Homelite GM467322

SNAP RING
(Superseded to 0789623)

$

$

Not available

2

Homelite GM467315

PULLY ASSY
(Superseded to UP04879)

$

$

Not available

3

Homelite GM467324

SPRING, RETURN

$

$

Not available

4

Homelite GM467311

PAWL

$

$

Not available

5

Homelite GM467321

SCREW

$

$

Not available

6

Homelite GM467318

REEL STARTER

$

$

Not available

7

Homelite GM467323

SPRING, RECOIL

$

$

Not available

8

Homelite GM467313

CASE, STARTER

$

$

Not available

9

Homelite GM467314

GRIP

$

$

Not available

10

Homelite GM467312

PLATE, ROPE

$

$

Not available

11

Homelite GM467310

GUIDE, ROPE

$

$

Currently unavailable

12

Homelite GM467326

SCREW

$

$

Not available

13

Homelite GM467319

ROPE

$

$

Not available

14

Homelite GM467325

WASHER

$2.99

$

Usually ships in 3-7 days

0

15

Homelite GM467327

NUT

$

$

Not available

16

Homelite GM467328

WASHER

$

$

Currently unavailable

17

Homelite GM467317

STARTER ASSY

$

$

Not available
