4600 K - Green Machine Blower Tubes & Frame For 4600K Parts Diagram

Blower

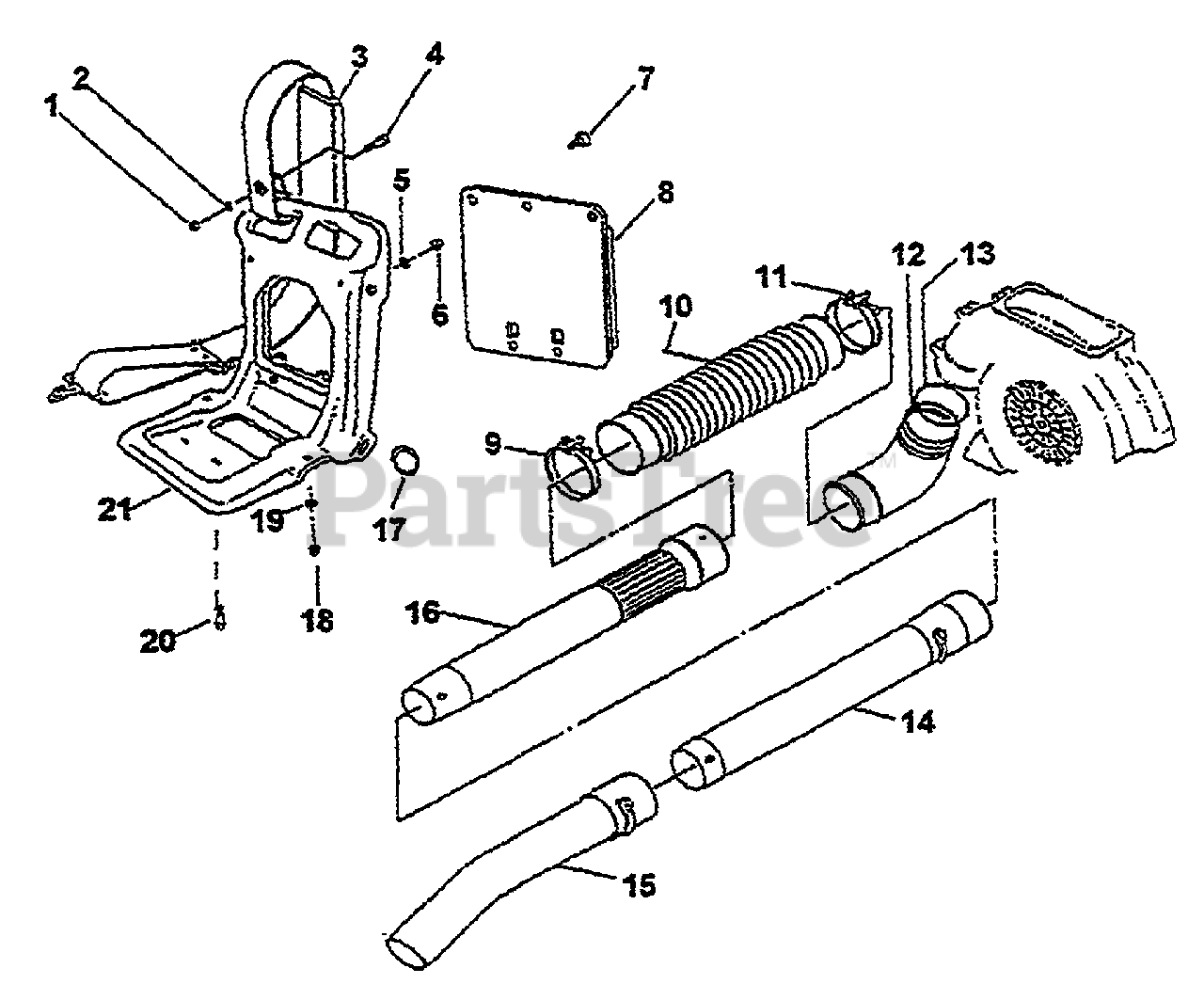

Tubes & Frame For 4600K Parts Diagram

  • Title

1

Homelite GM050073

NUT

$

$

Not available

2

Homelite GM040125

WASHER

$

$

Not available

3

Homelite GM467607

SHOULDER BAND

$

$

Not available

4

Homelite GM010168

SCREW

$

$

Currently unavailable

5

Homelite GM040125

WASHER

$

$

Not available

6

Homelite GM050074

NUT
(Superseded to 0797082)

$

$

Not available

7

Homelite GM100048

CLIP

$

$

Not available

8

Homelite GM460107

KNAPSACK PAD

$

$

Not available

9

Homelite GM468001

HOSE BAND

$7.49

$

Usually ships in 3-7 days

0

10

Homelite GM465519

FLEXIBLE TUBE

$

$

Not available

11

Homelite GM468001

HOSE BAND

$7.49

$

Usually ships in 3-7 days

0

12

Homelite GM465233

ELBOW TUBE

$

$

Currently unavailable

13

Homelite GM465702

"O" RING

$

$

Not available

14

Homelite GM465520

MIDDLE TUBE

$

$

Not available

15

Homelite GM465521

BENT TUBE

$

$

Not available

16

Homelite GM465232

BASE TUBE

$

$

Not available

17

Homelite GM467009

RING

$

$

Currently unavailable

18

Homelite GM050074

NUT
(Superseded to 0797082)

$

$

Not available

19

Homelite GM040125

WASHER

$

$

Not available

20

Homelite GM010169

SCREW

$

$

Currently unavailable

21

Homelite GM460219

FRAME, KNAPSACK

$313.99

$

Usually ships in 3-7 days

0
