46001 (24-G) - Gravely Lawn Tractor HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor

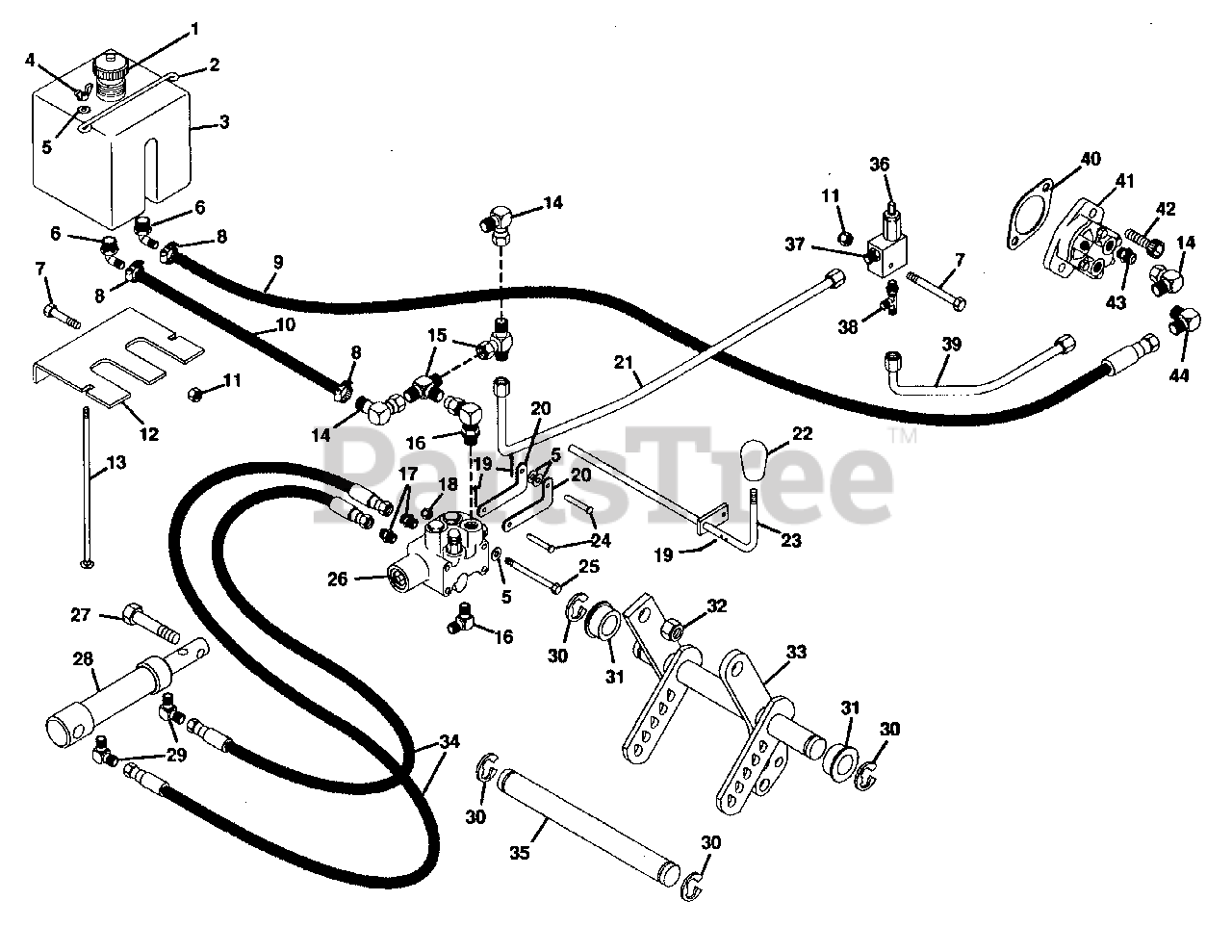

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 044877

CAP,TANK
(Superseded to 08826200)

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 045870

ROD,OIL TANK HOLD-DOWN
(Superseded to 08656700)

$

$

Not available

3

Gravely 045270

KIT, HYDRAULIC TANK
(Superseded to 58701500)

$

$

Not available

4

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

5

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 046116

FTG-ELBOW .50X.50
(Superseded to 07019800)

$

$

Not available

7

Gravely 180087

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 18

0

8

Gravely 021247

CLAMP,.88 DIA. HOSE
(Superseded to 06923500)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 046118

HOSE,TANK TO PUMP
(Superseded to 08776300)

$

$

Not available

10

Gravely 046119

HOSE,LIFT VALVE TO TANK
(Superseded to 20824900)

$

$

Not available

11

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

12

Gravely 045869

SPRT,HYD OIL TANK
(Superseded to 21276500)

$

$

Not available

13

Gravely 126932

BLT-RDHDSQNK .25-20X8.00
(Superseded to 06218800)

$

$

Not available

14

Gravely 018818

ADPT 3903-6-6
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 046117

FTG ADPTR (393T -6-6)
(Superseded to 07019900)

Note: (Used Only On Model(s): 6600-6-6).

$

$

Not available

16

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

19

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

20

Gravely 041237

LIFT LINK
(Superseded to 09065000)

$8.49

$

Usually ships in 4-12 days

0

21

Gravely 046124

LINE,HYD RELIEF TO TANK
(Superseded to 20825300)

$

$

Not available

22

Gravely 032659

KNOB,PTO
(Superseded to 07522900)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 045855

WLDMT,HYD CONTROL ROD
(Superseded to 20821600)

$

$

Not available

24

Gravely 040970

PIN-CLEV .189X1.0
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 180050

BLT-HEX .25-20X2.75 GR5 YWZC
(Superseded to 05969900)

$

$

Not available

26

Gravely 018825

VLV,HYDRAULIC
(Superseded to 08901100)

$

$

Not available

27

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

28

Gravely 031284

CYL,HYD.
(Superseded to 08727500)

$

$

Not available

29

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 011112

RG-RTNG-EXT .835X.056
(Superseded to 05716000)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

32

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

33

Gravely 045859

WLDMT,LIFT LVR SHAFT
(Superseded to 08771600)

$

$

Not available

34

Gravely 018845

HOSE,HYD 14.5 LG
(Superseded to 08709000)

$35.99

$

Usually ships in 4-12 days

0

35

Gravely 045860

SHFT,HYD CYL
(Superseded to 08771700)

$

$

Not available

36

Gravely 046121

VALVE,PRESS. RELIEF
(Superseded to 20825000)

$

$

Not available

37

Gravely 019167

ADPT-PIPE (0503-6-6)
(Superseded to 07017500)

Note: (P.H. #0503-6-6)

$12.99

$

In Stock, only 2 left!

0

38

Gravely 046122

ADPT
(Superseded to 20825100)

$

$

Not available

39

Gravely 046123

LINE,HYD PUMP TO RELIEF
(Superseded to 20825200)

$

$

Not available

40

Gravely 018422

GSKT,COVER PLATE
(Superseded to 08702700)

$16.99

$

In Stock, only 1 left!

0

41

Gravely 046023

PUMP,HYDRAULIC
(Superseded to 21277600)

$

$

Not available

42

Gravely 426370

SCR-CAP .38-16 HEX S/HD
(Superseded to 05933300)

$

$

Not available

43

Gravely 023206

FTG-ADPTR (0503-8-6)
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

44

Gravely 046072

ADPTR-HYD EL 7/8 "O" TO 3/4
(Superseded to 07020000)

Note: (P-H #0503-10-6)

$

$

Not available
