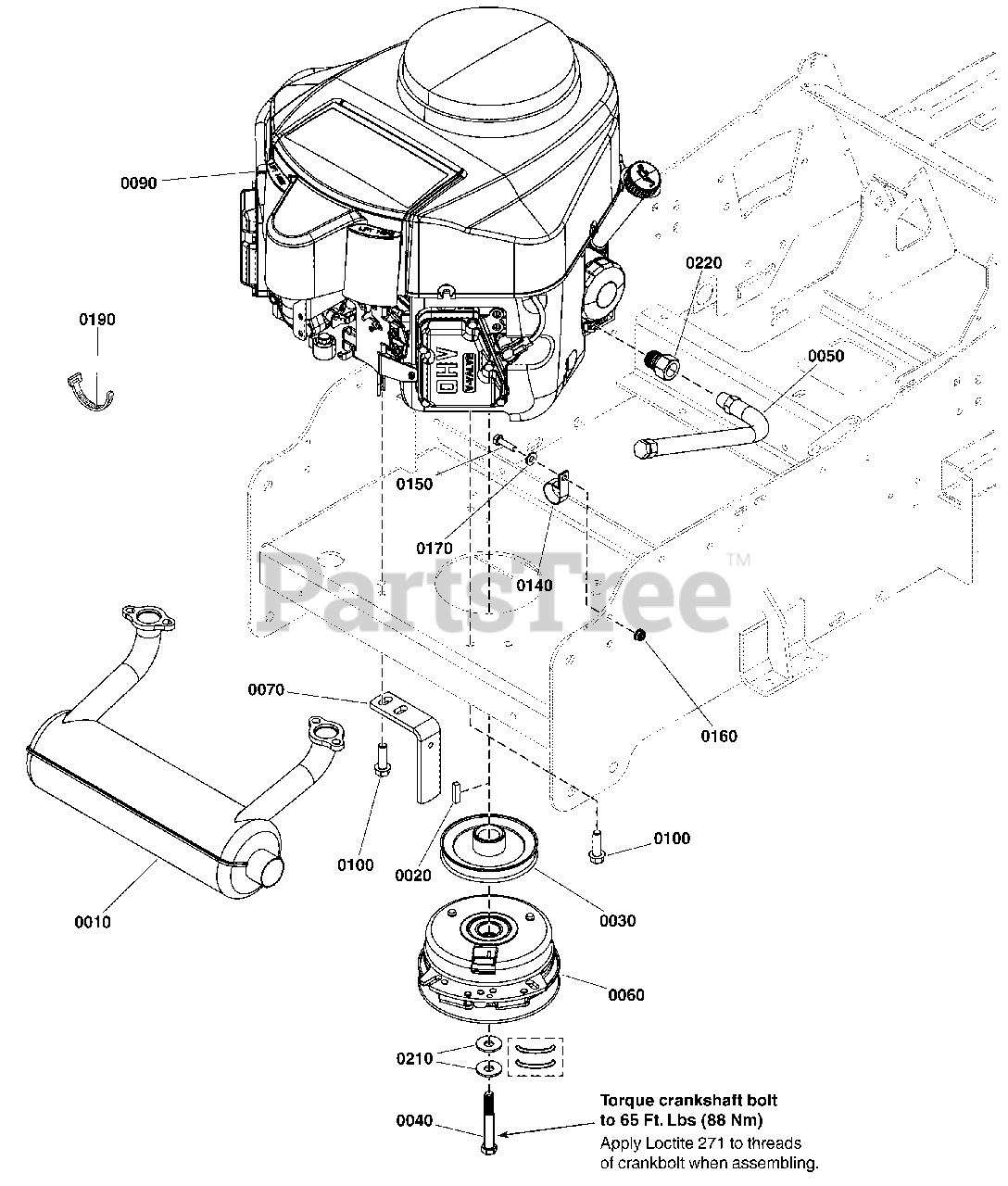

460Z (5901717) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 21.5hp KAV Engine & PTO Group - Kawasaki FR651 Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 21.5hp KAV

Engine & PTO Group - Kawasaki FR651 Parts Diagram

  • Title

0010

Snapper 1758352YP

MUFFLER, ZT (Kawasaki FR651/691/730)

$220.99

$

Usually ships in 2-12 days

0

0020

Snapper 5050407X8SM

KEY, 1/4 Square x 1

$4.49

$

In Stock, only 2 left!

0

0030

Snapper 5101337YP

PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE

$40.99

$

In Stock, only 1 left!

0

0040

Snapper 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)

$5.49

$

In Stock, only 2 left!

0

0050

Snapper 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

0060

Snapper 5100915SM

CLUTCH, # 5219-34A, ELECTRIC, IS500Z

$338.99

$

Usually ships in 2-12 days

0

0070

Snapper 5404967AYP

ANCHOR, CLUTCH - BLK

$32.99

$

In Stock, only 2 left!

0

0090

ENGINE, KAWASAKI 21.5 FR651

Note: (Refer to Note: *)

$

$

Not available

0100

Snapper 5025532YP

BOLT,Hex Flange, 3/8-16 X 1-1/4, GR5
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.49

$

In Stock, Qty 11

0

0140

Snapper 5021500SM

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 10

0

0160

Snapper 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0170

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0190

Snapper 5021030YP

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

0210

Snapper 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, Qty 6

0

0220

Snapper 5022234SM

ADAPTER, Oil Drain

$16.99

$

In Stock, only 3 left!

0
