460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, FAB Deck, 25hp Briggs & Stratton 48" (122 cm) Mower Deck Group - Pulleys, Belt, & Idler Arm Parts Diagram

48"/122cm Zero-Turn Mower, FAB Deck, 25hp Briggs & Stratton

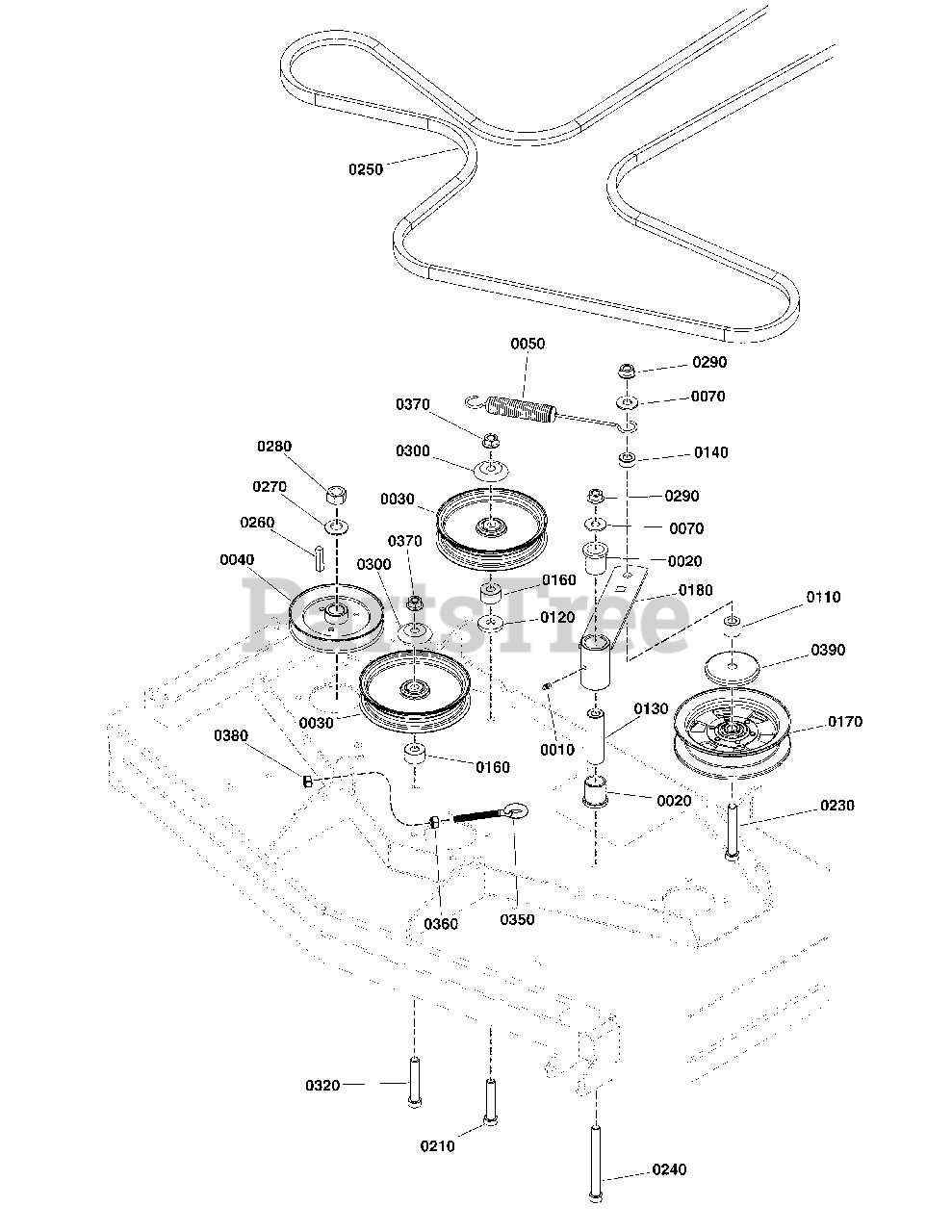

48" (122 cm) Mower Deck Group - Pulleys, Belt, & Idler Arm Parts Diagram

  • Title

0010

Snapper 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

Usually ships in 2-12 days

0

0020

Snapper 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 7

0

0030

Snapper 5103800YP

PULLEY, FLAT IDLER, 6-3/4"

$54.99

$

In Stock, Qty 5

0

0040

Snapper 5023175SM

PULLEY, 5.540OB X 3985ID, SINGLE B-SEC (48" Deck, S/N: 534 & above)

$67.99

$

Usually ships in 2-12 days

0

0050

Snapper 5023340SM

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK

$36.99

$

Usually ships in 2-12 days

0

0070

Snapper 5025150SM

WASHER, 1/2" USS

$3.99

$

In Stock, only 2 left!

0

0110

Snapper 5044673SM

SPACER, .52 X 1.00 X .88, PM, CZ

$8.99

$

Usually ships in 2-12 days

0

0120

Snapper 5044913SM

WASHER, .53 X 1.50 X .25

$6.99

$

In Stock, only 1 left!

0

0130

Snapper 5045022SM

SPACER, .52 X 1.00 X 3.50

$24.99

$

Usually ships in 2-12 days

0

0140

Snapper 5045023SM

SPACER, .52 X 1.00 X .44, CZ

$6.49

$

Usually ships in 2-12 days

0

0160

Snapper 5047142SM

SPACER, .52 X 1.25 X .70, PM, CZ

$8.99

$

In Stock, only 1 left!

0

0170

Snapper 5104716YP

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID

$59.99

$

Usually ships in 2-12 days

0

0180

Snapper 5407343YP

ASSM, IDLER ARM - BLK - 5407039A (SV)

Note: (Includes bushings and grease fittings.)

$

$

Not available

0210

Snapper 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, only 2 left!

0

0230

Snapper 5025017X28SM

CAPSCREW, Hex Hd, 1/2-13 x 3-1/2

$5.99

$

Usually ships in 2-12 days

0

0240

Snapper 5025017X40SM

BOLT, 1/2-13 X 5" GD5 YZ

$6.49

$

In Stock, Qty 6

0

0250

Snapper 5104064YP

BELT, 5V, 145.40"EL, LRG ARAMID, WRP, RC

$111.99

$

Usually ships in 2-12 days

0

0260

Snapper 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0270

Snapper 770223

WASHER, Belleville, 3/4

$4.49

$

In Stock, only 3 left!

0

0280

Snapper 5025405SM

NUT, 3/4-16 Hex (Included with Complete Spindle Assembly)

$3.99

$

In Stock, only 2 left!

0

0290

Snapper 5025056YP

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

0300

Snapper 5101103SM

SHIELD, PULLEY BEARING, CZ

$10.99

$

Usually ships in 2-12 days

0

0320

Snapper 5025017X20SM

BOLT, 1/2-13 X 2-1/2 GD5 YZ

$5.49

$

In Stock, only 2 left!

0

0350

Snapper 5025429SM

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C

$6.49

$

Usually ships in 2-12 days

0

0360

Snapper 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

Usually ships in 2-12 days

0

0370

Snapper 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

0380

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 19

0

0390

Snapper 5105145YP

SHIELD, BEARING, 1/2ID X 2-7/8 OD, CZ

$4.49

$

In Stock, only 2 left!

0
