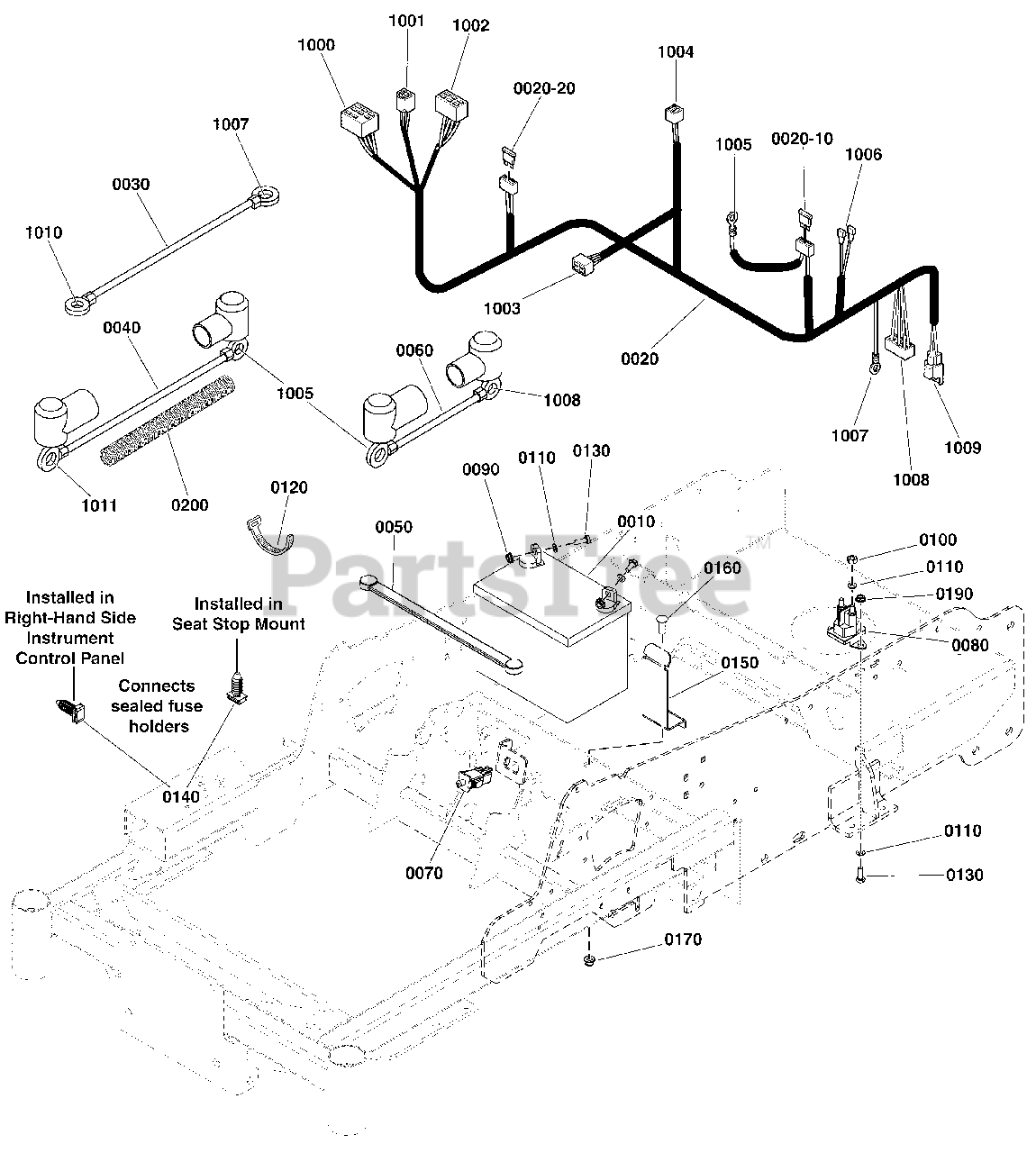

460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton Electrical Group - Briggs & Stratton Models Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

Electrical Group - Briggs & Stratton Models Parts Diagram

  • Title

0010

Snapper 1685215SM

BATTERY, L Post, 12 Volt 6 Cell 340CCA

$

$

Not available

0020

Snapper 5105536YP

HARNESS, SMALL, ZTR WIRING

$210.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 5021603SM

FUSE, ATO, 20 AMP (SV)

$5.49

$

In Stock, only 2 left!

0

0020-20

Snapper 5101935YP

FUSE, ATO, 15 AMP (SV)

$4.49

$

Usually ships in 2-12 days

0

0030

Snapper 5101396YP

BATTERY CABLE, NEG, 30, 1/4-5/16

$37.99

$

Usually ships in 2-12 days

0

0040

Snapper 5021405SM

BATTERY CABLE, POS, 22, 1/4-5/16

$19.99

$

Usually ships in 2-12 days

0

0050

Snapper 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 3 left!

0

0060

Snapper 5044732YP

BATTERY CABLE, POSITIVE, 8

$11.99

$

Usually ships in 2-12 days

0

0070

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$15.99

$

In Stock, Qty 20+

0

0080

Snapper 1755382YP

SOLENOID, 1/4-20 STD, 2 Spade

$29.99

$

In Stock, Qty 11

0

0090

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 11

0

0100

Snapper 703061

NUT, 1/4-20, Keps, Conical Washer

$3.99

$

In Stock, Qty 11

0

0110

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

0130

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 5103761YP

FIR TREE MOUNT, PACKARD

$5.99

$

Usually ships in 2-12 days

0

0150

Snapper 5415727AYP

PLATE, HARNESS/BATTERY SUPPORT - BLK

$16.99

$

Usually ships in 2-12 days

0

0160

Snapper 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

0170

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0190

Snapper 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0200

Snapper 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.99

$

Usually ships in 2-12 days

0

1000

Connects to PTO Switch

$

$

Not available

1001

Connects to Ignition Switch

$

$

Not available

1002

Connects to Hour Meter

$

$

Not available

1003

Connects to Parking Brake Switch

$

$

Not available

1004

Connects to Seat Switch

$

$

Not available

1005

Connects to Starter Solenoid (Post)

$

$

Not available

1006

Snapper CONN-STR3

Connects to Starter Solenoid (Spade)

$

$

Currently unavailable

1007

Connects to Ground

$

$

Not available

1008

Connects to Engine

$

$

Not available

1009

Connects to PTO Switch

$

$

Not available

1010

Connects to Positive Battery Terminal

$

$

Not available

1011

Connects to Negative Battery Terminal

$

$

Not available
