460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton Fuel Tank and Mount Group Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

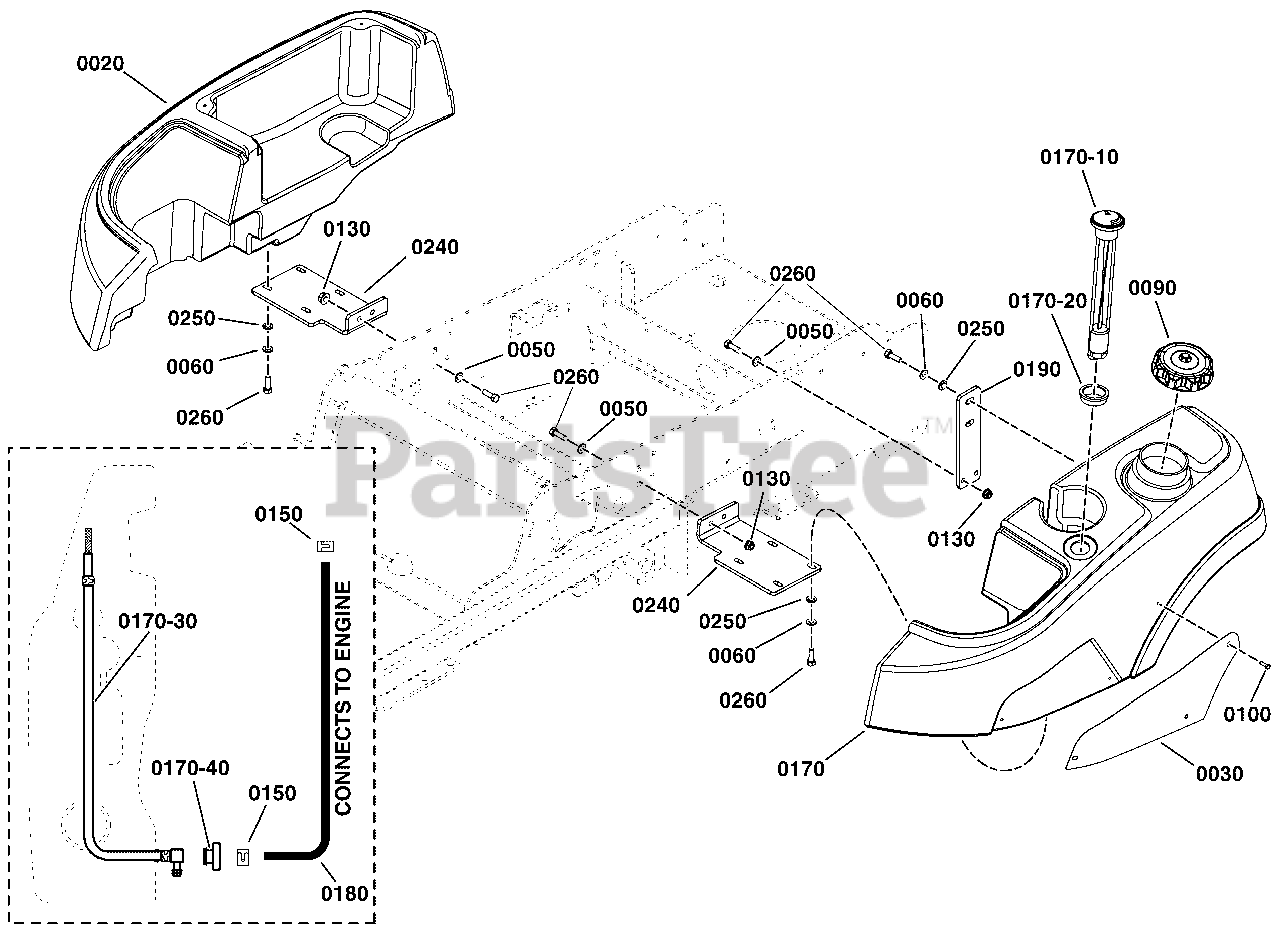

Fuel Tank and Mount Group Parts Diagram

  • Title

0020

Snapper 5048752SM

TANK, FENDER, CONZ, RH

$296.99

$

Usually ships in 2-12 days

0

0030

Snapper 5048909DYP

PLATE, FUEL TANK BADGE

$30.99

$

In Stock, only 2 left!

0

0050

Snapper 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 5025170SM

WASHER, Flat

$4.49

$

In Stock, only 2 left!

0

0090

Snapper 1759036YP

CAP, Fuel
(Superseded to 1761224YP)

$49.99

$

In Stock, only 3 left!

0

0100

Snapper 5025386SM

CAPSCREW, Button Allen Head, #10-24 X 3/8

$3.99

$

In Stock, only 2 left!

0

0130

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0150

Snapper 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

0170

Snapper 5103167YP

TANK, FUEL, 5.25 GAL, LH

$590.99

$

Usually ships in 2-12 days

0

0170-10

Snapper 5023197SM

GAUGE, FUEL LEVEL, 9.0"

$49.99

$

Usually ships in 2-12 days

0

0170-20

Snapper 5022917X1SM

GROMMET, FUEL GAUGE (SV)

$7.49

$

In Stock, Qty 8

0

0170-30

Snapper 1726400SM

BUSHING
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0170-40

Snapper 5101144SM

PICKUP TUBE ASM, FUEL TANK (SV)

$37.99

$

In Stock, only 1 left!

0

0180

Snapper 5050831X20YP

HOSE, 1/4" FUEL, 20.00"

$8.49

$

Usually ships in 2-12 days

0

0190

Snapper 5406626AYP

MOUNT, FUEL TANK, REAR - BLK

$11.99

$

Usually ships in 2-12 days

0

0240

Snapper 5411923AYP

MOUNT-TANK

$39.99

$

Usually ships in 2-12 days

0

0250

Snapper 5025292SM

WASHER, 5/16" GD.9 FLAT

$4.49

$

In Stock, Qty 11

0

0260

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0
