460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton Instrument Control Panel Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

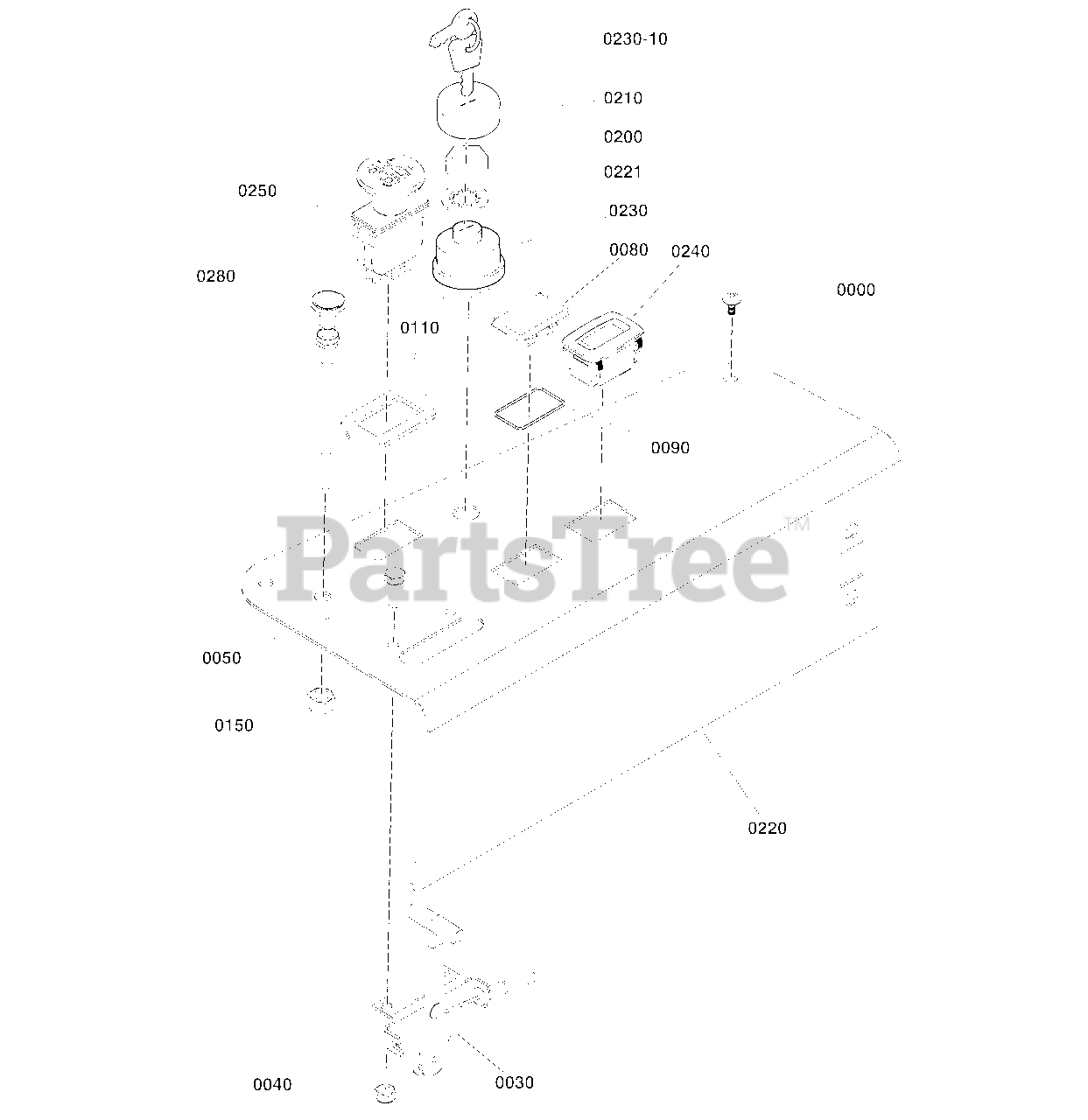

Instrument Control Panel Parts Diagram

  • Title

0030

Snapper 5020811SM

CABLE, THROTTLE CONTROL, 38

$52.99

$

Usually ships in 2-12 days

0

0040

Snapper 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, only 4 left!

0

0050

Snapper 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$5.49

$

In Stock, Qty 7

0

0090

Snapper 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 1 left!

0

0150

Snapper 5025035SM

NUT, 3/8 - 24 HEX
(Superseded to 703895)

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

0210

Snapper 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.99

$

In Stock, Qty 8

0

0220

Snapper 5406624AYP

PLATE, CONTROL PANEL - BLACK

$60.99

$

Usually ships in 2-12 days

0

0221

Snapper 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, Qty 8

0

0230

Snapper 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$38.99

$

In Stock, Qty 10

0

0230-10

Snapper 1737836YP

KEYS, Ignition

$22.99

$

In Stock, only 4 left!

0

0240

HOUR METER, 2 CHANNEL

$

$

Not available

0250

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$35.99

$

In Stock, Qty 20+

0

0280

Snapper 5046501SM

CABLE, Choke

$59.99

$

In Stock, only 2 left!

0
