460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton Transaxle Drive Group - Briggs & Stratton Models Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

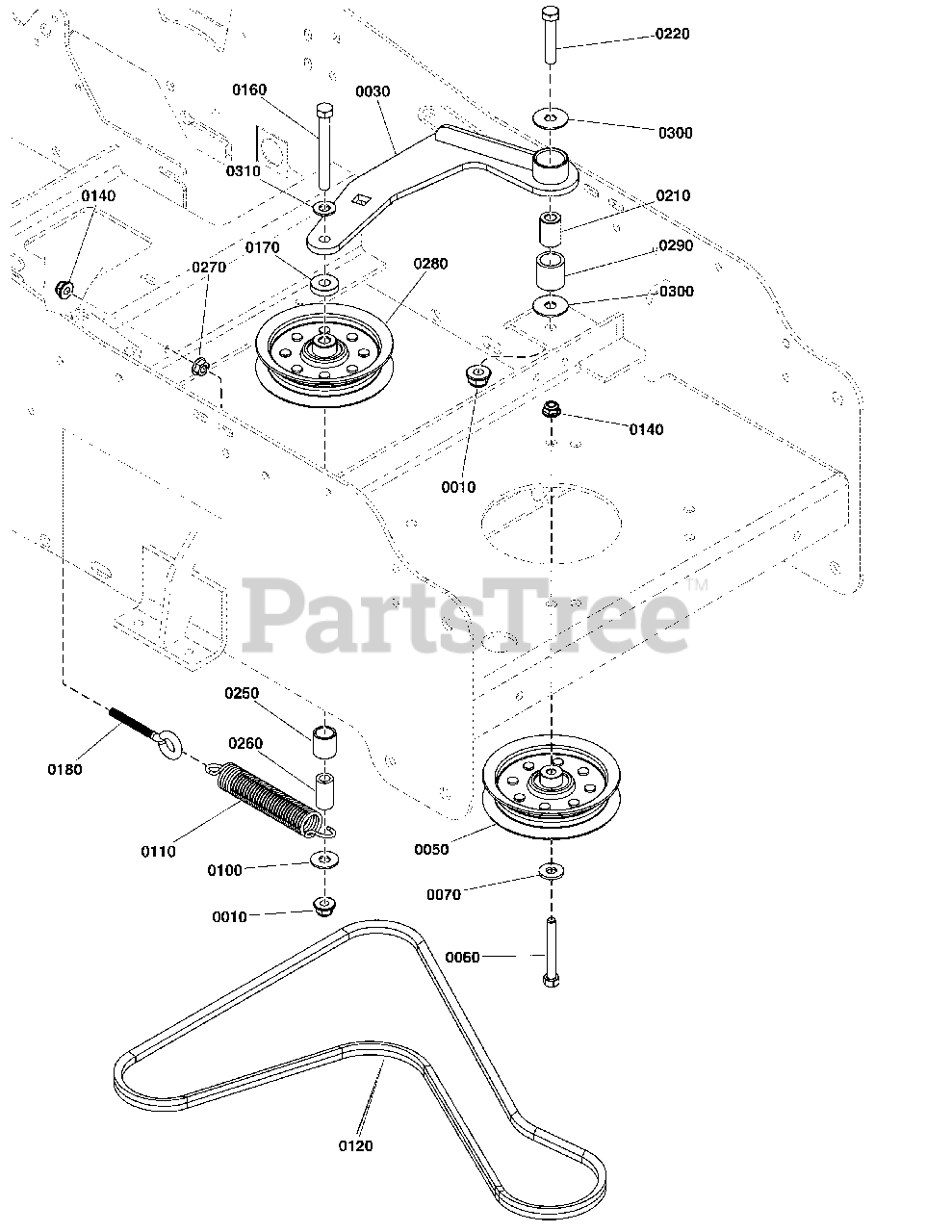

Transaxle Drive Group - Briggs & Stratton Models Parts Diagram

  • Title

0010

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 5415852AYP

IDLER ARM

$53.99

$

Usually ships in 2-12 days

0

0050

Snapper 5101379YP

PULLEY, IDLER, STATIONARY

$52.99

$

Usually ships in 2-12 days

0

0060

Snapper 5025011X20SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

0070

Snapper 5025337YP

WASHER, 5/16 USS

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 5025401YP

WASHER, 3/8 USS

$4.49

$

In Stock, Qty 8

0

0110

Snapper 1715435SM

SPRING, Extension

$9.99

$

In Stock, Qty 20+

0

0120

Snapper 5105189YP

BELT

$46.99

$

In Stock, only 2 left!

0

0140

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 5025013X28SM

CAPSCREW, Hex Hd, 3/8-16 x 3-1/2

$4.99

$

In Stock, Qty 11

0

0170

Snapper 5044960SM

SPACER, .39ID x 1 OD x 1/4

$5.99

$

In Stock, Qty 6

0

0180

Snapper 5025141X26YP

EYE BOLT, 5/16-18 X 3-1/2, 2-1/8 THRD.

$8.49

$

In Stock, only 4 left!

0

0210

Snapper 5042658SM

SPACER, .39 X .75 X 1.06

$7.99

$

In Stock, Qty 9

0

0220

Snapper 5025013X16SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 5102946

SPACER, .64 X .82 X .88, CZ
(Superseded to 5102946FS)

$13.99

$

Usually ships in 2-12 days

0

0260

Snapper 1674669SM

SPACER, .39 X 5/8 X 1.15

$11.99

$

In Stock, Qty 20+

0

0270

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0

0280

Snapper 5101380YP

PULLEY, IDLER, ADJUSTABLE

$52.99

$

In Stock, only 3 left!

0

0290

Snapper 5020876BSM

BUSHING, BRASS, 3/4 X 1 X 1

$11.99

$

In Stock, Qty 10

0

0300

Snapper 5025165SM

WASHER, Fender, 3/8

$4.49

$

In Stock, Qty 13

0

0310

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0
