460Z (5901718) - Snapper 48"/122cm Zero-Turn Mower, FAB Deck, 25hp Briggs & Stratton Wheel & Tire Group Parts Diagram

48"/122cm Zero-Turn Mower, FAB Deck, 25hp Briggs & Stratton

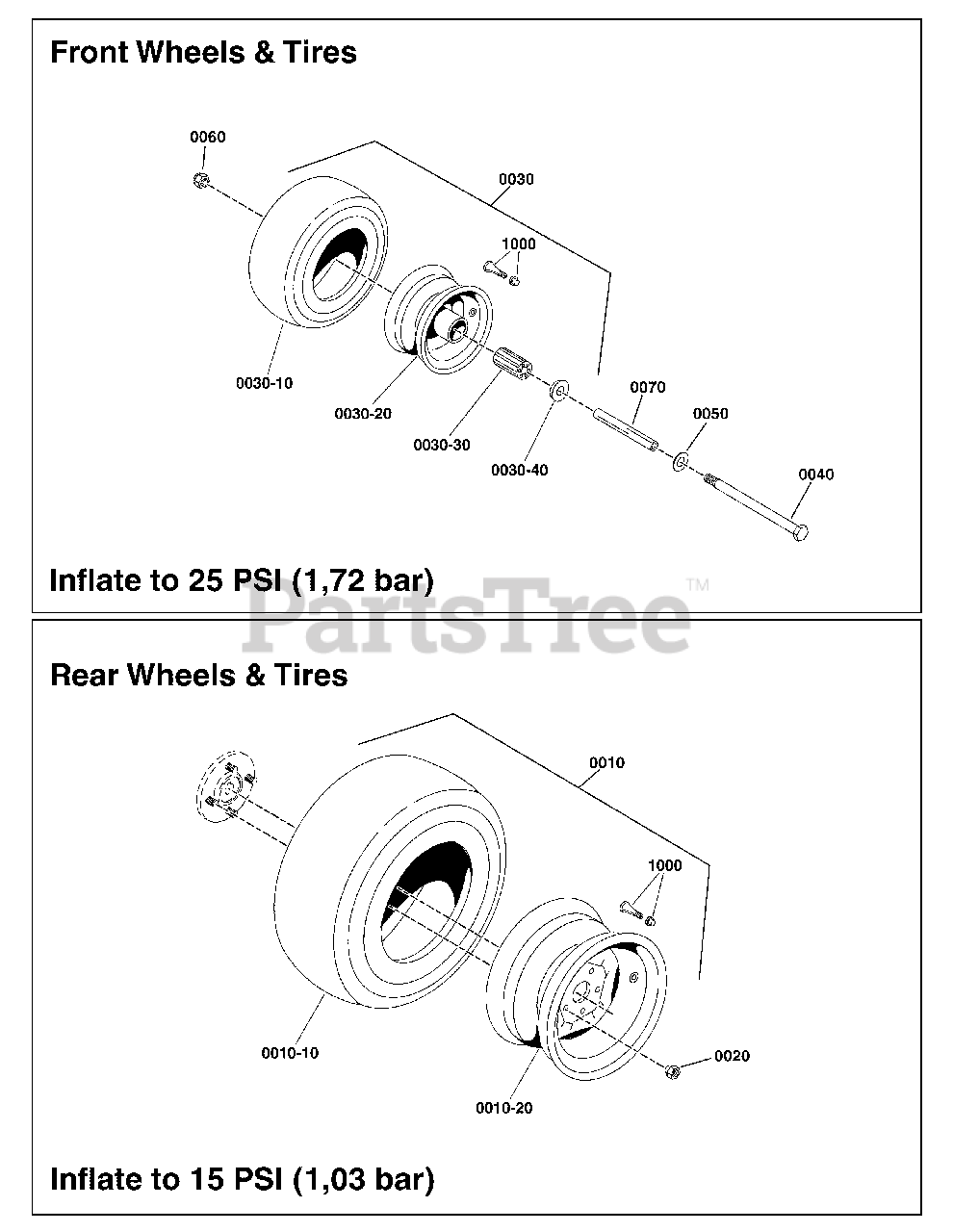

Wheel & Tire Group Parts Diagram

  • Title

0010

Snapper 5103019YP

TIRE ASM, REAR, 20 X 10.0 X 10

$373.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 5101345X1YP

TIRE, REAR, 20 X 10.0 X 10

$262.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 5102329X2YP

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS (SV)

$259.99

$

Usually ships in 2-12 days

0

0020

Snapper 5020601SM

NUT, Lug, 1/2-20

Note: (Torque tire lug nut to 90 ft-lbs (122 Nm)

$3.49

$

In Stock, Qty 9

0

0030

Snapper 5101418YP

WHEEL ASSEMBLY, Caster, 11 X 4.0 - 5

$127.99

$

Usually ships in 2-12 days

0

0030-10

Snapper 5022433X1SM

TIRE, Caster, 11 X 4.0 - 5 (SV)

$75.99

$

Usually ships in 2-12 days

0

0030-20

Snapper 5101418X2YP

RIM, Caster , 11 X 4.0 - 5

$84.99

$

In Stock, only 1 left!

0

0030-30

Snapper 5101418X1YP

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

$28.99

$

In Stock, only 2 left!

0

0030-40

Snapper 5021043SM

RETAINER, Bearing

$7.49

$

In Stock, only 3 left!

0

0040

Snapper 5025017X56YP

BOLT, 1/2-13 X 7 GD8 YZ

$14.99

$

In Stock, only 1 left!

0

0050

Snapper 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 13

0

0060

Snapper 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

0070

Snapper 5045996SM

AXLE, Caster

$15.99

$

In Stock, only 2 left!

0

1000

Snapper 7012234SM

VALVE STEM & CAP, Air .453 Dia 0.88 Long

$6.49

$

In Stock, only 2 left!

0
