461 ZX (966681801) - Poulan Pro 46" Zero-Turn Mower (2011-01) MOWER DECK / CUTTING DECK Parts Diagram

46" Zero-Turn Mower

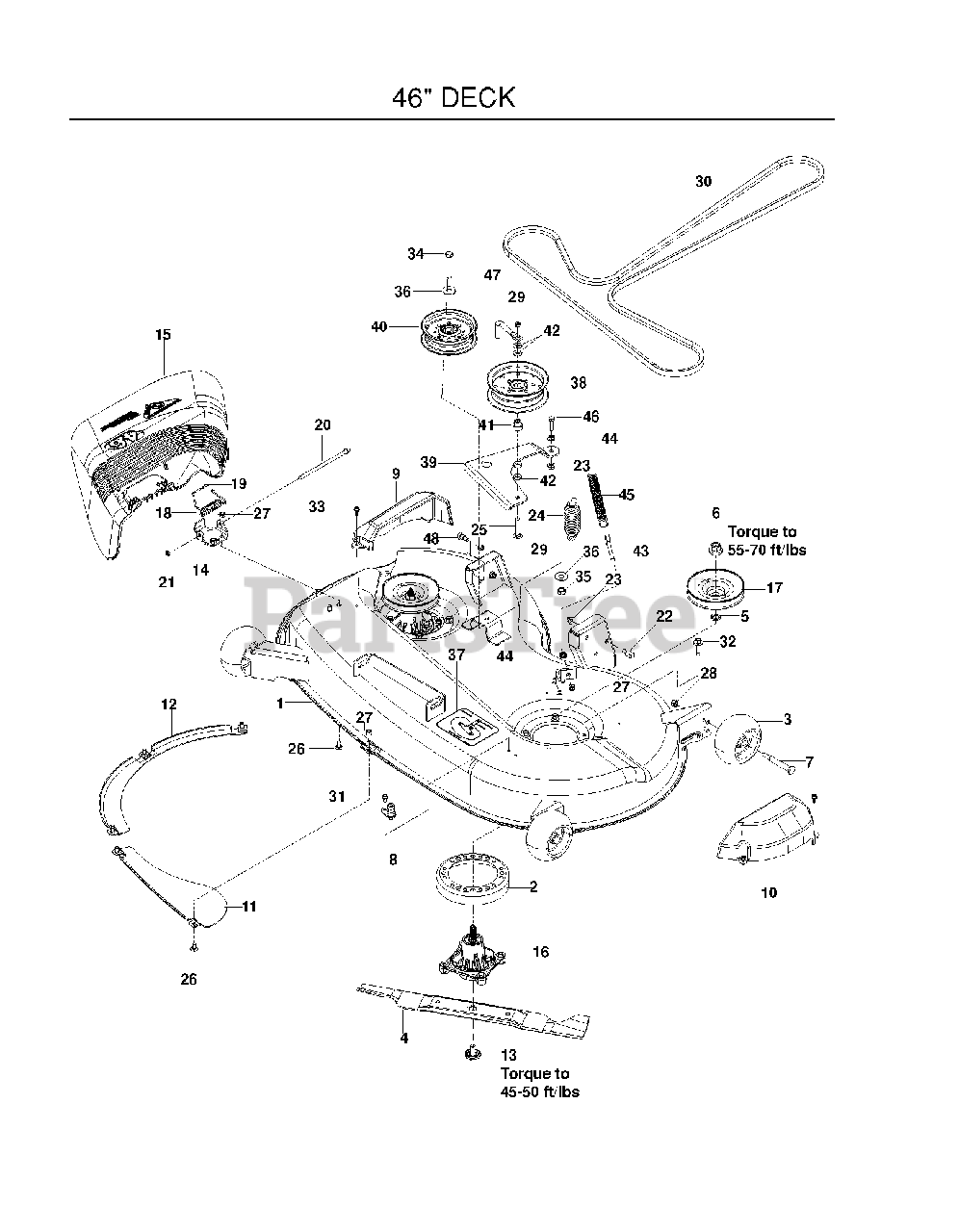

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 522745402

DECK.STAMPED.46".W/DECALS.BLAC
(Superseded to 598727202)

Note: w / SAFETY DECALS

$363.99

$

Usually ships in 3-10 days

0

2

Poulan 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

3

Poulan 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

4

Poulan 777405380

BLADE, 46" HI-LIFT
(Superseded to 532405380)

$20.99

$

Usually ships in 3-10 days

0

5

Poulan 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

6

Poulan 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

7

Poulan 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

8

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

9

Poulan 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, Qty 11

0

10

Poulan 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, Qty 9

0

11

Poulan 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

12

Poulan 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

13

Poulan 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

14

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

15

Poulan 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 7

0

16

Poulan 539107515

CUTTER HOUSING
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0

17

Poulan 539113962

PULLEY, DECK
(Superseded to 588586601)

$22.99

$

In Stock, Qty 20+

0

18

Poulan 539107609

TORSION SPRING

$4.99

$

In Stock, Qty 20+

0

19

Poulan 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Poulan 539110462

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

21

Poulan 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

23

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

24

Poulan 539118762

SPRING
(Superseded to 596482001)

$7.49

$

In Stock, Qty 13

0

25

Poulan 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$3.99

$

In Stock, Qty 20+

0

26

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

28

Poulan 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 20+

0

30

Poulan 539117245

V-BELT

$66.99

$

In Stock, Qty 20+

0

31

Poulan 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

33

Poulan 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

34

Poulan 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD

$

$

Not available

35

Poulan 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.49

$

In Stock, Qty 20+

0

36

Poulan 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 20+

0

37

Poulan 510240201

DECAL, BELT ROUTING

$3.99

$

In Stock, Qty 11

0

38

Poulan 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

39

Poulan 574689002

ARM, IDLER BLK

$93.99

$

In Stock, Qty 9

0

40

Poulan 532196104

PULLEY.IDLER.MWR.STATIONARY.LH

$34.99

$

In Stock, Qty 20+

0

41

Poulan 539112076

IDLER BUSHING
(Superseded to 596790301)

$5.99

$

In Stock, Qty 20+

0

42

Poulan 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 20+

0

43

Poulan 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, Qty 14

0

44

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 539120920

SPRING, DECK BELT
(Superseded to 596989801)

$6.49

$

In Stock, Qty 20+

0

46

Poulan 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

47

Poulan 522629701

BELT KEEPER 5"
(Superseded to 522629702)

$4.99

$

In Stock, Qty 14

0

48

Poulan 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, Qty 10

0
