461004x92A - Murray 46" Garden Tractor (2004) Hood And Dash Parts Diagram

46" Garden Tractor

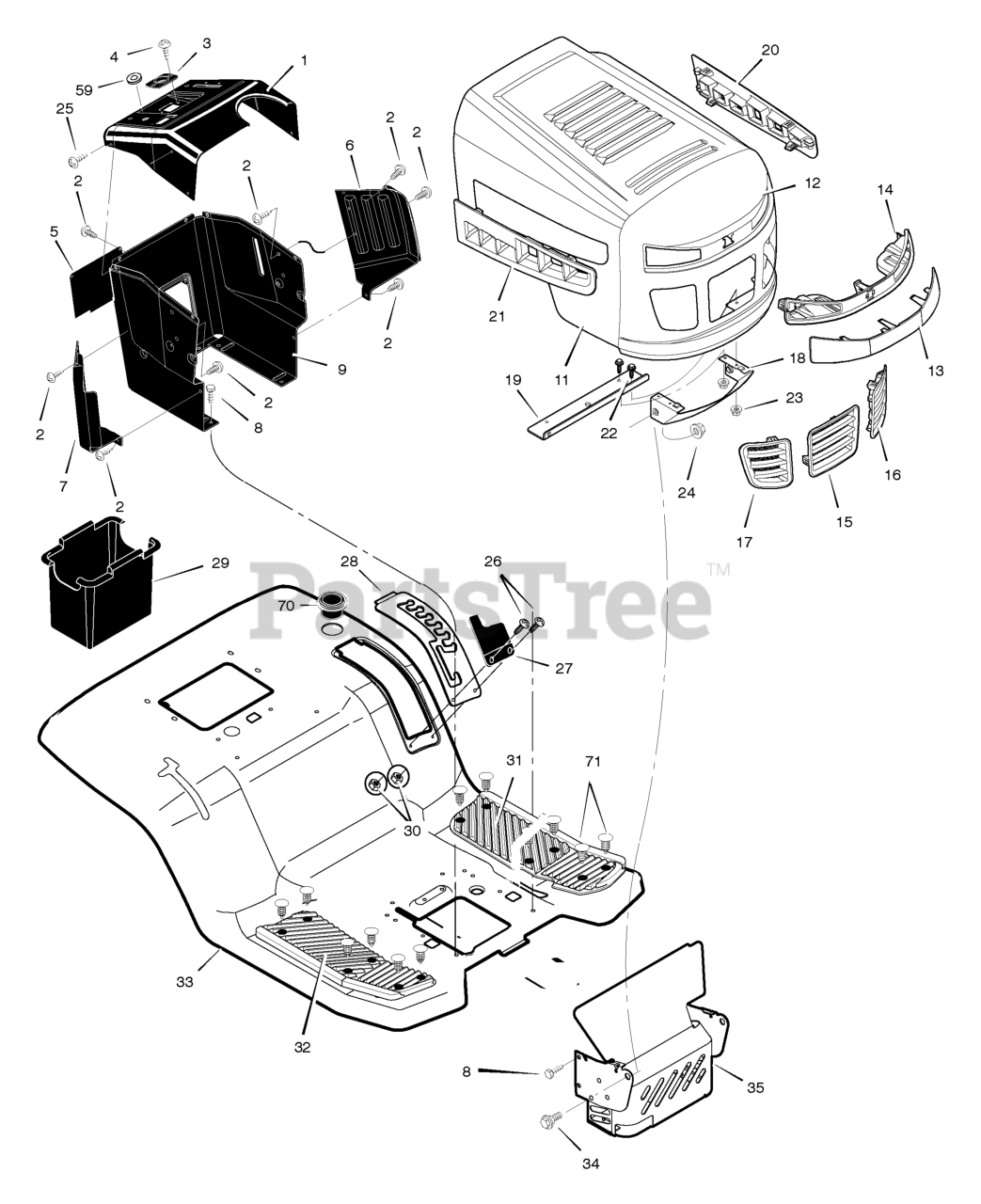

Hood And Dash Parts Diagram

  • Title

1

Murray 1001593E700

Dash

$

$

Currently unavailable

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

3

Murray 1001491MA

Bearing, Upper Steering

$5.49

$

Usually ships in 2-12 days

0

4

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

5

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

6

Murray 095218MA

Panel, Left Side

$38.99

$

Usually ships in 2-12 days

0

7

Murray 095217MA

Panel, Right Side

$38.99

$

Usually ships in 2-12 days

0

8

Murray 26X249MA

Screw

$

$

Not available

9

Murray 095318E701MA

Support, Dash

$155.99

$

Usually ships in 2-12 days

0

11

Murray 1001812E201MA

Hood
(Superseded to 7400263ZYP)

$296.99

$

Usually ships in 2-12 days

0

12

Murray 1001813E201MA

Grille
(Superseded to 7400282ZYP)

$118.99

$

In Stock, only 1 left!

0

13

Murray 1001820MA

Lens

$53.99

$

Usually ships in 2-12 days

0

14

Murray 1001819MA

Housing, Light

$36.99

$

Usually ships in 2-12 days

0

15

Murray 1001816MA

Insert, Center

$10.99

$

Usually ships in 2-12 days

0

16

Murray 1001817MA

Insert, Left

$5.99

$

Usually ships in 2-12 days

0

17

Murray 1001818MA

Insert, Right

$6.49

$

Usually ships in 2-12 days

0

18

Murray 1001799E701MA

Bracket, Lower Pivot

$28.99

$

Usually ships in 2-12 days

0

19

Murray 1001921E701MA

Bracket, Support

$29.99

$

Usually ships in 2-12 days

0

20

Murray 1001814MA

Insert, Left Hood

$30.99

$

Usually ships in 2-12 days

0

21

Murray 1001815MA

Insert, Right Hood

$30.99

$

Usually ships in 2-12 days

0

22

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

23

Murray 015X82MA

Nut

$3.49

$

Usually ships in 2-12 days

0

24

Murray 15X124

Nut

$

$

Not available

25

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

26

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

27

Murray 094680MA

Cover

$7.49

$

In Stock, only 1 left!

0

28

Murray 094194E701MA

Plate, Lift Detent

$50.99

$

In Stock, only 1 left!

0

29

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

30

Murray 015X81MA

Nut

$4.99

$

Usually ships in 2-12 days

0

31

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

32

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

33

Murray 1001555E700

Deck, Seat

$

$

Currently unavailable

34

Murray 009X58MA

Bolt
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

35

Murray 1001920-701

Shield, Heat

$

$

Currently unavailable

59

Murray 1001755MA

Grommet

$3.49

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Beverage

$11.99

$

Usually ships in 2-12 days

0

71

Murray 0913X1

Fastener, Panel - Black

$

$

Currently unavailable
