461005x68A - Murray 46" Garden Tractor (2004) Hood And Dash Parts Diagram

46" Garden Tractor

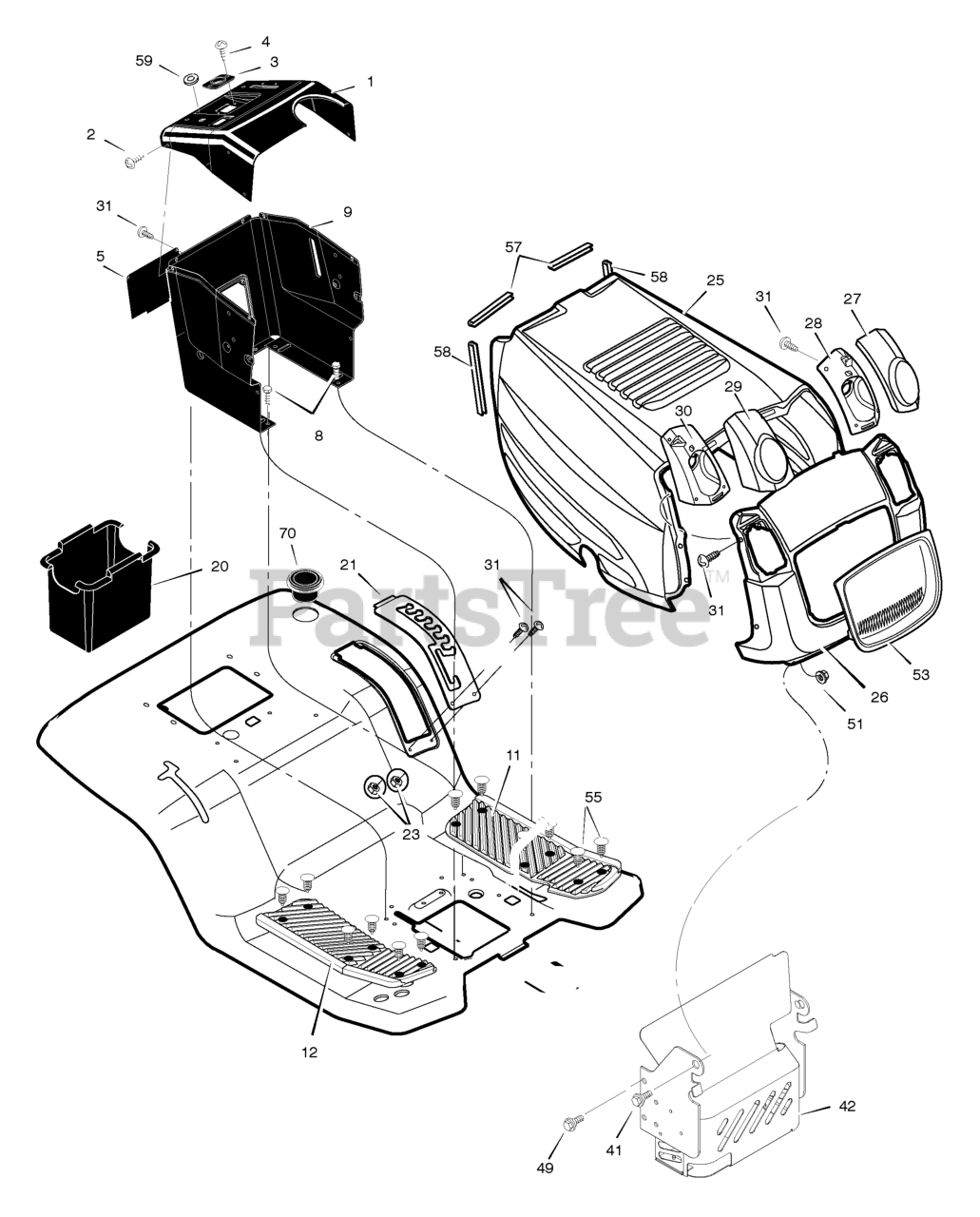

Hood And Dash Parts Diagram

  • Title

1

Murray 1001593E701MA

Dash

$125.99

$

Usually ships in 2-12 days

0

2

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

3

Murray 1001491MA

Bearing, Upper Steering

$5.49

$

Usually ships in 2-12 days

0

4

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

5

Murray 093007E701MA

Panel, Side Access

$31.99

$

Usually ships in 2-12 days

0

8

Murray 26X249MA

Screw

$

$

Not available

9

Murray 095318E701MA

Support, Dash

$155.99

$

Usually ships in 2-12 days

0

11

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

12

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0

20

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

21

Murray 094886E701

Plate, Lift Detent

$53.99

$

Usually ships in 2-12 days

0

23

Murray 015X81MA

Nut

$4.99

$

Usually ships in 2-12 days

0

25

Murray 1001537E700MA

Hood
(Superseded to 1001537E701MA)

$

$

Not available

26

Murray 1001533E701

Grille

$

$

Not available

27

Murray 1001552MA

Lens, Left

$

$

Not available

28

Murray 1001550

Housing, Left Headlamp

$26.99

$

Usually ships in 2-12 days

0

29

Murray 1001551MA

Lens, Right

$11.99

$

Usually ships in 2-12 days

0

30

Murray 1001549

Housing, Right Headlamp

$30.99

$

Usually ships in 2-12 days

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

41

Murray 009X58MA

Bolt
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

42

Murray 1001456E701

Shield, Heat

$

$

Not available

49

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

51

Murray 15X124

Nut

$

$

Not available

53

Murray 1001540MA

Insert, Grille

$34.99

$

In Stock, only 1 left!

0

55

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

57

Murray 1001652MA

Trim, Hood (3.75")
(Superseded to 7102404YP)

$6.99

$

Usually ships in 2-12 days

0

58

Murray 1001653MA

Trim, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0
