461008x692A - Stanley 46" Garden Tractor (2003)

46" Garden Tractor

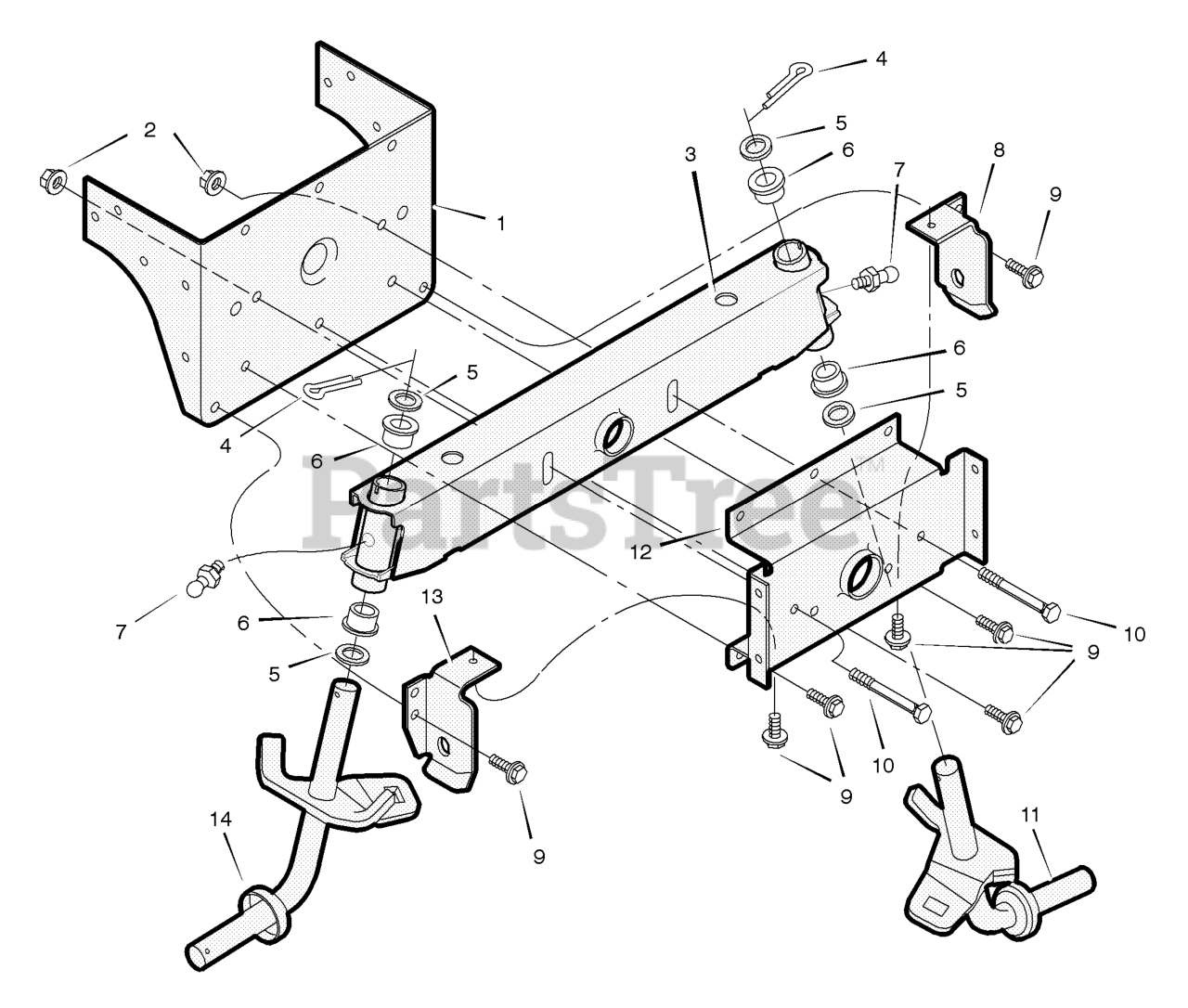

461008x692A - Stanley 46" Garden Tractor (2003) > Parts Diagrams (12) > Front Axle

  • Title
690067E700

1

Bracket, Rear Hanger

Part# 690067E700

OEM Warranty Repair Part for Murray

Not available

15X118MA

2

Nut, Flange

Part# 15X118MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

1001460E700

3

Axle Assembly (with Fitting)

Part# 1001460E700

OEM Warranty Repair Part for Murray

Currently unavailable

030X49MA

4

Pin, Hair

Part# 030X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

017X75MA

5

Washer

Part# 017X75MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

093058MA

6

Bearing, Spindle

Part# 093058MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.01

092530MA

7

Fitting, Lub

Part# 092530MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.49

690198E700

8

Hanger, Left Deck

Part# 690198E700

OEM Warranty Repair Part for Murray

Currently unavailable

26X249MA

9

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

01X146MA

10

Bolt

Part# 01X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

690179E701MA

11

Spindle Assembly, Left

Part# 690179E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $42.00

094007E701MA

12

Hanger, Axle

Part# 094007E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $26.78

690199E701MA

13

Hanger, Right Deck

Part# 690199E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $32.67

690178E701MA

14

Spindle Assembly, Right

Part# 690178E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $42.00
