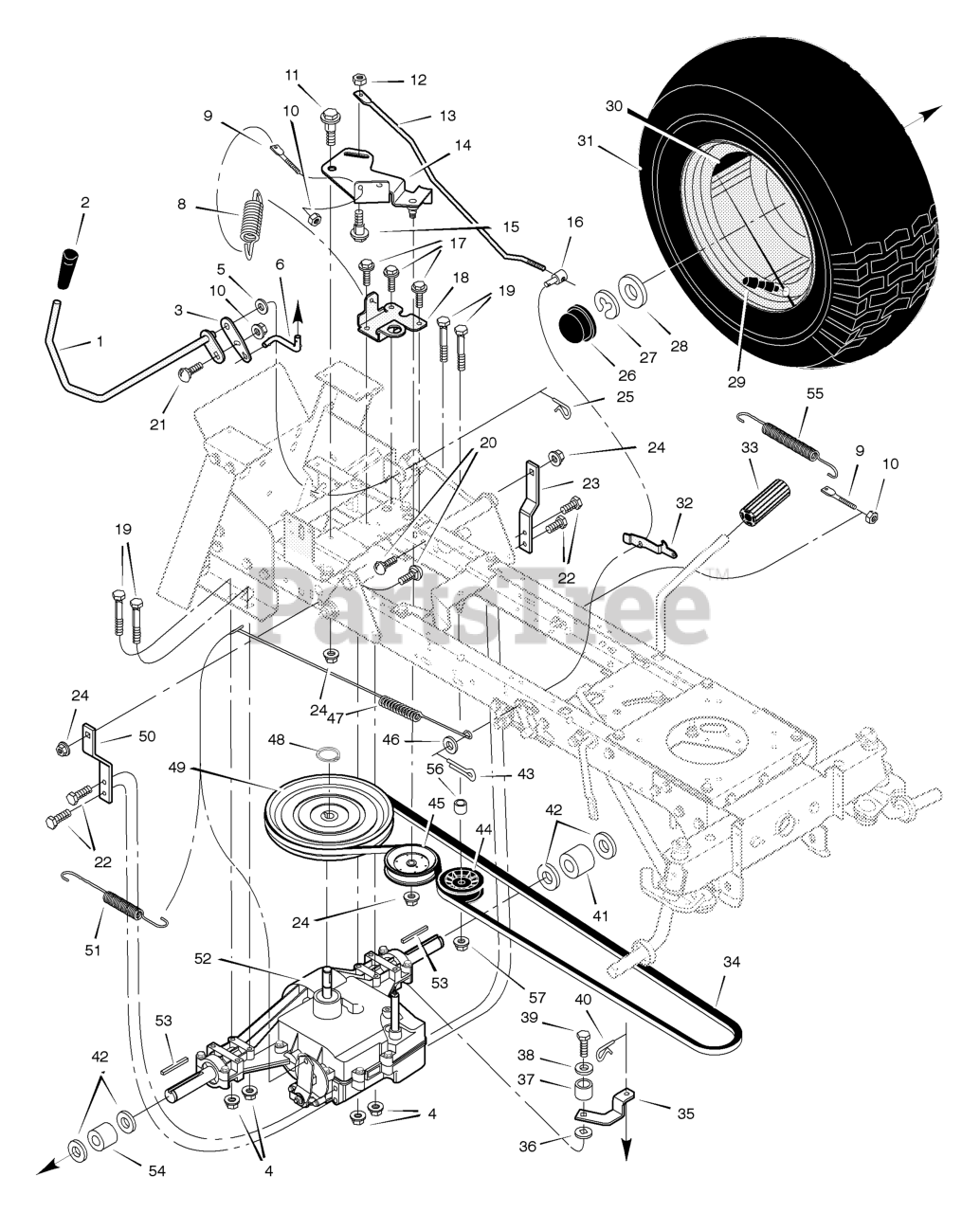

461008x692A - Stanley 46" Garden Tractor (2003) > Parts Diagrams (12) > Motion Drive

  • Title
690366  Z

1

Lever, Shift

Part# 690366 Z

OEM Warranty Repair Part for Murray

Currently unavailable

092697MA

2

Grip

Part# 092697MA (Superseded to 1753233YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.58

690131  Z

3

Plate, Adjusting

Part# 690131 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X88MA

4

Nut

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

17X103MA

5

Washer

Part# 17X103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

690130  Z

6

Link, Shift

Part# 690130 Z

OEM Warranty Repair Part for Murray

Currently unavailable

165X116MA

8

Spring, Extension

Part# 165X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.72

094042  Z

9

Stud, Spring

Part# 094042 Z

Not available

015X79MA

10

Nut

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

009X39MA

11

Bolt, Shoulder

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.43

015X89MA

12

Nut

Part# 015X89MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

094041  Z

13

Rod, Clutch

Part# 094041 Z

OEM Warranty Repair Part for Murray

Currently unavailable

690364  Z

14

Arm Assembly, Idler

Part# 690364 Z

OEM Warranty Repair Part for Murray

Currently unavailable

009X54MA

15

Bolt, Shoulder

Part# 009X54MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.91

094815

16

Nut, Adjusting

Part# 094815

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.97

26X249MA

17

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

690070E700

18

Bracket, Spring Mount

Part# 690070E700

OEM Warranty Repair Part for Murray

Not available

01X155MA

19

Bolt

Part# 01X155MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.24

002X78

20

Bolt, Carriage

Part# 002X78 (Superseded to 002X78MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

002X53MA

21

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

26X216MA

22

Bolt

Part# 26X216MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.90

690081E700

23

Bracket, Left Torque

Part# 690081E700

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $12.89

015X84MA

24

Nut

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

0031X4MA

25

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

094618MA

26

Cap, Hub

Part# 094618MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

011X23MA

27

E-Ring

Part# 011X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

17X193MA

28

Washer

Part# 17X193MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

024373MA

29

Stem, Valve

Part# 024373MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.94

093263010

30

Wheel and Tire

Part# 093263010

OEM Warranty Repair Part for Murray

Not available

091923MA

31

Tire *

Part# 091923MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $101.68

407049MA

--

Tube

Part# 407049MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $52.85

094045  Z

32

Latch, Parking Brake

Part# 094045 Z

OEM Warranty Repair Part for Murray

Currently unavailable

021544MA

33

Pedal

Part# 021544MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.93

037X68MA

34

Belt, Drive

Part# 037X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $41.83

690129  Z

35

Yoke, Shift

Part# 690129 Z

OEM Warranty Repair Part for Murray

Currently unavailable

17X148MA

36

Washer, Square

Part# 17X148MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.44

091889

37

Pilot, Support

Part# 091889

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

017X38MA

38

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

06X105MA

39

Capscrew

Part# 06X105MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

0031X6MA

40

Pin, Hair

Part# 0031X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690213  Z

41

Spacer, Left

Part# 690213 Z

OEM Warranty Repair Part for Murray

Currently unavailable

17X118  Z

42

Washer

Part# 17X118 Z (Superseded to 17X118ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

030X20MA

43

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.80

690410MA

44

Pulley, V Idler

Part# 690410MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.35

023339MA

45

Pulley, Backside Idler

Part# 023339MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $22.05

17X169MA

46

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.96

165X115MA

47

Spring, Brake

Part# 165X115MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.87

0011X7MA

48

Ring, Retainer

Part# 0011X7MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

690181MA

49

Pulley, Drive

Part# 690181MA

OEM Warranty Repair Part for Murray

Not available

690080E700

50

Bracket, Right Torque

Part# 690080E700

OEM Warranty Repair Part for Murray

Not available

165X92MA

51

Spring, Extension

Part# 165X92MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.56

-----

52

Transmission *

Part# -----

Not available

024039MA

53

Key, Square

Part# 024039MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.79

690214  Z

54

Spacer, Right

Part# 690214 Z

OEM Warranty Repair Part for Murray

Currently unavailable

165X133MA

55

Spring, Extension

Part# 165X133MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.27

690369MA

56

Spacer

Part# 690369MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

015X98MA

57

Nut

Part# 015X98MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70
