461008x692A - Stanley 46" Garden Tractor (2003)

46" Garden Tractor

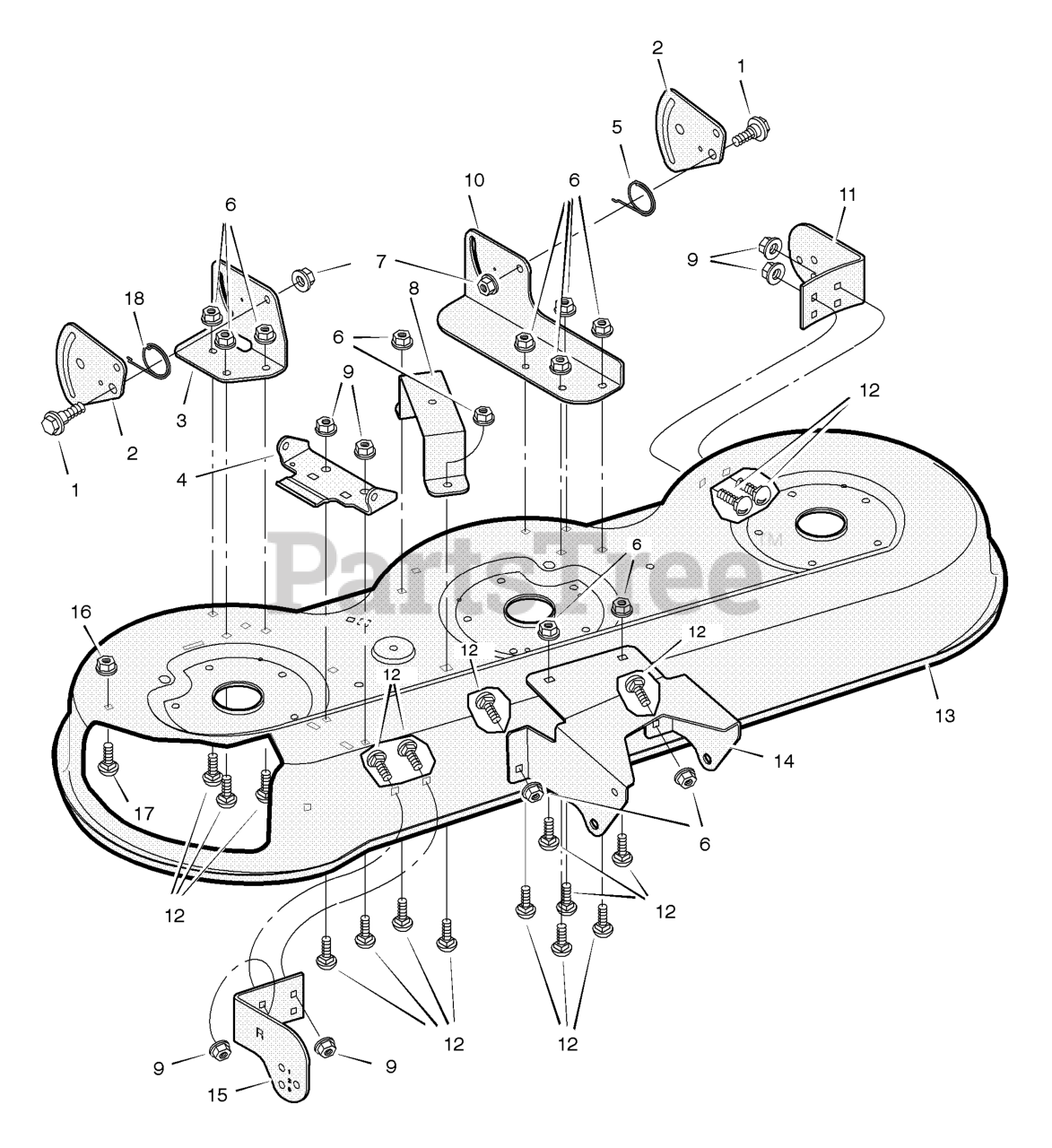

461008x692A - Stanley 46" Garden Tractor (2003) > Parts Diagrams (12) > Mower Housing

  • Title
009X51MA

1

Bolt, Shoulder

Part# 009X51MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

690128E701

2

Plate, Suspension

Part# 690128E701

OEM Warranty Repair Part for Murray

Currently unavailable

094598E700

3

Bracket, Right Rear

Part# 094598E700

OEM Warranty Repair Part for Murray

Currently unavailable

092014E700

4

Bracket, Hinge

Part# 092014E700

OEM Warranty Repair Part for Murray

Currently unavailable

166X43MA

5

Spring, Left

Part# 166X43MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

015X79MA

6

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

015X84MA

7

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

094601E701

8

Bracket, Bell Crank

Part# 094601E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.67

015X88MA

9

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

094600E700MA

10

Bracket, Left Lifter

Part# 094600E700MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $20.24

094919E701MA

11

Bracket, Left Gauge Wheel

Part# 094919E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $19.83

002X53MA

12

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

690204E701MA

13

Housing, Blade

Part# 690204E701MA

OEM Warranty Repair Part for Murray

Not available

094997SEMA

14

Bracket, Front Deck

Part# 094997SEMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $45.21

094918E700

15

Bracket, Right Gauge Wheel

Part# 094918E700

OEM Warranty Repair Part for Murray

Currently unavailable

028X64MA

16

Retainer

Part# 028X64MA

OEM Warranty Repair Part for Murray

Not available

002X74MA

17

Bolt, Carriage

Part# 002X74MA (Superseded to 703185)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

166X42MA

18

Spring, Right

Part# 166X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33
