46103x92A - Murray 46" Garden Tractor (1999) Blade Drive Parts Diagram

46" Garden Tractor

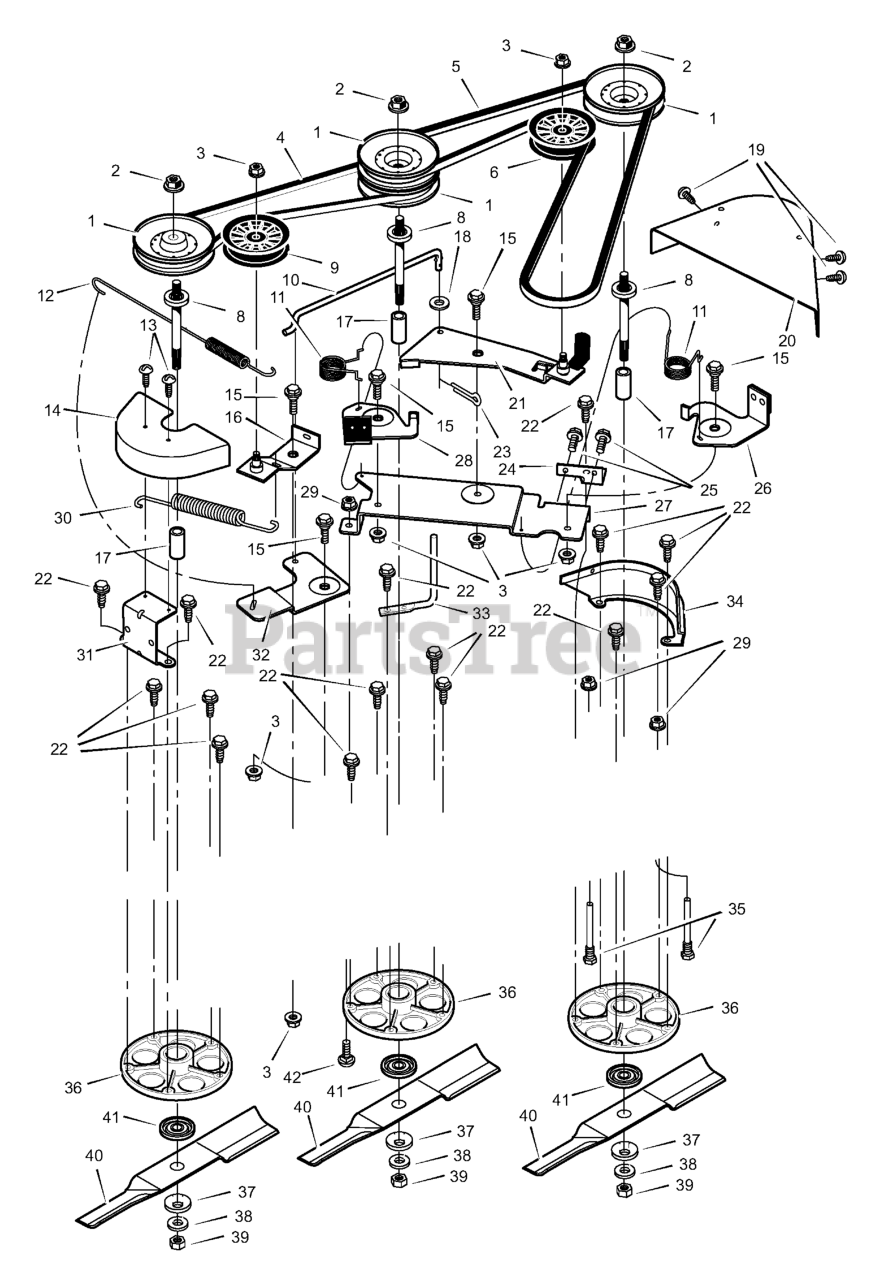

Blade Drive Parts Diagram

  • Title

1

Murray 094592MA

Pulley
(Superseded to 95309MA)

$32.99

$

Usually ships in 2-12 days

0

2

Murray 15X121

Nut

$9.99

$

In Stock, only 1 left!

0

3

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 037X66MA

Belt, Secondary

$24.99

$

In Stock, Qty 9

0

5

Murray 037X96MA

Belt, Primary

$50.99

$

In Stock, only 1 left!

0

6

Murray 091801

Pulley, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 7

0

8

Murray 094129

Jackshaft

$21.99

$

In Stock, only 2 left!

0

9

Murray 091590

Pulley, Idler

$28.99

$

In Stock, only 1 left!

0

10

Murray 094606 Z

Link, Bell Crank

$

$

Currently unavailable

11

Murray 166X41MA

Spring

$4.99

$

In Stock, only 1 left!

0

12

Murray 165X138MA

Spring

$15.99

$

In Stock, only 1 left!

0

13

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

14

Murray 094607E700

Cover, Right Pulley

$

$

Currently unavailable

15

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

16

Murray 094639E700

Arm Assembly, Idler

$

$

Currently unavailable

17

Murray 094130MA

Spacer

$5.99

$

In Stock, only 3 left!

0

18

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

20

Murray 094645E700

Cover, Left Pulley

$

$

Currently unavailable

21

Murray 094644E700

Arm Assembly, Idler

$

$

Currently unavailable

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

24

Murray 094602E700

Bracket, Brake Plate

$

$

Currently unavailable

25

Murray 26X249MA

Screw

$

$

Not available

26

Murray 094640E700

Brake Assembly, Left

$

$

Currently unavailable

27

Murray 094596E700

Plate, Brake Arm

$

$

Currently unavailable

28

Murray 094641E700

Brake Assembly, Center

$

$

Currently unavailable

29

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Murray 165X79MA

Spring

$6.49

$

In Stock, Qty 10

0

31

Murray 092140E700

Bracket, Cover

$

$

Currently unavailable

32

Murray 094603E700

Bell Crank

$

$

Currently unavailable

33

Murray 092116 Z

Guide, Belt

$

$

Currently unavailable

34

Murray 690221E700

Bracket, Pulley Cover

$7.49

$

Usually ships in 2-12 days

0

35

Murray 091754 Z

Guide, Belt

$

$

Currently unavailable

36

Murray 092574

Housing, Jackshaft

$

$

Currently unavailable

37

Murray 17X166MA

Washer

$13.99

$

In Stock, Qty 6

0

38

Murray 17X165MA

Washer

$16.99

$

In Stock, Qty 5

0

39

Murray 15X100MA

Nut, Blade

$3.99

$

In Stock, Qty 6

0

40

Murray 056631E701MA

Blade

$19.99

$

In Stock, Qty 20+

0

41

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, Qty 10

0

42

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0
