46106x89A - Yard King 46" Garden Tractor (1999) Mower Housing Suspension Parts Diagram

46" Garden Tractor

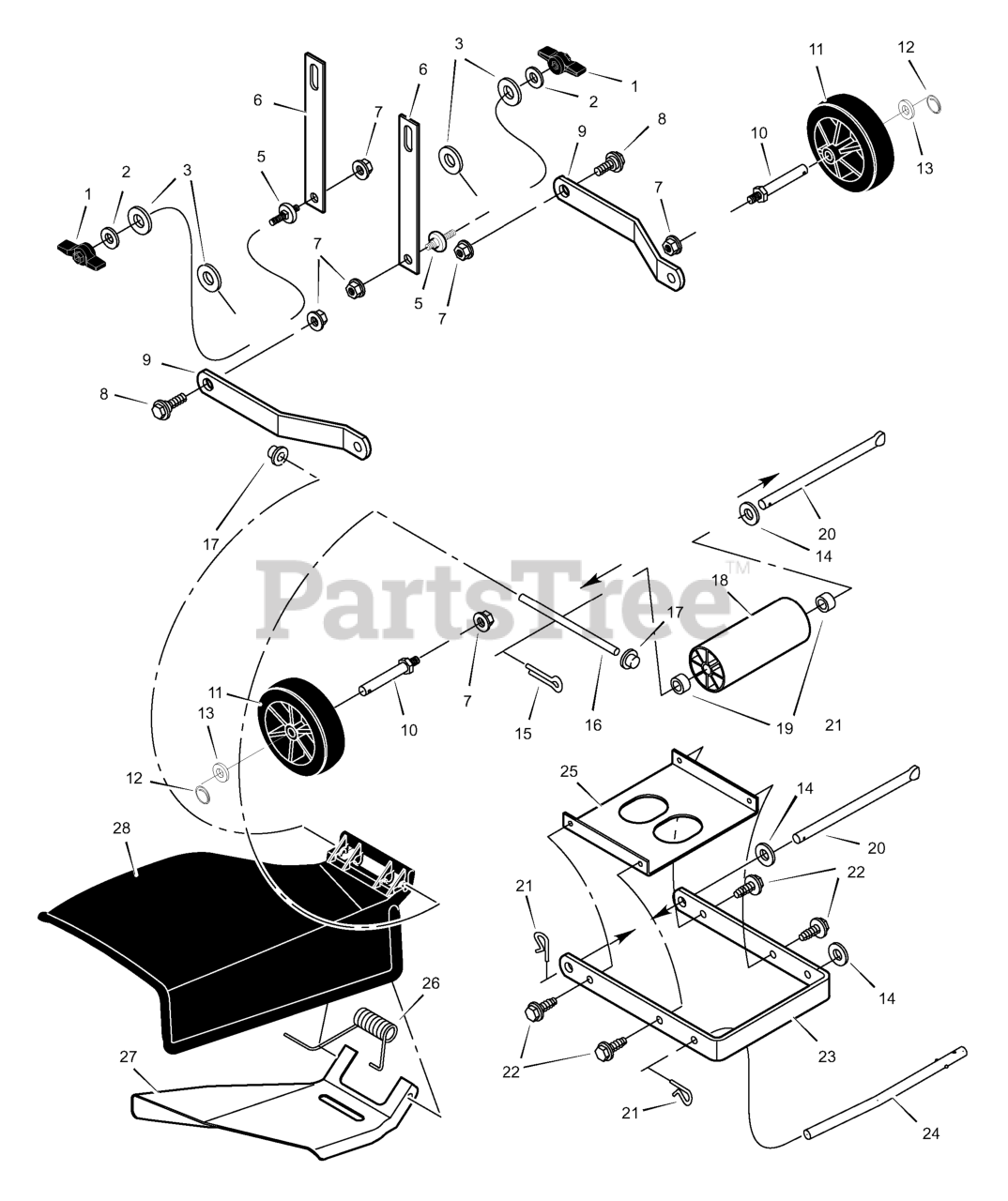

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

2

$

$

Currently unavailable

3

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 10

0

5

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

6

Murray 690121E700

Link, Lift

$

$

Currently unavailable

7

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

9

Murray 690184E700

Bracket, Rear Suspension

$

$

Currently unavailable

10

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 2 left!

0

11

$15.99

$

In Stock, Qty 10

0

12

Murray 031X11MA

Pin, Hair

$4.49

$

In Stock, only 2 left!

0

13

$

$

Currently unavailable

14

$4.99

$

In Stock, Qty 7

0

15

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

16

Murray 092159ZMA

Rod, Deflector

$

$

Not available

17

Murray 028X23MA

Push-On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 16

0

18

$32.99

$

Usually ships in 2-12 days

0

19

$12.99

$

In Stock, only 2 left!

0

20

Murray 094996MA

Rod, Deck Suspension

$

$

Not available

21

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

$

$

Not available

23

Murray 094765E700

Bracket, Front Suspension

$

$

Currently unavailable

24

Murray 094158ZMA

Rod, Hanger

$28.99

$

In Stock, only 1 left!

0

25

Murray 094604E700

Stiffener

$

$

Currently unavailable

26

$9.49

$

Usually ships in 2-12 days

0

27

Murray 092103E700

Deflector, Inside

$

$

Currently unavailable

28

Murray 092100MA

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0
