46106x89A - Yard King 46" Garden Tractor (1999) Sector Gear Parts Diagram

46" Garden Tractor

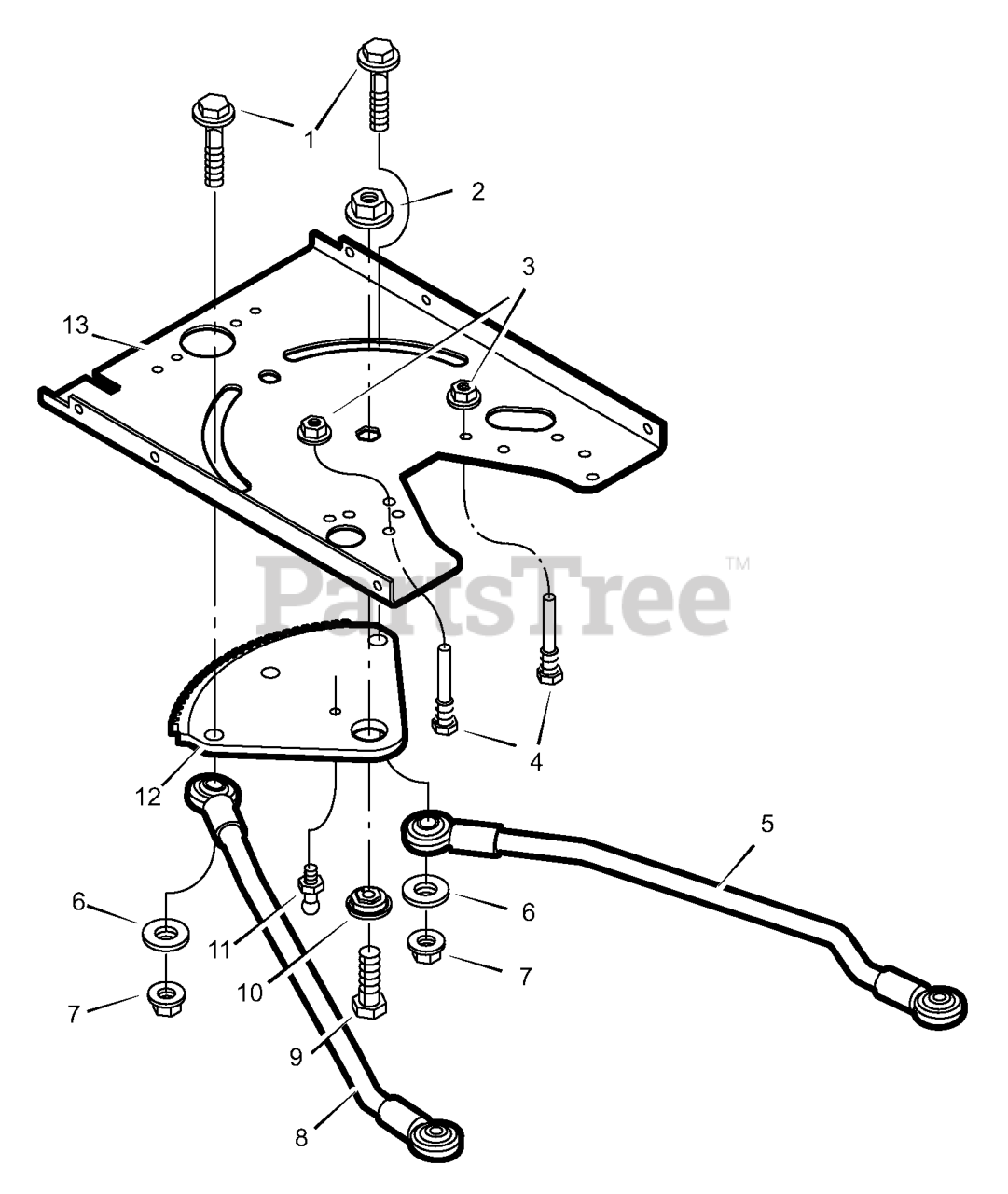

Sector Gear Parts Diagram

  • Title

1

Murray 009X62MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

2

Murray 15X113MA

Nut, Lock

$4.49

$

Usually ships in 2-12 days

0

3

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

4

Murray 094384MA

Guide, Screw

$4.49

$

Usually ships in 2-12 days

0

5

Murray 690146E700

Link, Left Drag

$

$

Currently unavailable

6

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

7

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 690145E700

Link, Right Drag

$

$

Currently unavailable

9

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

10

Murray 690180MA

Bearing, Sector Gear

$

$

Not available

11

Murray 092530MA

Fitting, Lub

$

$

Not available

12

Murray 690147E700

Gear, Sector

$

$

Currently unavailable

13

Murray 690551E700

Plate, Steering

$

$

Currently unavailable
