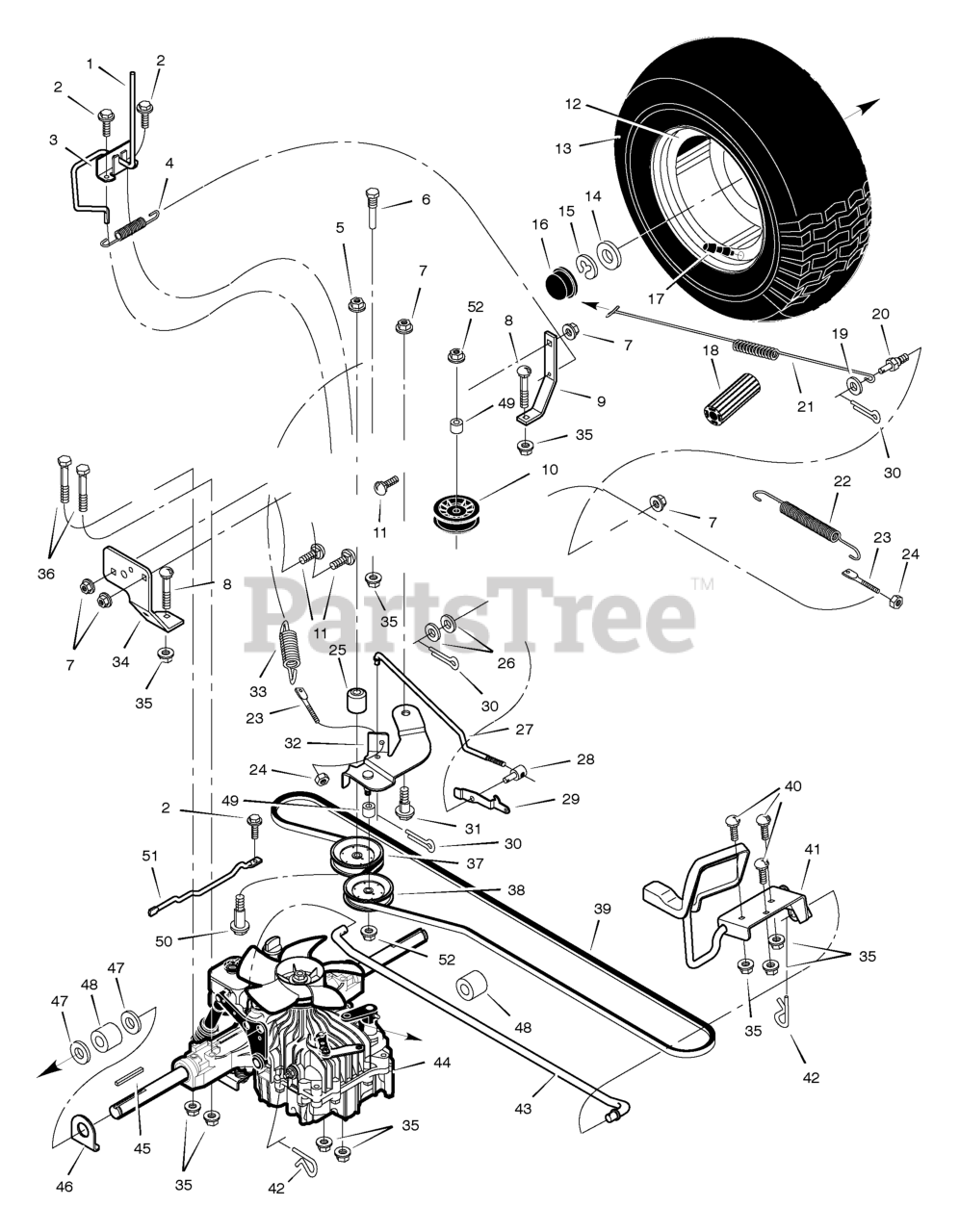

461603x48A - Briggs & Stratton 46" Garden Tractor (2003) (Mills) Motion Drive Parts Diagram

46" Garden Tractor

Motion Drive Parts Diagram

  • Title

1

Murray 690234MA

ROD, Clutch

$

$

Not available

2

Murray 26X249MA

CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

3

Murray 1001214 Z

Bracket, Disconnect

$

$

Currently unavailable

4

Murray 165X136

Spring - Extension

$5.49

$

Usually ships in 2-12 days

0

5

Murray 015X41MA

NUT, Lock, 1/2-13

$5.49

$

Usually ships in 2-12 days

0

6

Murray 020619MA

Screw, Guide

$4.49

$

Usually ships in 2-12 days

0

7

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 002X88MA

BOLT, CARRIAGE - 5/16-18 X 2.00

$3.49

$

In Stock, only 1 left!

0

9

Murray 690231E701

Bracket, Torque

$27.99

$

Usually ships in 2-12 days

0

10

Murray 690393

Clamp-Casing

$34.99

$

Usually ships in 2-12 days

0

11

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

12

Murray 093263650

Assembly, Wheel and Tire

$376.99

$

Usually ships in 2-12 days

0

13

Murray 407920

Tire Only *

Note: (*)

$376.99

$

Usually ships in 2-12 days

0

14

Murray 17X193MA

Washer

$3.99

$

In Stock, only 1 left!

0

15

Murray 011X23MA

E-RING, Retainer

$4.49

$

In Stock, only 4 left!

0

16

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

17

Murray 024373MA

VALVE STEM & CAP

$

$

Not available

18

Murray 021544MA

PEDAL, Clutch and Brake
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

19

Murray 17X169MA

WASHER, Flat, 1
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

20

Murray 690243

Base-Air Cleaner Primer

$

$

Not available

21

Murray 165X135

Spring, Extension

$17.99

$

Usually ships in 2-12 days

0

22

Murray 165X133MA

SPRING, EXTENSION LIFT

$20.99

$

Usually ships in 2-12 days

0

23

Murray 094042ZMA

STUD, Spring Mounting

$4.49

$

Usually ships in 2-12 days

0

24

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

25

Murray 690235

SEAL-VALVE
(Superseded to 690968)

$10.99

$

In Stock, only 1 left!

0

26

Murray 017X48MA

WASHER, Flat, 3/8

$8.49

$

Usually ships in 2-12 days

0

27

Murray 690234

Gasket-Carburetor Plate

$

$

Not available

28

Murray 094815ZMA

NUT, Adjusting

$21.99

$

Usually ships in 2-12 days

0

29

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

30

Murray 030X20MA

COTTERPIN, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

31

Murray 009X39MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.49

$

In Stock, Qty 10

0

32

Murray 690416 Z

Assembly, Idler Arm

$

$

Currently unavailable

33

Murray 165X116MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

34

Murray 690240E701

Bracket, Torque

$49.99

$

Usually ships in 2-12 days

0

35

Murray 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Murray 01X155MA

BOLT, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

37

Murray 023339MA

Pulley, Backside Idler

$26.99

$

Usually ships in 2-12 days

0

38

Murray 690410MA

PULLEY, Idler, 3"

$19.99

$

In Stock, only 1 left!

0

39

Murray 037X97MA

Belt, Drive

$62.99

$

In Stock, only 1 left!

0

40

Murray 002X53MA

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

41

Murray 1001231E701

Pedal Assembly, Hydro

$61.99

$

Usually ships in 2-12 days

0

42

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

Murray 690241

Spring-Governor

$6.99

$

Usually ships in 2-12 days

0

44

Transaxle, Hydro **

$

$

Not available

45

Murray 024039MA

Key, Square

$4.49

$

Usually ships in 2-12 days

0

46

Murray 690242E701

Washer, Thrust

$9.99

$

Usually ships in 2-12 days

0

47

Murray 17X118 Z

WASHER, 1-1.3 16G FLT
(Superseded to 17X118ZMA)

$3.49

$

In Stock, only 2 left!

0

48

Murray 690419 Z

Spacer

$

$

Currently unavailable

49

Murray 690369MA

SPACER, 1/2 in To 17 mm

$5.99

$

In Stock, only 4 left!

0

50

Murray 01X165

Bolt

$3.99

$

Usually ships in 2-12 days

0

51

Murray 690392

SPACER

$10.99

$

Usually ships in 2-12 days

0

52

Murray 015X98MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
