461603x48A - Briggs & Stratton 46" Garden Tractor (2003) (Mills) Rear Frame Assembly Parts Diagram

46" Garden Tractor

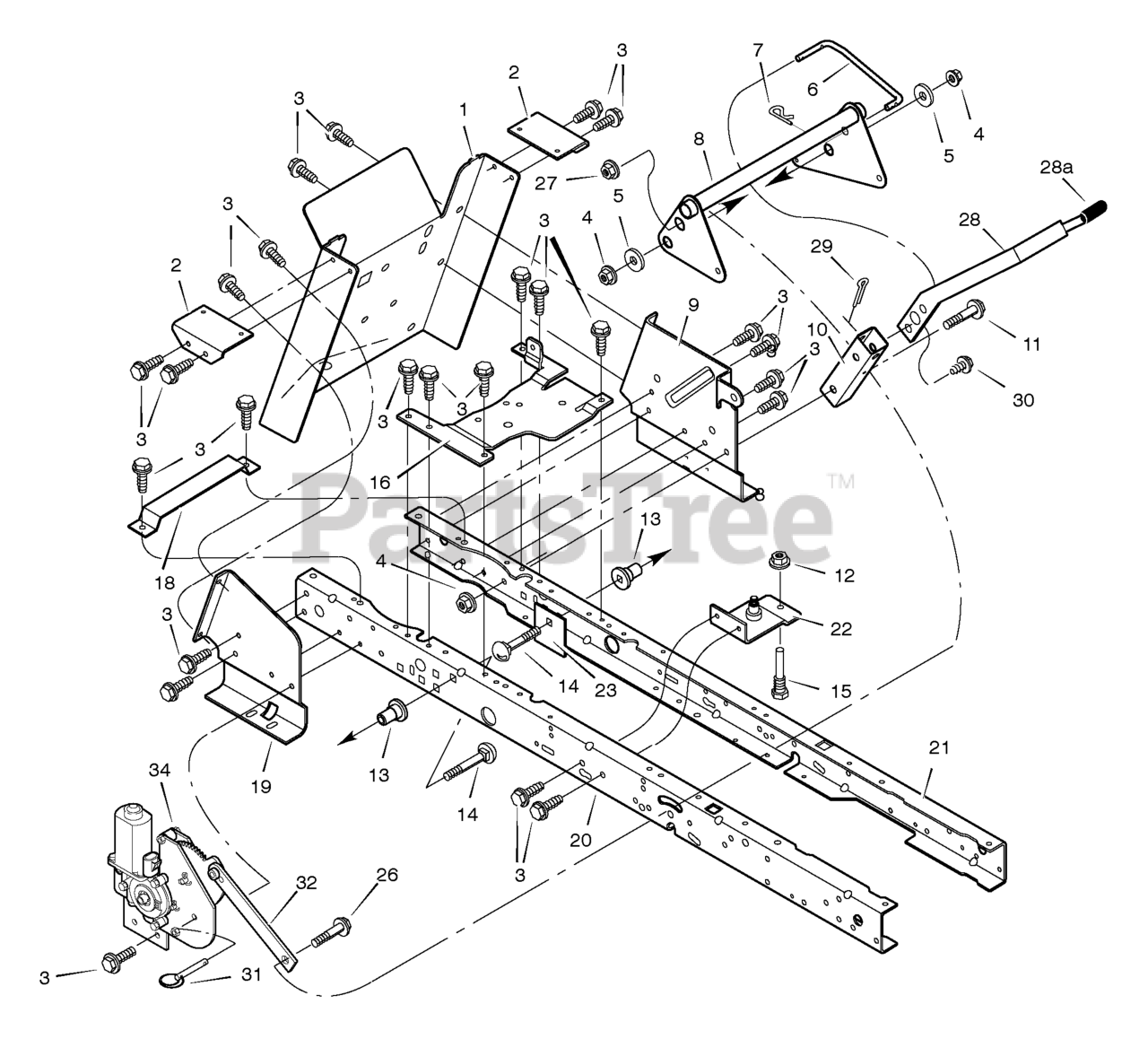

Rear Frame Assembly Parts Diagram

  • Title

1

Murray 690094E701

Frame, Rear Hitch

$

$

Not available

2

Murray 690077E700

Bracket, Seat Deck

$23.99

$

Usually ships in 2-12 days

0

3

Murray 26X249MA

Screw

$

$

Not available

4

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

6

Murray 690550E701MA

Link, Lift Handle
(Superseded to 7300921ZYP)

$8.99

$

Usually ships in 2-12 days

0

7

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 1001692E701

Assembly, Lifter

$

$

Currently unavailable

9

Murray 1001691E701

Bracket, Left Transaxle

$

$

Currently unavailable

10

Murray 1001693E701

Bracket, Lift Pivot

$

$

Currently unavailable

11

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

12

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Murray 690151MA

Spacer, Lifter

$6.99

$

Usually ships in 2-12 days

0

14

Murray 002X85MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

15

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

16

Murray 690233E701

Bracket, Stationary Idler

$

$

Currently unavailable

18

Murray 690482E701

Plate

$

$

Not available

19

Murray 690064E700

Bracket, Right Transaxle

$

$

Not available

20

Murray 1001268E701

Frame, Right

$

$

Not available

21

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

22

Murray 690417E701

Bracket, Idler

$

$

Currently unavailable

23

Murray 1001098E701

Plate, Stiffening

$

$

Not available

26

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

27

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

28

Murray 1001673 Z

Indicator, Electric Lift

$

$

Currently unavailable

28A

Murray 1401337

Grip, Electric Lift

$10.99

$

Usually ships in 2-12 days

0

29

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

30

Murray 025X15MA

Screw
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

31

Murray 1001701MA

Pin, Stop

$8.49

$

Usually ships in 2-12 days

0

32

Murray 1001682E700

Link, Bar

$

$

Currently unavailable

34

Murray 1001675MA

Ass'y, Gear Case & Motor

Note: (Included with Ref. No. 32)

$638.99

$

Usually ships in 2-12 days

0
