462707-0100-E1 - Briggs & Stratton Vertical Engine Cam, Crankshaft, Pistons, Valves Parts Diagram

Vertical Engine

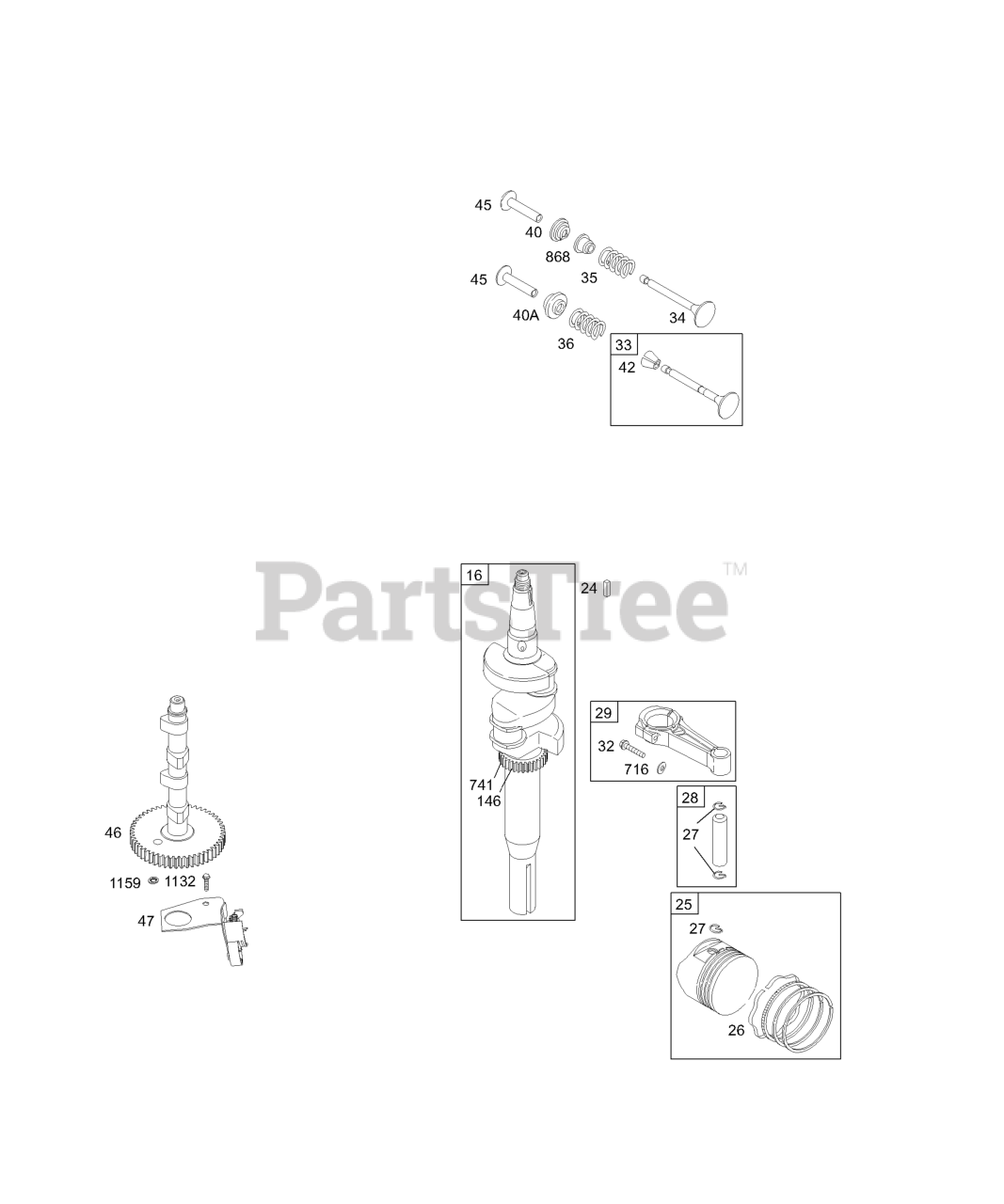

Cam, Crankshaft, Pistons, Valves Parts Diagram

  • Title

16

Briggs & Stratton 690636

Crankshaft

$

$

Not available

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 692272

Piston Assembly

Note: (.010" Oversize)

$

$

Not available

25

Briggs & Stratton 692273

Piston Assembly

Note: (.020" Oversize)

$

$

Not available

25

Briggs & Stratton 692274

Piston Assembly

Note: (.030" Oversize)

$

$

Not available

25

Briggs & Stratton 692271

Piston Assembly
(Superseded to 697069)

Note: (Standard)

$

$

Not available

26

Briggs & Stratton 690166

Ring Set

Note: (.020" Oversize)

$

$

Not available

26

Briggs & Stratton 690168

Ring Set

Note: (.030" Oversize)

$

$

Not available

26

Briggs & Stratton 690162

Ring Set

Note: (Standard)

$73.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 690164

Ring Set

Note: (.010" Oversize)

$

$

Not available

27

Briggs & Stratton 691299

Lock-Piston Pin

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498320

Pin-Piston

Note: (.005" Oversize)

$

$

Not available

28

Briggs & Stratton 498319

Pin-Piston

Note: (Standard)

$19.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 394306

Rod-Connecting

Note: (Standard)

$103.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 397158

Rod-Connecting

Note: (.020" Undersize)

$

$

Not available

32

Briggs & Stratton 691133

Screw

Note: (Connecting Rod)

$5.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 691794

Valve-Exhaust

$

$

Not available

34

Briggs & Stratton 691804

Valve-Intake

$

$

Not available

35

Briggs & Stratton 691605

Spring-Valve

Note: (Intake)

$7.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 691597

Spring-Valve

Note: (Exhaust)

$11.99

$

In Stock, only 3 left!

0

40

Briggs & Stratton 690656

Retainer-Valve

Note: (Intake)

$

$

Not available

40A

Briggs & Stratton 691939

Retainer-Valve

Note: (Exhaust)

$29.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$8.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 691800

Tappet-Valve

$15.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 691161

Camshaft

$

$

Not available

47

Briggs & Stratton 691964

Slinger-Oil

$

$

Not available

146

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

In Stock, only 1 left!

0

716

Briggs & Stratton 220863

Washer

Note: (Connecting Rod)

$4.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691285

Gear-Timing

$

$

Not available

868

Briggs & Stratton 692324

Seal-Valve

Note: (Black)

$

$

Not available

1132

Briggs & Stratton 690353

Screw

Note: (Oil Slinger)

$24.99

$

Usually ships in 2-12 days

0

1159

Briggs & Stratton 690286

Washer
(Superseded to 22152GS)

Note: (Oil Slinger)

$2.99

$

Usually ships in 2-12 days

0
